1990 Yamaha VK540 (VK540EP) Shroud Diagram

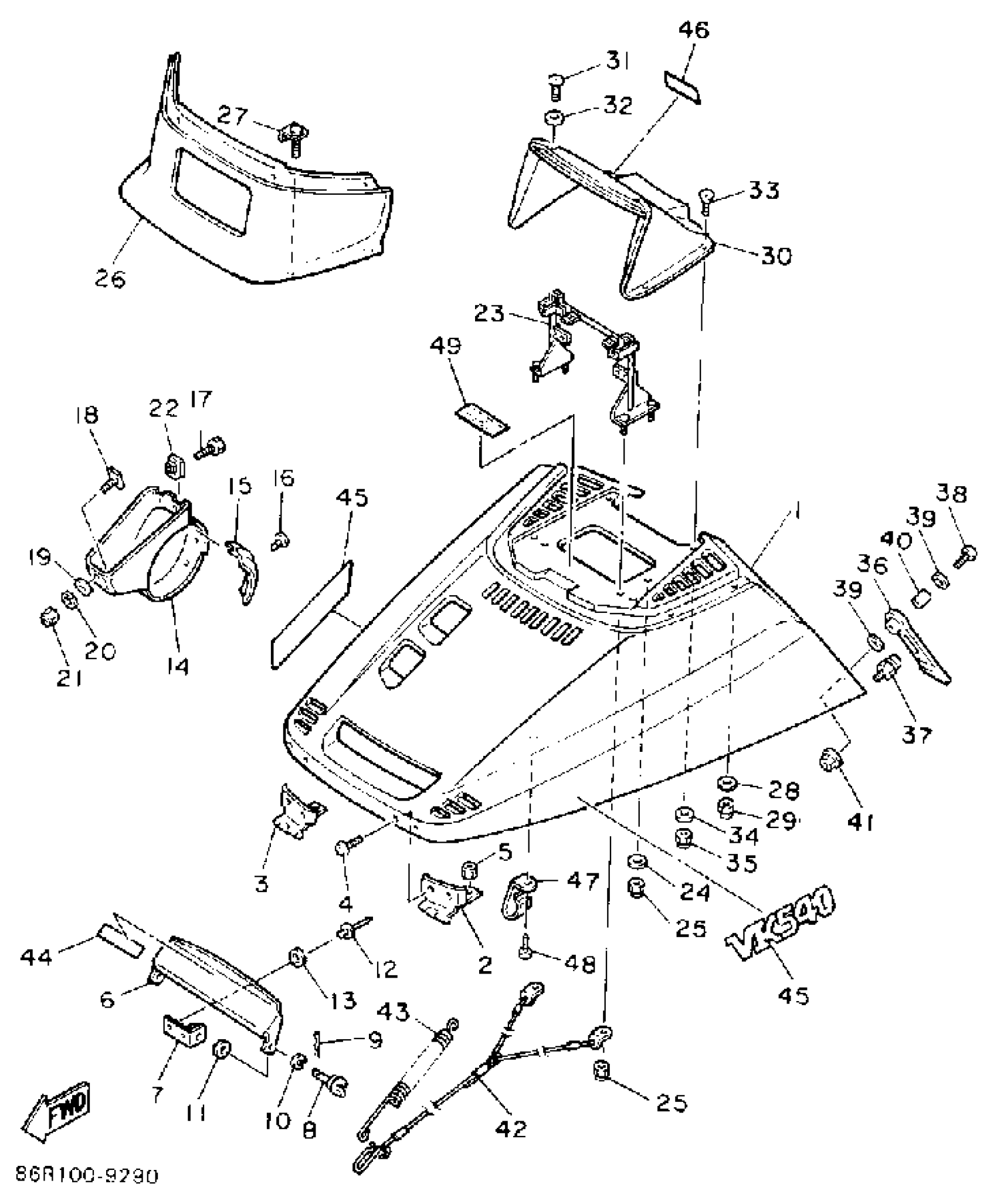

Find the part on the Shroud diagram for your 1990 Yamaha VK540 (VK540EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
SHROUD ASSY
83R-77111-01-00
1
Out of stock
4
SCREW, BIND (705)
98980-06016-00
1
Out of stock
10
YBS67-5 WASHER, SPRING
92990-05100-00
1
Out of stock
12
RIVET, BLIND (8K2)
90267-48079-00
1
Out of stock
26
FAIRING 1
83R-77231-00-00
1
Out of stock
31
SCREW, BINDING
98907-05012-00
—
Out of stock
39
WASHER, PLATE 8221447500
90201-06057-00
—
Out of stock
44
LABEL,WARNING 2
8BE-77762-00-00
1
Out of stock
45
EMBLEM 1
84R-77351-00-00
1
Out of stock
46
EMBLEM 2
84R-77352-00-00
1
Out of stock
49
LABEL, CAUTION
83R-1417E-01-00
1
Out of stock
