1990 Yamaha VK540 (VK540EP) Seat Diagram

← All diagrams

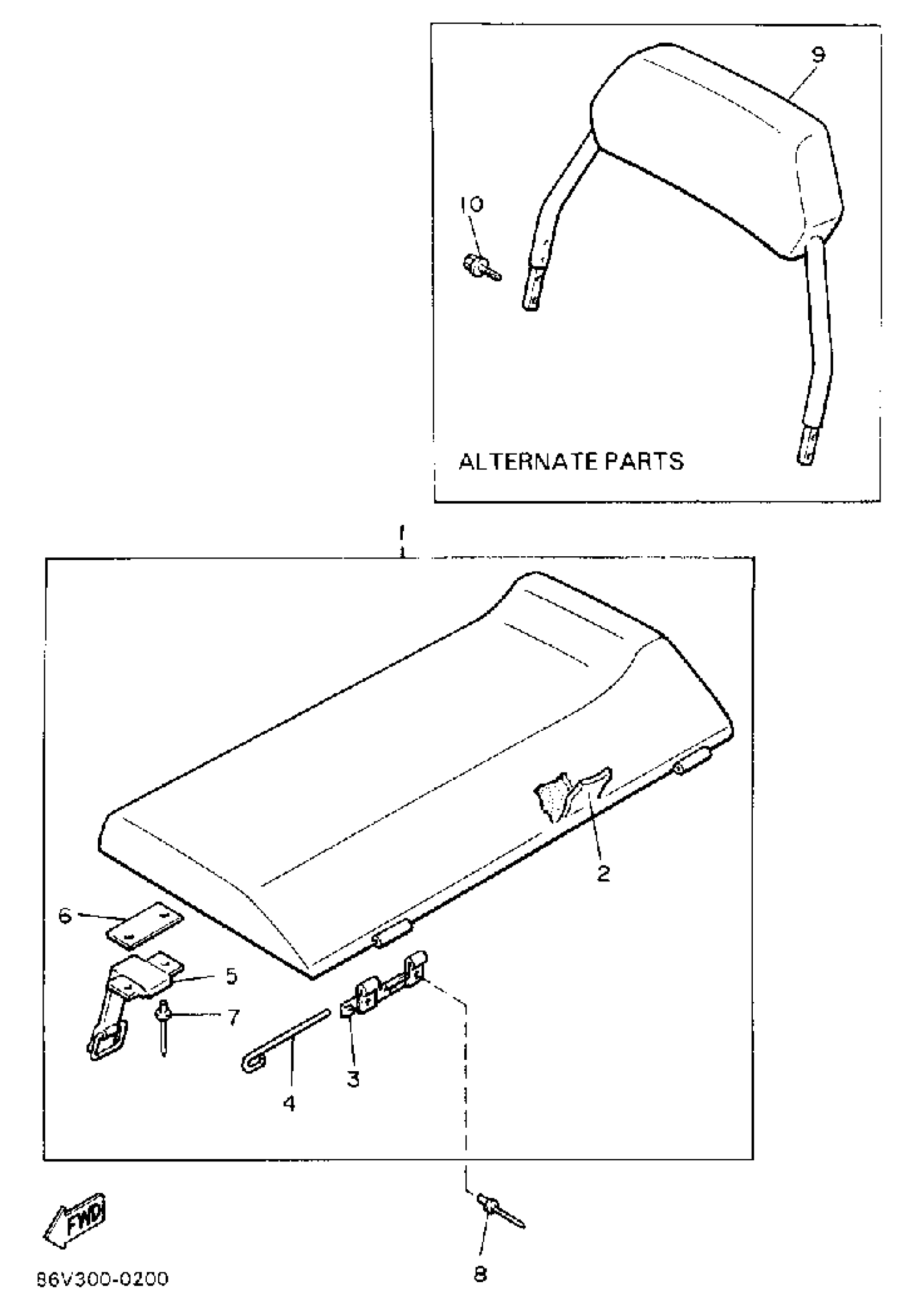

Find the part on the Seat diagram for your 1990 Yamaha VK540 (VK540EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha VK540 (VK540EP) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

86R-24730-00-00

1
Out of stock

2

. COVER, SEAT

84R-24731-00-00

1
Out of stock

3

SPACER 2

83R-24729-00-00

—

$8.18

In stock

4

PIN

86V-77384-00-00

1

$16.40

In stock

5

. BAND, SEAT ASSEMBLYASSEMBLY

83R-W2473-00-00

1
Out of stock

6

. WASHER

83R-24736-00-00

1
Out of stock

7

. RIVET, BLIND (83R)

90267-40133-00

1
Out of stock

8

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

9

SEAT BACK ASSEMBLY

83R-24790-00-00

1
Out of stock

10

BOLT

90109-06757-00

1
Out of stock
