Description

Price

1

HEADLIGHT UNIT ASSY

84R-8430A-A0-00

Unavailable

2

. SPRING, SCREW

51L-84332-00-00

Unavailable

3

HOLDER

3AJ-8431U-00-00

$9.99

4

. NUT, ADJUSTING

51L-84334-00-00

Unavailable

5

. SPRING, REFLECTOR

36Y-84324-00-00

Unavailable

6

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

7

COVER, SOCKET

36Y-84397-00-00

Unavailable

8

COLLAR, BODY FITTING

498-84145-60-00

$6.99

9

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

10

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

11

GEAR UNIT ASSY

83R-8430M-00-00

Unavailable

12

SCREW, TAPPING

97780-40116-00

Unavailable

13

KNOB ASSY

26H-8432M-00-00

Unavailable

14

BOLT

97014-08040-00

$7.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

GROMMET

36Y-84354-00-00

Unavailable

17

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

18

CORD, HEADLIGHT

85R-84359-00-00

Unavailable

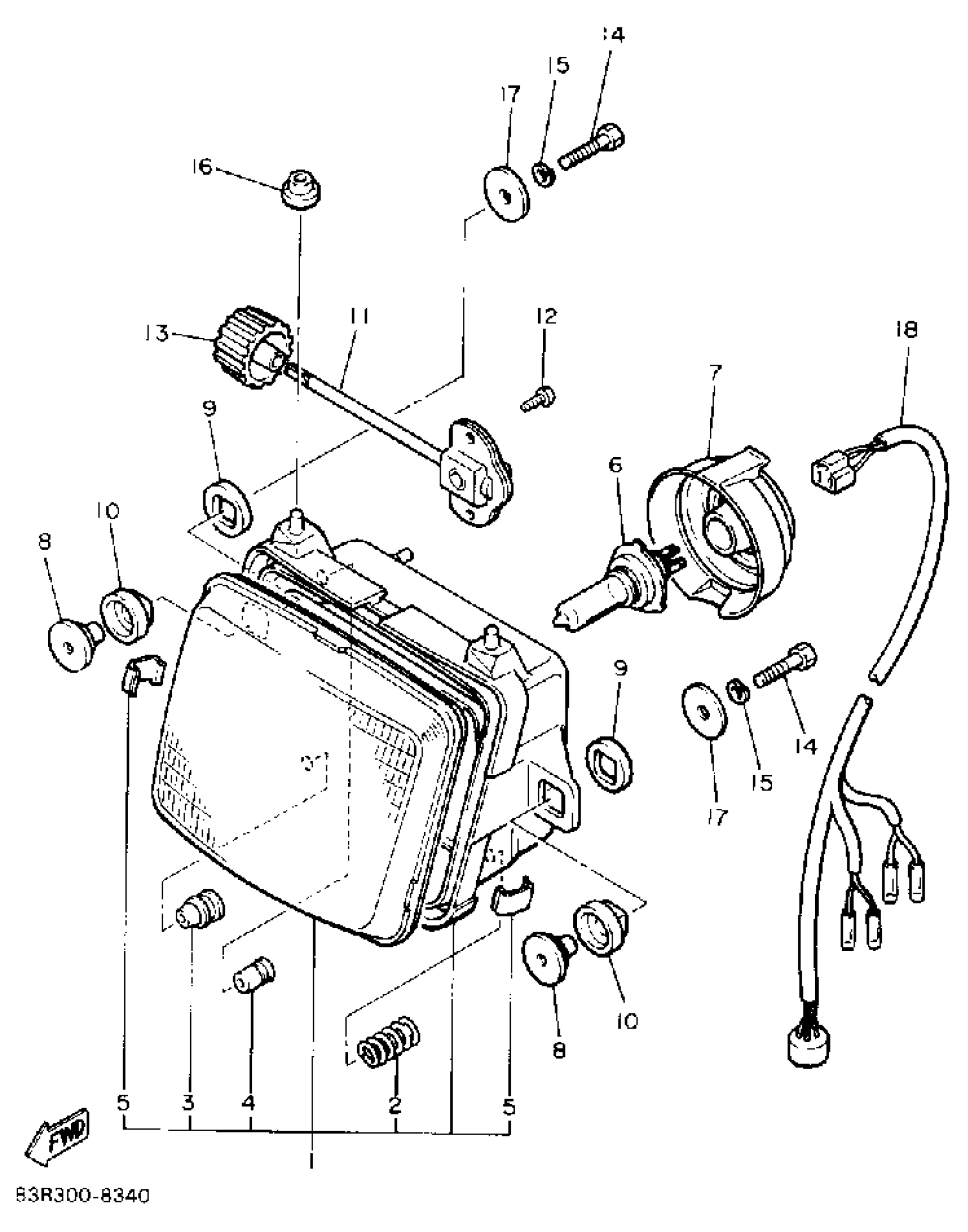

Yamaha VK540EP (VK540) 1990 HEADLIGHT Diagram

HEADLIGHT UNIT ASSY

. SPRING, SCREW

HOLDER

. NUT, ADJUSTING

. SPRING, REFLECTOR

BULB, HEADLIGHT

COVER, SOCKET

COLLAR, BODY FITTING

DAMPER, HEAD LAMP B

DAMPER, HEAD LAMP A

GEAR UNIT ASSY

SCREW, TAPPING

KNOB ASSY

BOLT

YBS67-8 WASHER, SPRING

GROMMET

WASHER, PLATE (5J0)

CORD, HEADLIGHT
