Description

Price

1

ROTOR ASSEMBLY

83R-85550-M0-00

Unavailable

2

BASE ASSY

83R-85560-M0-00

$247.99

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 1

81L-81313-M0-00

$66.99

5

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

. TERMINAL, EARTH 1

8R4-85568-M0-00

Unavailable

8

. TERMINAL, EARTH 2

8R4-85569-M0-00

Unavailable

9

SCREW, PAN HEAD

98517-05030-00

$10.49

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

12

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

COLLAR (1M1)

90387-06553-00

$9.49

16

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

17

SCREW, BIND (705)

98980-06016-00

Unavailable

18

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

19

GEAR, RING

8H8-81891-00-00

Unavailable

20

STAY, RING GEAR

8H8-81895-00-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

23

BOLT(3JP)

97017-06010-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

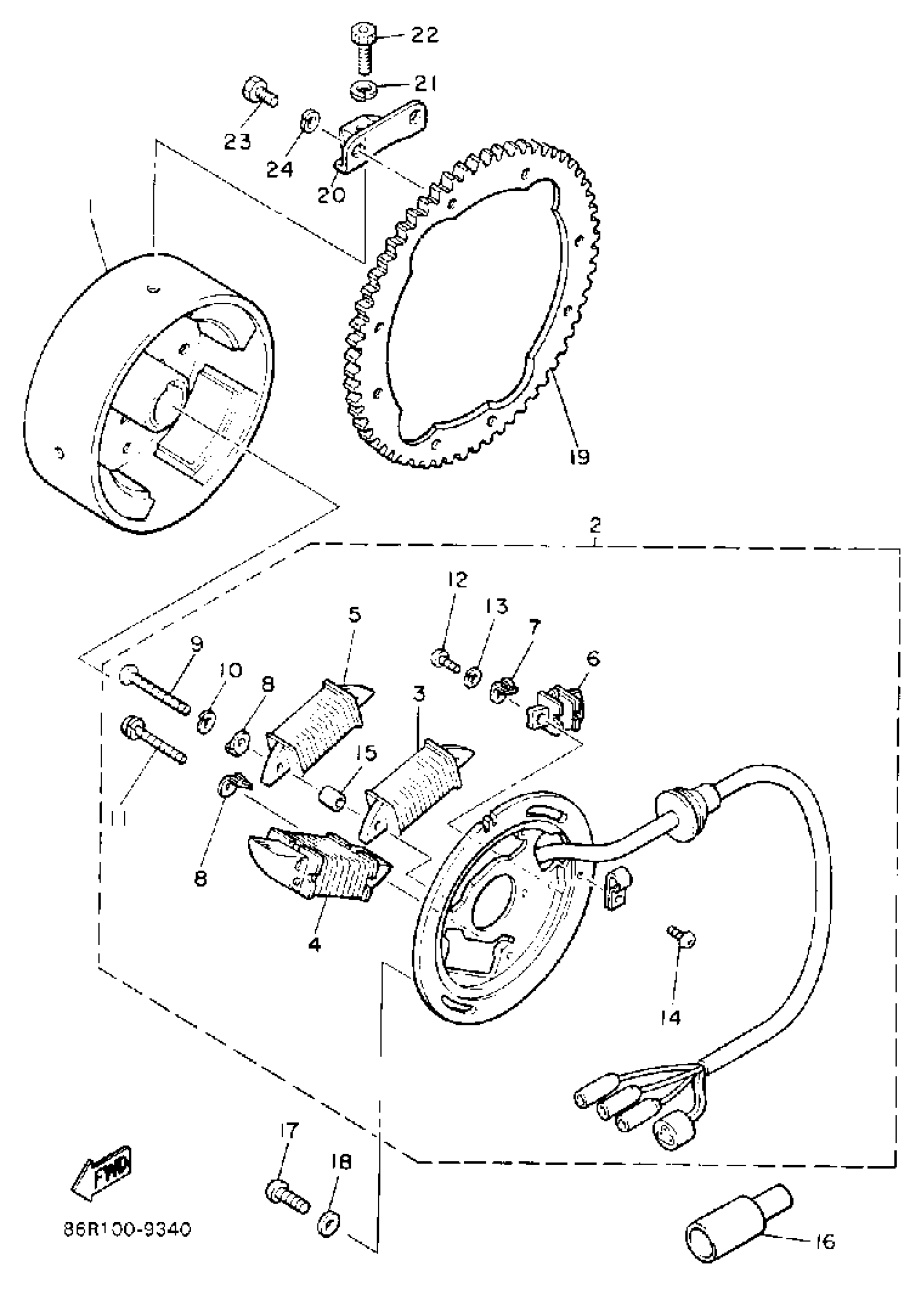

Yamaha VK540EP (VK540) 1990 GENERATOR Diagram

ROTOR ASSEMBLY

BASE ASSY

COIL, CHARGE

COIL, LIGHTING 1

COIL, LIGHTING 2

PULSER ASSY

. TERMINAL, EARTH 1

. TERMINAL, EARTH 2

SCREW, PAN HEAD

YBS67-5 WASHER, SPRING

SCREW, WITH WASHER(81E)

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD (713)

COLLAR (1M1)

COVER, CONNECTER

SCREW, BIND (705)

WASHER, PLATE 6261117600

GEAR, RING

STAY, RING GEAR

YBS67-8 WASHER, SPRING

BOLT, HEX SKT HEADSOCKET HEAD

BOLT(3JP)

WASHER, SPRING
