- VK540EN (VK540) 1989
TRACK SUSPENSION 1

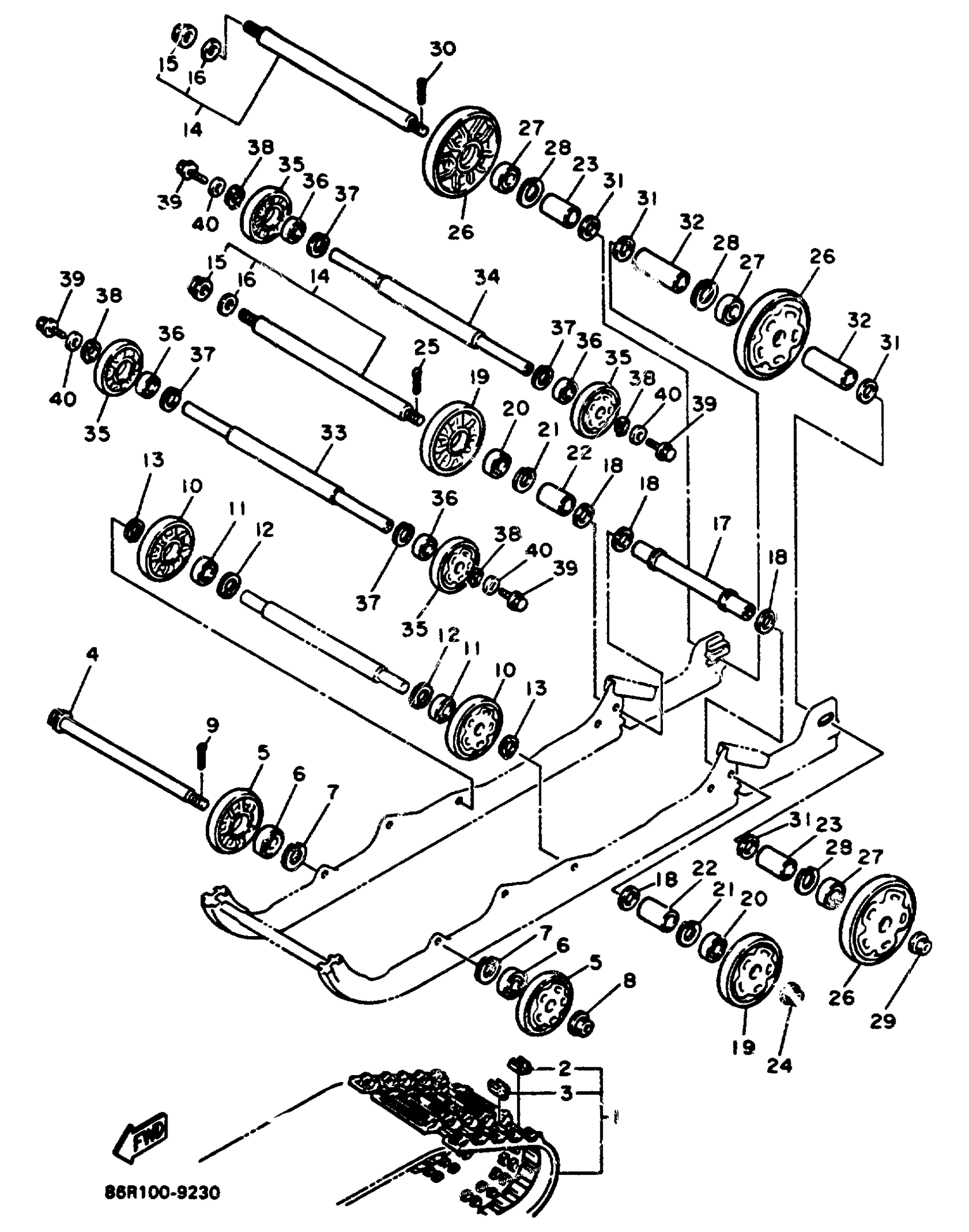

Yamaha VK540EN (VK540) 1989 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8AC-47110-11-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
SHAFT 5
83R-47487-00-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91490-30030-00
$8.49
10
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
REAR AXLE COMP.
8JN-47520-00-00
$125.99
15
NUT(6TC)
95337-14600-00
$11.49
16
WASHER, PLATE
90201-144L3-00
Unavailable
17
COLLAR 1
83R-47469-00-00
Unavailable
18
WASHER, PLATE (888)
90201-20279-00
Unavailable
19
SUSPENSION WHEEL COMP.
8U7-47320-00-00
Unavailable
20
BEARING(8AB)
93306-00444-00
$41.99
21
CIRCLIP(5U8)
99009-42500-00
$8.49
22
COLLAR
90387-20022-00
Unavailable
23
COLLAR(83R)
90387-200U9-00
Unavailable
24
NUT, SELF-LOCKING(83R)
90185-14142-00
Unavailable
25
PIN, COTTER
91490-30030-00
$8.49
26
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
27
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
28
CIRCLIP(48Y)
99009-47500-00
Unavailable
29
NUT, SELF-LOCKING(83R)
90185-14142-00
Unavailable
30
PIN, COTTER
91490-30030-00
$8.49
31
WASHER, PLATE (888)
90201-20279-00
Unavailable
32
COLLAR(83R)
90387-205T6-00
Unavailable
33
IDLER
83R-47461-00-00
Unavailable
34
SHAFT 6
99999-02678-00
Unavailable
35
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
36
BEARING(8AB)
93306-00444-00
$41.99
37
CIRCLIP(5U8)
99009-42500-00
$8.49
38
CIRCLIP(1AR)
99009-20400-00
$8.49
39
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
40
WASHER (853)
90201-08326-00
Unavailable
