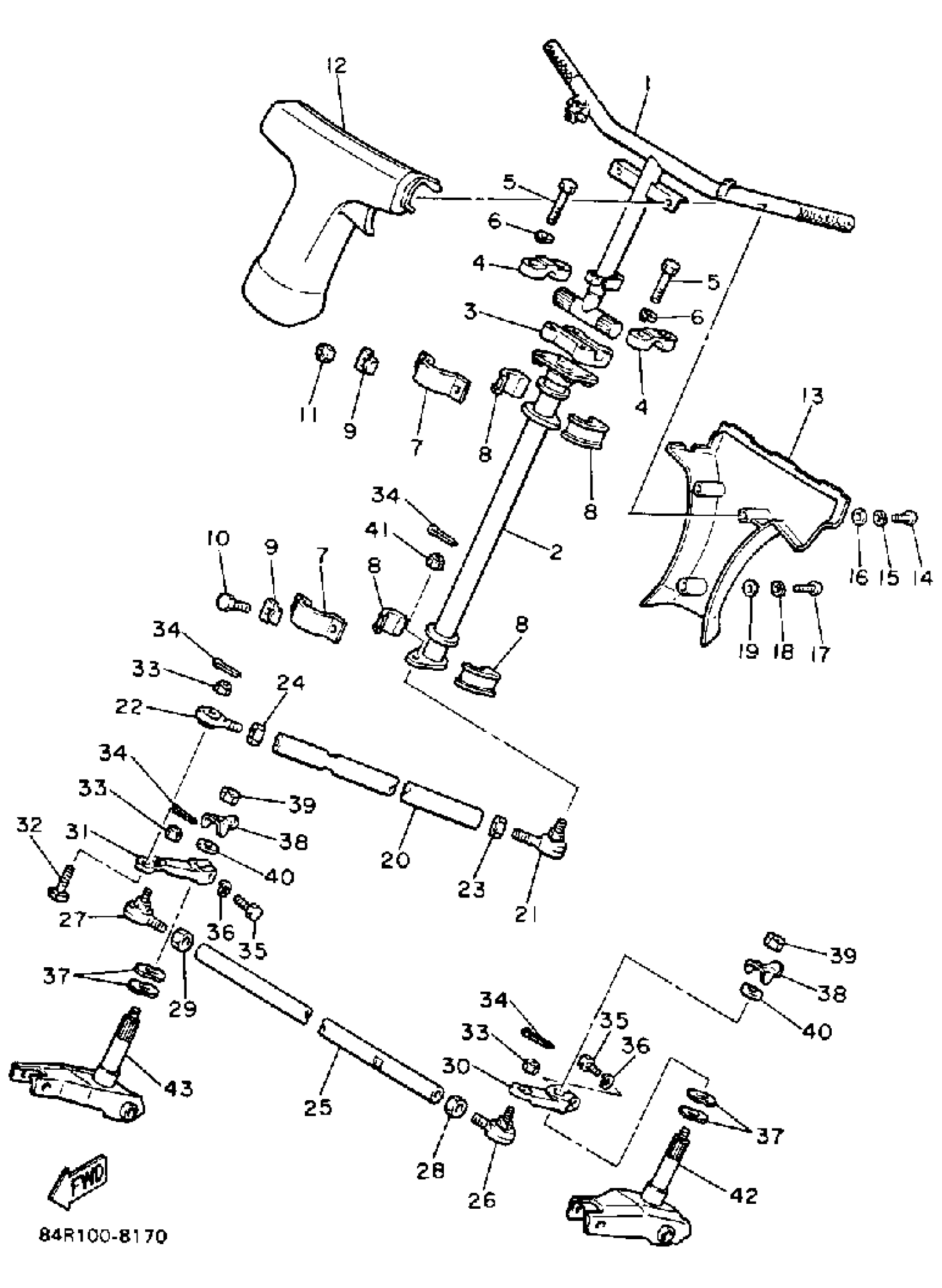

Yamaha VK540EN (VK540) 1989 STEERING Diagram
#
1
COLUMN,STEERING
87R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
83R-23813-00-00
Unavailable
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
BEARING, STEERING
8F3-23812-00-00
Unavailable
9
WASHER, LOCK 1
8AC-23894-01-00
$4.78
10
BOLT, HEXAGON
97017-08016-00
$8.49
11
NUT, NYLON
95717-08300-00
$2.70
12
PAD, STEERING
8W9-23815-00-00
Unavailable
13
PAD,STEERING
88E-23817-00-00
Unavailable
14
SCREW, PAN HEAD
98517-05030-00
$10.49
15
WASHER(3SX)
92907-05100-00
$8.49
16
WASHER(1RW)
92907-05600-00
Unavailable
17
GASKET, EXHAUST
98507-05008-00
Unavailable
18
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
19
WASHER(3SX)
92907-05100-00
$8.49
20
ROD, STEERING RELAY
83R-23821-00-00
Unavailable
21
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
22
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
23
NUT (682)
95380-10700-00
Unavailable
24
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
25
ROD, TIE
83R-23831-00-00
Unavailable
26
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
27
JOINT, UNIVERSAL 2
86X-23845-00-00
Unavailable
28
NUT (682)
95380-10700-00
Unavailable
29
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
30
ARM, OUTSIDE 1
8H8-23851-01-00
Unavailable
31
ARM, OUTSIDE 2
8H8-23852-01-00
Unavailable
32
BOLT
90109-10482-00
Unavailable
33
NUT, NYLON
95707-10300-00
Unavailable
34
PIN, COTTER
91490-25020-00
Unavailable
35
BOLT, HEXAGON
97017-08030-00
Unavailable
36
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
37
WASHER, WAVE (878)
90206-20037-00
Unavailable
38
WASHER, LOCK
90215-10096-00
Unavailable
39
NUT(3BM)
95314-10600-00
Unavailable
40
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
41
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
42
COLUMN, SKI 1
83R-23853-00-00
Unavailable
43
COLUMN, SKI 2
83R-23854-00-00
Unavailable
