Description

Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

2

ARMATURE ASSY

8Y3-81850-50-00

Unavailable

3

. CLUTCH, OVER RUN

8L6-81832-50-00

Unavailable

4

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

5

BRUSH 2

73A-81812-00-00

Unavailable

6

SPRING, BRUSH

8L6-81813-50-00

Unavailable

7

RING, STOP

8L6-81833-50-00

Unavailable

8

BRUSH 1

73A-81811-01-00

Unavailable

9

O-RING

4H7-81844-00-00

Unavailable

10

RING

8L6-81834-50-00

$2.60

11

BOLT

84N-81826-00-00

$15.49

12

. WASHER 2

8L6-81824-50-00

Unavailable

13

O-RING

8L6-81847-50-00

$3.28

14

SPRING, LEVER

8L6-81836-50-00

Unavailable

15

WASHER 1

4H7-81843-50-00

$3.90

16

WASHER

8L6-81835-50-00

Unavailable

17

NUT

4H7-81872-00-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

. OIL SEAL

8Y3-81167-00-00

Unavailable

21

WIRE, LEAD

83R-82117-02-00

Unavailable

22

WIRE MINUS LEAD

83R-82116-00-00

Unavailable

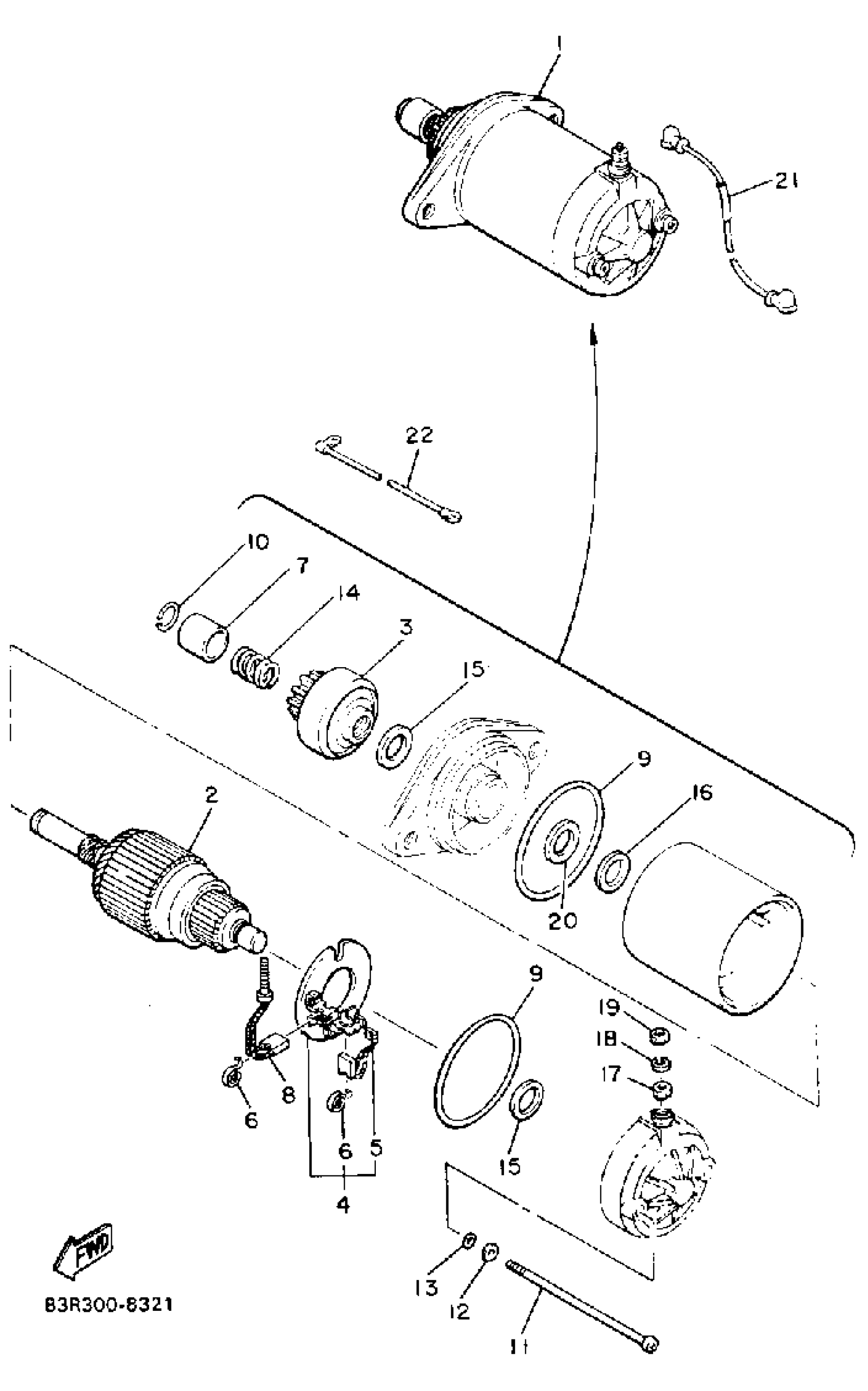

Yamaha VK540EN (VK540) 1989 STARTING MOTOR Diagram

STARTING MOTOR ASSY

ARMATURE ASSY

. CLUTCH, OVER RUN

BRUSH HOLDER ASSY

BRUSH 2

SPRING, BRUSH

RING, STOP

BRUSH 1

O-RING

RING

BOLT

. WASHER 2

O-RING

SPRING, LEVER

WASHER 1

WASHER

NUT

WASHER, SPRING

NUT(650)

. OIL SEAL

WIRE, LEAD

WIRE MINUS LEAD
