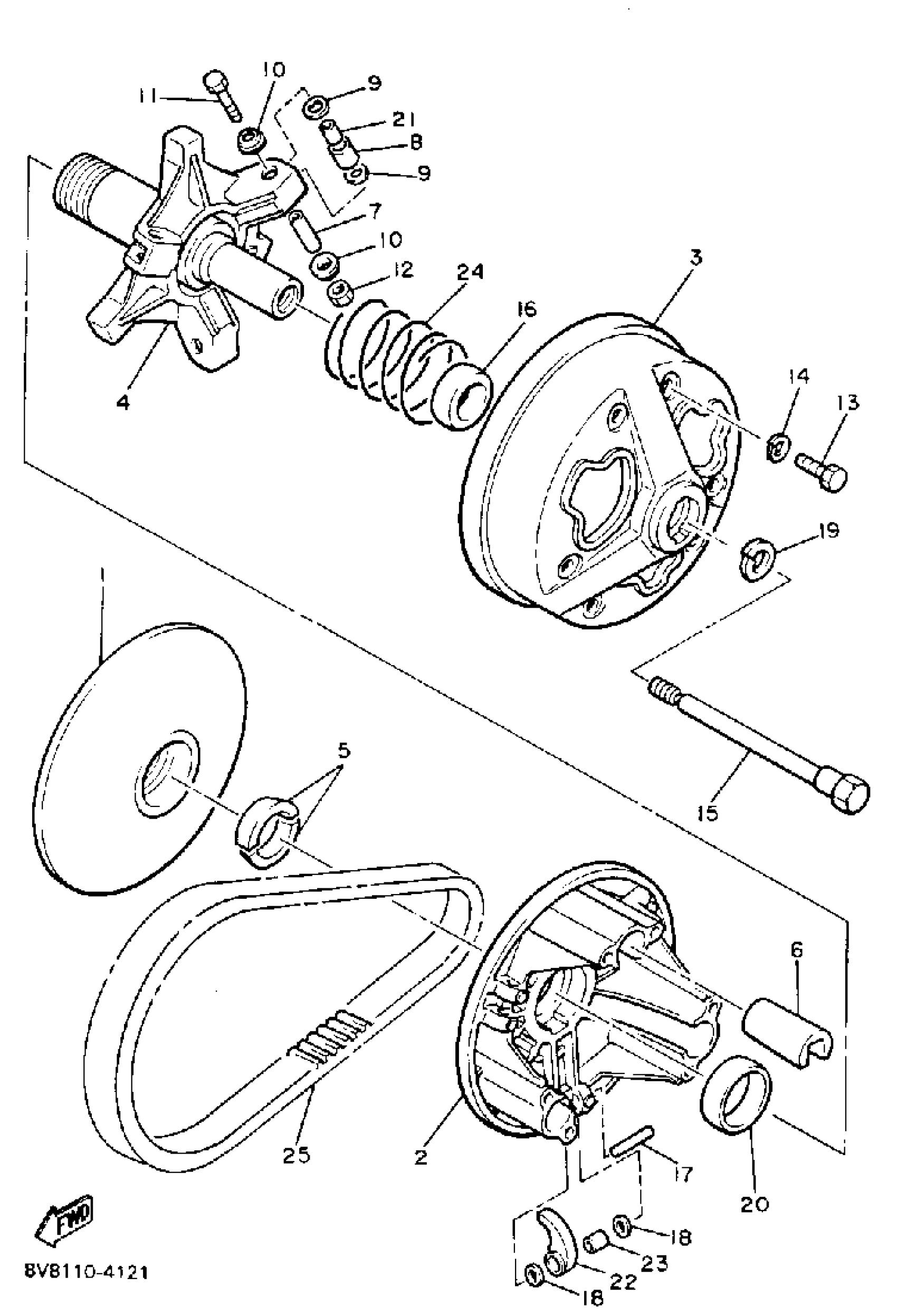

Yamaha VK540EN (VK540) 1989 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRI FIXEDFIXED

82M-17611-00-00

Unavailable

2

SHEAVE, PRI SLIDINGSLIDING

83R-17621-00-00

Unavailable

3

CAP

8V0-17631-00-00

Unavailable

4

SPIDER COMPLETE

82M-17640-02-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

SLIDER

88X-17653-00-00

$14.49

7

COLLAR(83R)

90387-057W5-00

$14.99

8

ROLLER, WITH BUSH

87M-W176B-10-00

$46.99

9

WASHER, PLATE(87G)

90202-08205-00

$8.49

10

WASHER, CONICAL SPRING (8V8)

90208-05036-00

$9.49

11

BOLT, HEXAGON

97027-05035-00

Unavailable

12

NUT, U

95617-05100-00

$9.49

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

16

BUSH(83R)

90389-28032-00

Unavailable

17

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

18

WASHER, PLATE (8V8)

90201-077F5-00

Unavailable

19

WASHER(JN5)

92907-16100-00

Unavailable

20

BUSH

90389-40030-00

Unavailable

21

BUSH(83R)

90386-08166-00

Unavailable

22

WEIGHT, WITH BUSH

83R-W176A-00-00

Unavailable

23

BUSH(83V)

90386-07152-00

Unavailable

24

SPRING, COMPRESSIONCOMPRESSION

90501-527E3-00

Unavailable

24

SPRING, COMPRESSION

90501-55559-00

Unavailable

25

PRIMARY SHEAVE ASSEMBLY (83R-17601-09)

83R-17601-19-00

Unavailable

25

V-BELT

89X-17641-01-00

Unavailable
