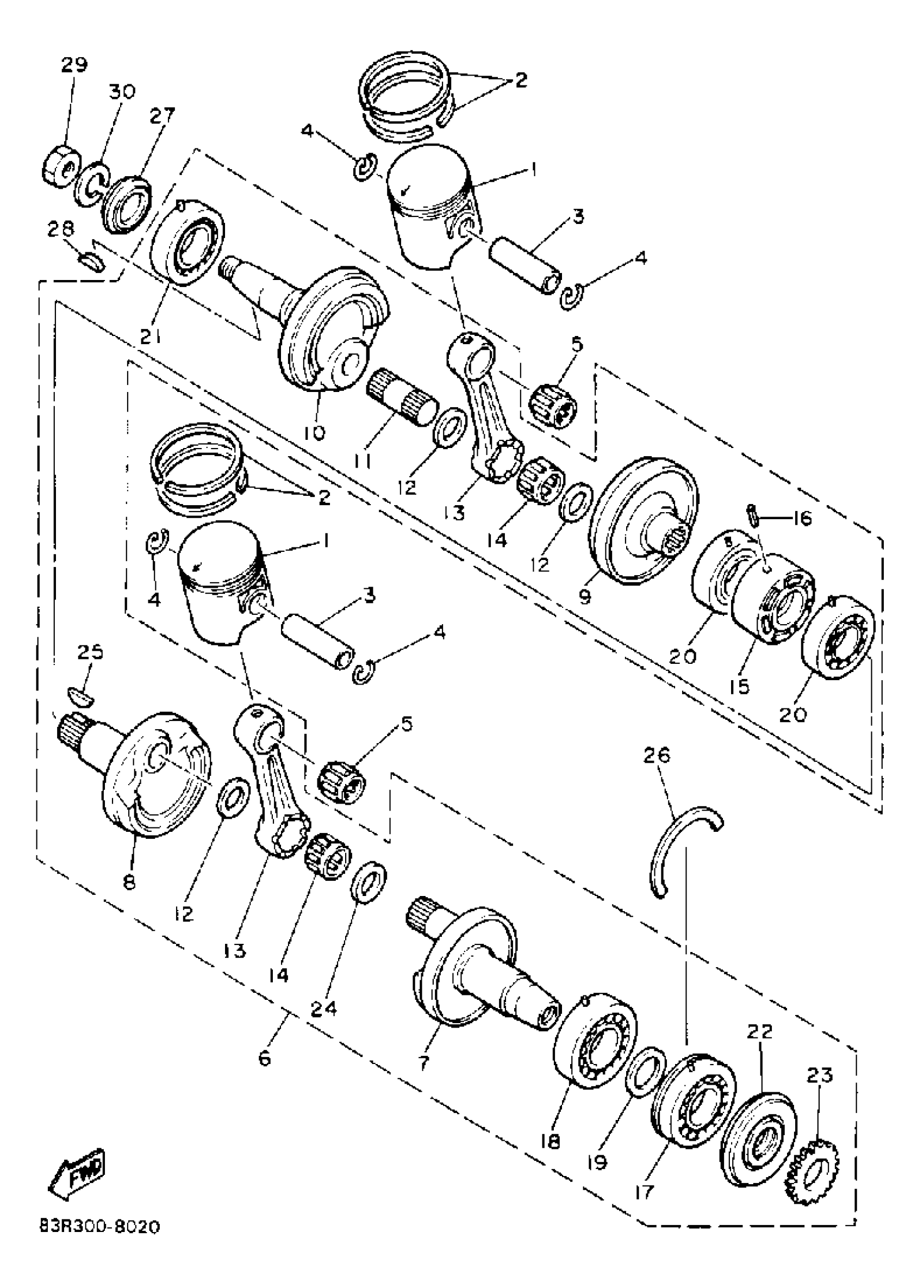

Yamaha VK540EN (VK540) 1989 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

PISTON (STD)

8R6-11631-00-95

$171.99

1

PISTON (0.25MM O/S)

8R6-11635-00-00

$178.99

1

PISTON (2ND 0/S 0.50MM)

8R6-11636-00-00

Unavailable

2

PISTON RING SET (STD)

8R6-11601-00-00

$70.99

2

PISTON RING SET (1ST O/S)

8R6-11601-10-00

$64.99

2

PISTON RING SET (2ND O/S)

8R6-11601-20-00

$60.99

3

PIN, PISTON

8H8-11633-00-00

$36.99

4

CIRCLIP (8H0)

93450-21053-00

$3.85

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

$47.99

6

CRANKSHAFT ASSY

99999-03171-00

Unavailable

7

CRANK 1

99999-03170-00

Unavailable

8

CRANK 2

8H8-11422-01-00

Unavailable

9

CRANK 3

8H8-11432-01-00

Unavailable

10

. CRANK 4

8H8-11442-00-00

Unavailable

11

. PIN, CRANK 1

8H8-11681-00-00

Unavailable

12

WASHER (152-11685-00)

90209-24073-00

Unavailable

13

ROD, CONNECTING

8R6-11651-00-00

Unavailable

14

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

Unavailable

15

SEAL, LABYRINTH 1

8H8-11515-00-00

Unavailable

16

PIN, SPRING (663)

91690-30010-00

Unavailable

17

BEARING(83R)

93306-30627-00

Unavailable

18

BEARING(83R)

93306-30627-00

Unavailable

19

WASHER (8H0)

90201-34683-00

Unavailable

20

BEARING (8G8)

93306-20617-00

Unavailable

21

BEARING (8G8)

93306-20617-00

Unavailable

22

OIL SEAL (878).

93103-32095-00

Unavailable

23

GEAR, PUMP DRIVE

8K2-13178-00-00

Unavailable

24

WASHER, CRANK PIN

8A7-11685-00-00

Unavailable

25

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

26

CIRCLIP (8H8)

93440-78069-00

Unavailable

27

OIL SEAL(83R)

93103-32156-00

Unavailable

28

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

29

NUT

90170-16425-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable
