CARBURETOR

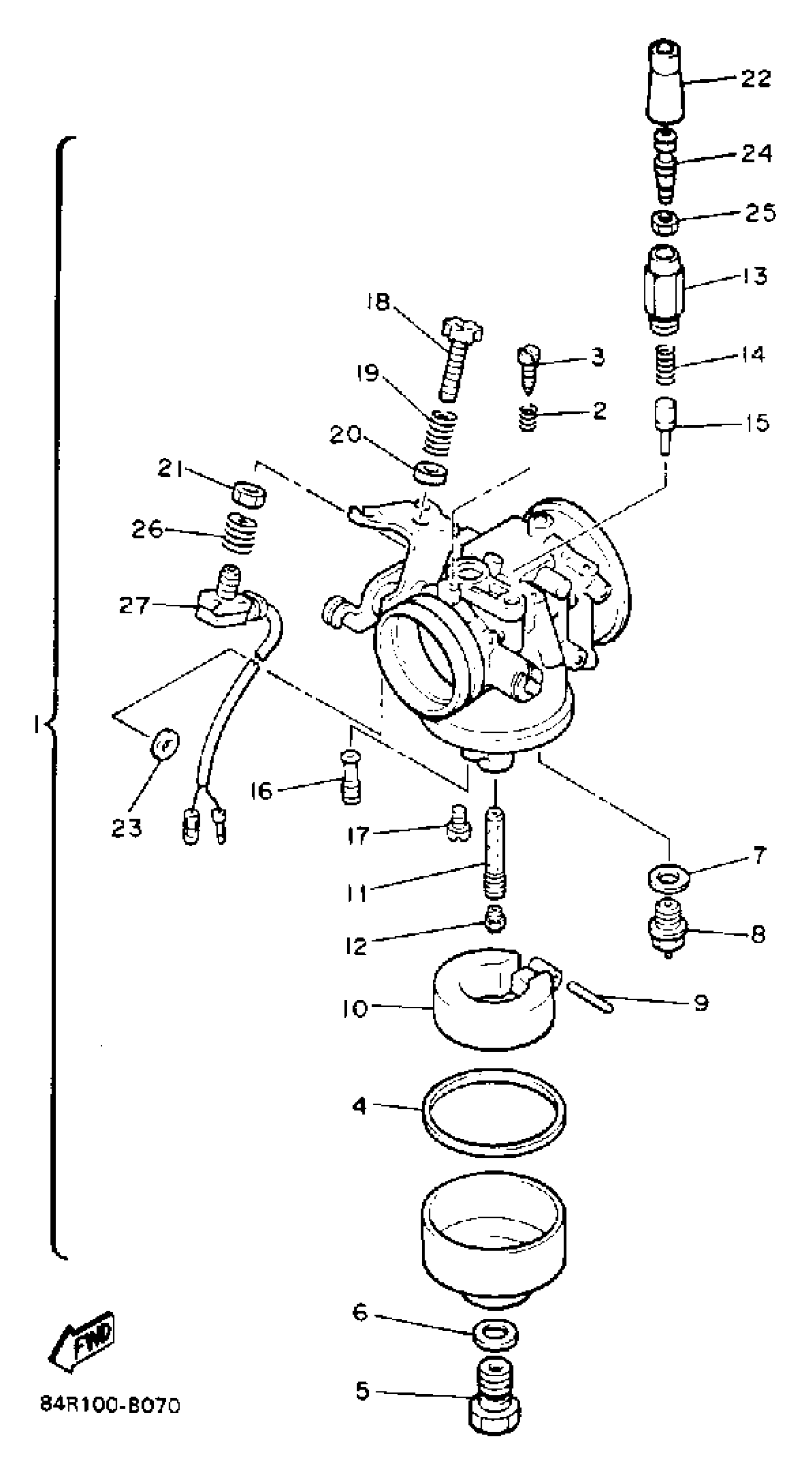

Yamaha VK540EN (VK540) 1989 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
86R-14101-03-00
Unavailable
2
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
3
SCREW, PILOT ADJUSTING
620-14211-00-00
$19.99
4
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
5
HOLDER
8M6-14261-00-00
$46.99
6
GASKET
286-14198-00-00
$9.99
7
WASHER, VALVE SEAT
214-14195-00-00
$7.99
8
NEEDLE VALVE ASSY
83R-14190-15-00
$47.99
9
PIN,FLOAT
8M6-14186-00-00
$9.49
10
FLOAT ASSY
8M6-14185-00-00
$91.99
11
NOZZLE, MAIN
83R-14941-4E-00
Unavailable
12
JET, MAIN (#135)
3G2-14231-27-00
$13.49
12
JET, MAIN (#141.3)
3G2-1423E-56-00
$11.99
12
JET, MAIN (#140)
3G2-14231-28-00
$15.49
12
. UNAVAILABLE IN PRICE BOOK (3G2-14231-77-A0)
3G2-14231-77-A1
Unavailable
12
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
12
JET,MAIN #142.5
3G2-1423A-79-00
Unavailable
13
CAP, PLUNGER
8G8-14174-00-00
Unavailable
14
SPRING, PLUNGER
127-14135-00-00
Unavailable
15
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
16
JET, PILOT (# 90)
193-14142-90-A1
Unavailable
16
JET, PILOT # 100
193-1414F-00-A1
Unavailable
17
CAP
8V0-14118-00-00
Unavailable
18
. SCREW, THROTTLE
8V0-14122-00-00
Unavailable
19
SPRING
8X0-14500-00-00
Unavailable
20
RING
8X0-14184-00-00
Unavailable
21
. UNAVAILABLE IN PRICE BOOK
8V0-13458-00-00
Unavailable
22
CAP
8A7-14169-00-00
Unavailable
23
WASHER
80L-14227-00-00
Unavailable
24
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
25
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
26
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
27
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
