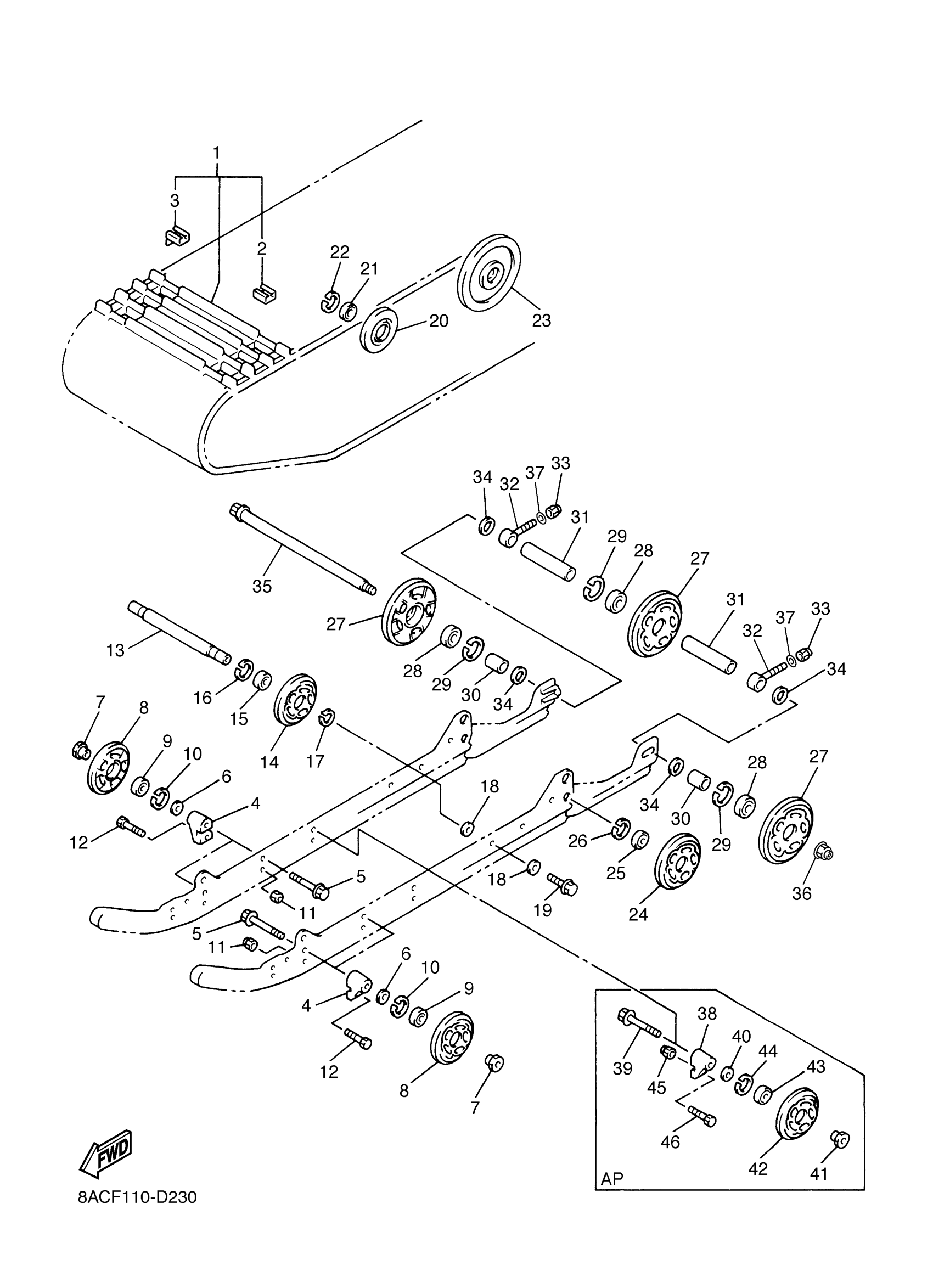

Yamaha VK540EK (VK540 III) 8ACF 2005 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8AC-47110-11-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

BRACKET 7

8CM-47419-10-00

$39.99

5

BOLT, FLANGE

90105-10029-00

$5.60

6

WASHER, PLATE (17K)

90201-106F2-00

$10.49

7

NUT(8CM)

90179-10670-00

$12.49

8

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

9

BEARING(8AB)

93306-00444-00

$41.99

10

CIRCLIP(5U8)

99009-42500-00

$8.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BOLT(8CM)

90101-08774-00

$7.49

13

SHAFT 4

8AT-47486-00-00

Unavailable

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

WASHER, PLATE (17K)

90201-106F2-00

$10.49

19

BOLT, FLANGE

95817-10030-00

Unavailable

20

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

GUIDE WHEEL ASSY

8AC-47550-00-00

Unavailable

24

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

25

BEARING(8AB)

93306-00444-00

$41.99

26

CIRCLIP(5U8)

99009-42500-00

$8.49

27

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

28

BEARING(8AE)

93306-20469-00

Unavailable

29

CIRCLIP(48Y)

99009-47500-00

Unavailable

30

COLLAR(83R)

90387-200U9-00

Unavailable

31

COLLAR(83R)

90387-205T6-00

Unavailable

32

COLLAR 3

8DM-47479-00-00

Unavailable

33

NUT, NYLON

95707-10300-00

Unavailable

34

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

35

REAR AXLE COMP.

8JN-47520-00-00

Unavailable

36

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

37

WASHER(6TA)

92907-10600-00

Unavailable

38

BRACKET 7

8CM-47419-10-00

$39.99

39

BOLT, FLANGE

90105-10029-00

$5.60

40

WASHER, PLATE (17K)

90201-106F2-00

$10.49

41

NUT(8CM)

90179-10670-00

$12.49

42

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

43

BEARING(8AB)

93306-00444-00

$41.99

44

CIRCLIP(5U8)

99009-42500-00

$8.49

45

NUT, SELF-LOCKING

90185-08169-00

$8.49

46

BOLT(8CM)

90101-08774-00

$7.49
