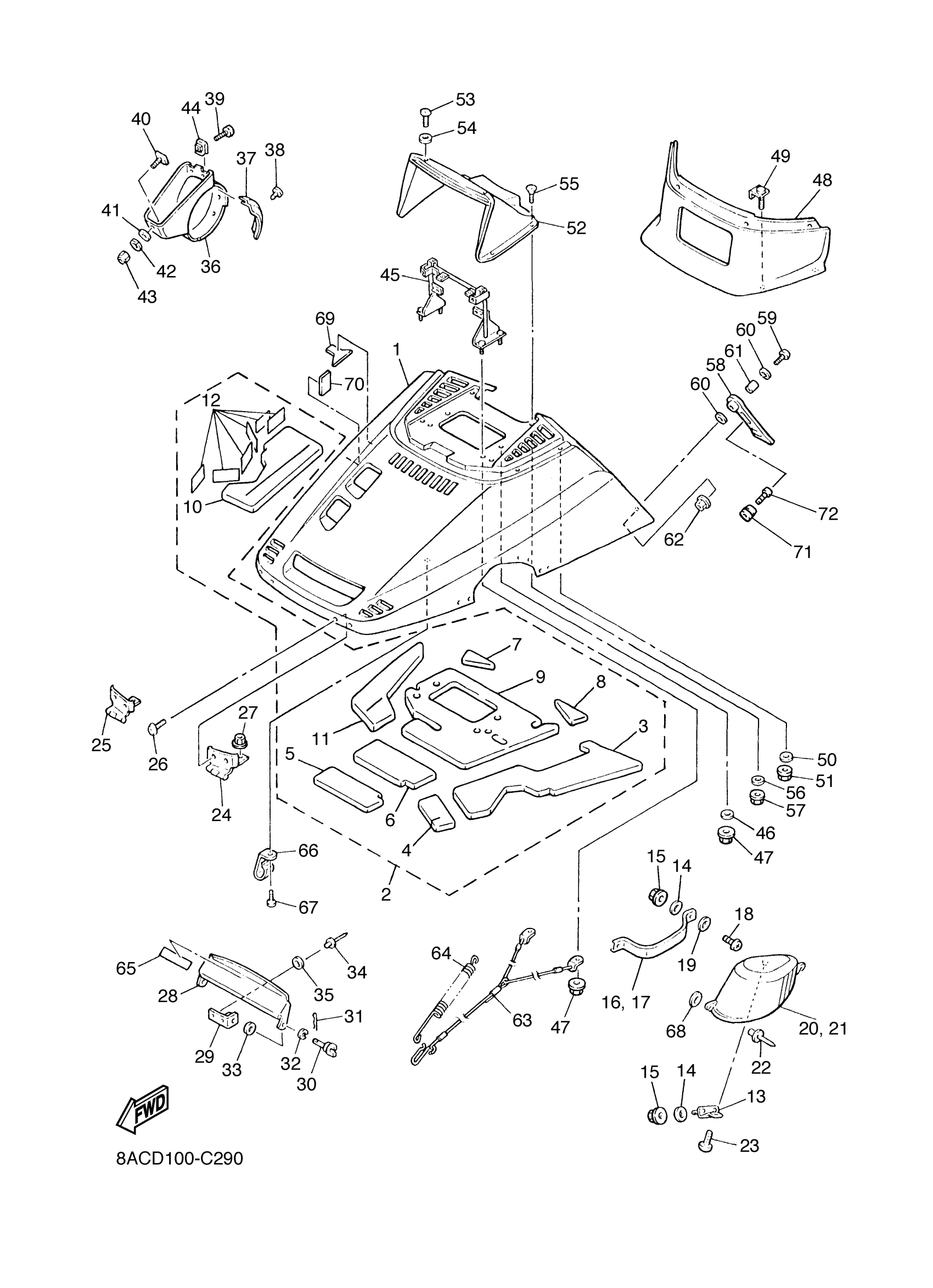

Yamaha VK540EK (VK540 III) 8ACF 2005 SHROUD Diagram
#
1
SHROUD
8AC-77111-30-00
Unavailable
2
LINING SET
8AT-W7726-01-00
Unavailable
3
LINING, SHROUD 1
8AT-77261-00-00
Unavailable
4
LINING SHROUD 2
8AT-77262-00-00
Unavailable
5
LINING SHROUD 3
8AT-77263-00-00
Unavailable
6
LINING SHROUD 4
8AT-77264-00-00
Unavailable
7
LINING SHROUD 5
8AT-77265-00-00
Unavailable
8
LINING SHROUD 6
8AT-77266-00-00
Unavailable
9
LINING SHROUD 7
8AT-77267-00-00
Unavailable
10
LINING,SHROUD 8
8AT-77268-00-00
Unavailable
11
LINING,SHROUD 9
8AT-77269-00-00
Unavailable
12
TAPE 3
82M-7717G-01-00
$2.34
13
STAY 1
8AT-77125-00-00
Unavailable
14
WASHER(6TA)
92907-06200-00
$8.49
15
NUT, NYLON
95707-06300-00
$3.50
16
PLATE, BACK UP 1
8AT-77153-00-00
Unavailable
17
PLATE, BACK UP 2
8AT-77154-00-00
Unavailable
18
SCREW, PAN
98517-06020-00
Unavailable
19
WASHER(6TA)
92907-06600-00
Unavailable
20
HOOD 1
8AT-77121-00-00
Unavailable
21
HOOD 2
8AT-77122-00-00
Unavailable
22
RIVET, BLIND
90267-48018-00
Unavailable
23
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
24
HINGE ASSY
83R-77140-00-00
Unavailable
25
HINGE ASSY 2
83R-7714A-01-00
Unavailable
26
SCREW, BIND (705)
98980-06016-00
Unavailable
27
NUT, NYLON
95707-06300-00
$3.50
28
PLATE 1
83R-77185-00-00
Unavailable
29
STAY 1
83R-77125-00-00
Unavailable
30
BOLT, WING(8W1)
90122-05022-00
Unavailable
31
PIN, HAIR 6474123500
90468-10003-00
Unavailable
32
WASHER(3SX)
92907-05100-00
Unavailable
33
. WASHER, PLATE
90202-05088-00
Unavailable
34
RIVET, BLIND (8K2)
90267-48079-00
Unavailable
35
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
36
DUCT
83R-77194-00-00
Unavailable
37
BUSH, RUBBER 1
83R-77515-00-00
Unavailable
38
RIVET(81E)
90269-05055-00
Unavailable
39
SCREW, BINDING
98907-06014-00
Unavailable
40
PLATE 2
83R-77186-00-00
Unavailable
41
WASHER, PLATE
90201-06557-00
Unavailable
42
WASHER, SPRING
92907-06100-00
Unavailable
43
NUT(6TA)
95317-06600-00
Unavailable
44
NUT
83R-77144-00-00
Unavailable
45
SRAY, FAIRING
83R-77241-00-00
Unavailable
46
WASHER, PLATE
90201-06557-00
Unavailable
47
NUT, NYLON
95707-06300-00
$3.50
48
FAIRING
8AC-77231-30-00
Unavailable
49
BOLT, WIND SHIELD
83R-77212-00-00
Unavailable
50
WASHER, PLATE
90201-06557-00
Unavailable
51
NUT, NYLON
95707-06300-00
$3.50
52
COVER, HEADLIGHT
86V-77251-01-00
Unavailable
53
SCREW, BINDING
98907-05012-00
Unavailable
54
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
55
SCREW, FLAT
98707-05016-00
Unavailable
56
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
57
NUT, NYLON
95707-05300-00
Unavailable
58
BODY, LATCH 1
8V0-77171-00-00
Unavailable
59
SCREW, BINDING
98907-06025-00
Unavailable
60
WASHER, PLATE
90201-06557-00
Unavailable
61
COLLAR (420)
90387-06241-00
Unavailable
62
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
63
STOPPER, SHROUD
83R-77118-01-00
Unavailable
64
CLAMP,ROD
838-77159-00-00
Unavailable
65
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
66
CLAMP(83R)
90461-08113-00
Unavailable
67
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
68
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
69
SHIELD, HEAT
8AT-2199H-00-00
Unavailable
70
DAMPER, SHROUD
8AT-77196-00-00
Unavailable
71
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
72
SCREW, BINDING
98907-06035-00
Unavailable
