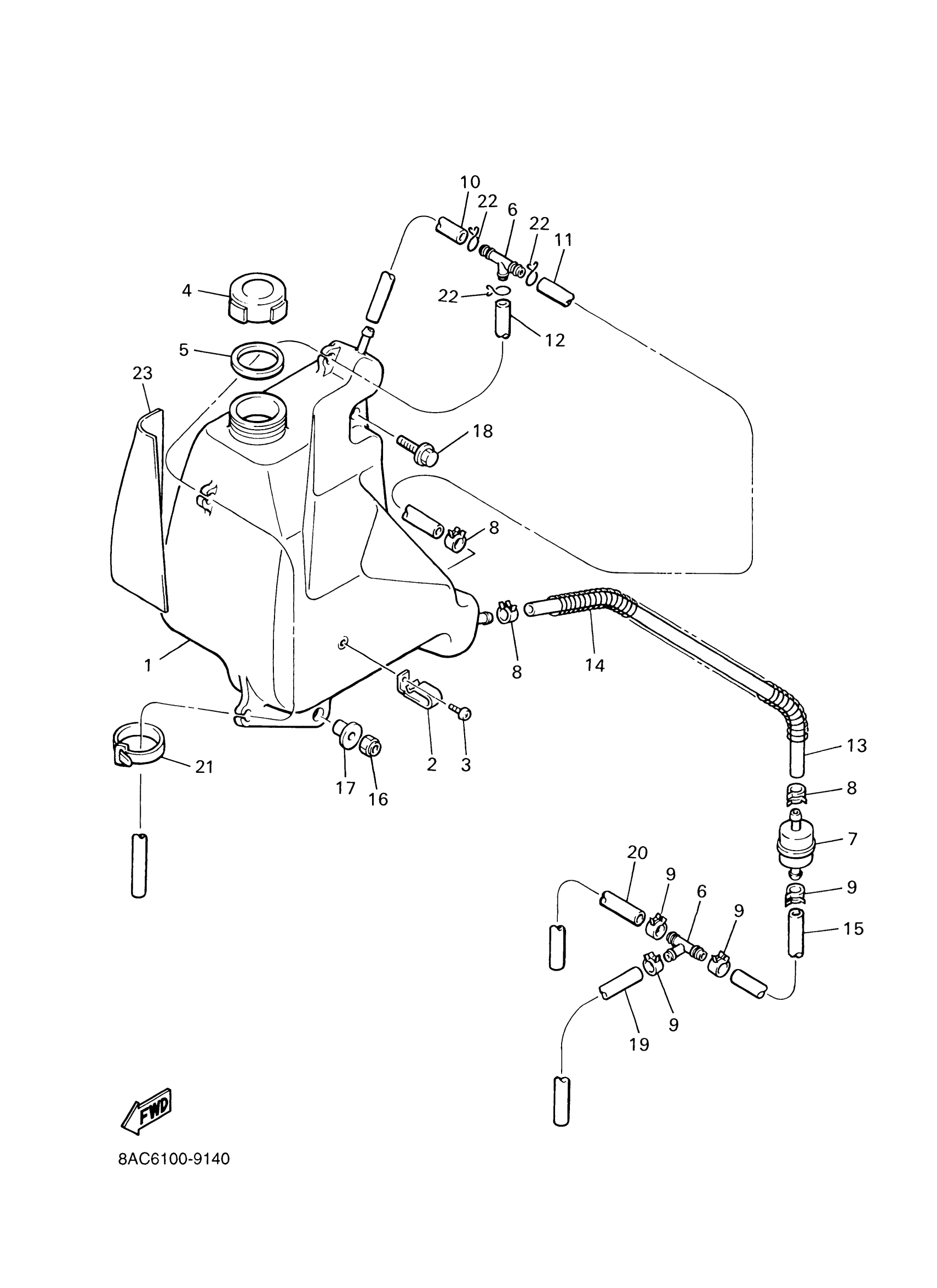

Yamaha VK540EK (VK540 III) 8ACF 2005 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

CLAMP(8AT)

90462-10209-00

Unavailable

3

SCREW, BINDING

98907-06010-00

$1.65

4

BODY, CAP

8LU-21771-00-00

$31.99

5

GASKET, TANK (867)

90430-31003-00

$10.49

6

PIPE, JOINT

801-24376-00-00

Unavailable

7

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

8

CLIP (7K7)

90467-11044-00

$8.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

11

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

13

TUBE,FLEXIBLE VINYL(8AU)

91A30-07016-00

$1.49

14

PROTECTOR, PIPE

84M-24327-00-00

Unavailable

15

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

COLLAR(50M)

90387-087L0-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

20

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

21

CLAMP

90464-16061-00

Unavailable

22

CLIP (8L2)

90467-08017-00

Unavailable

23

DAMPER

8AT-21747-00-00

Unavailable
