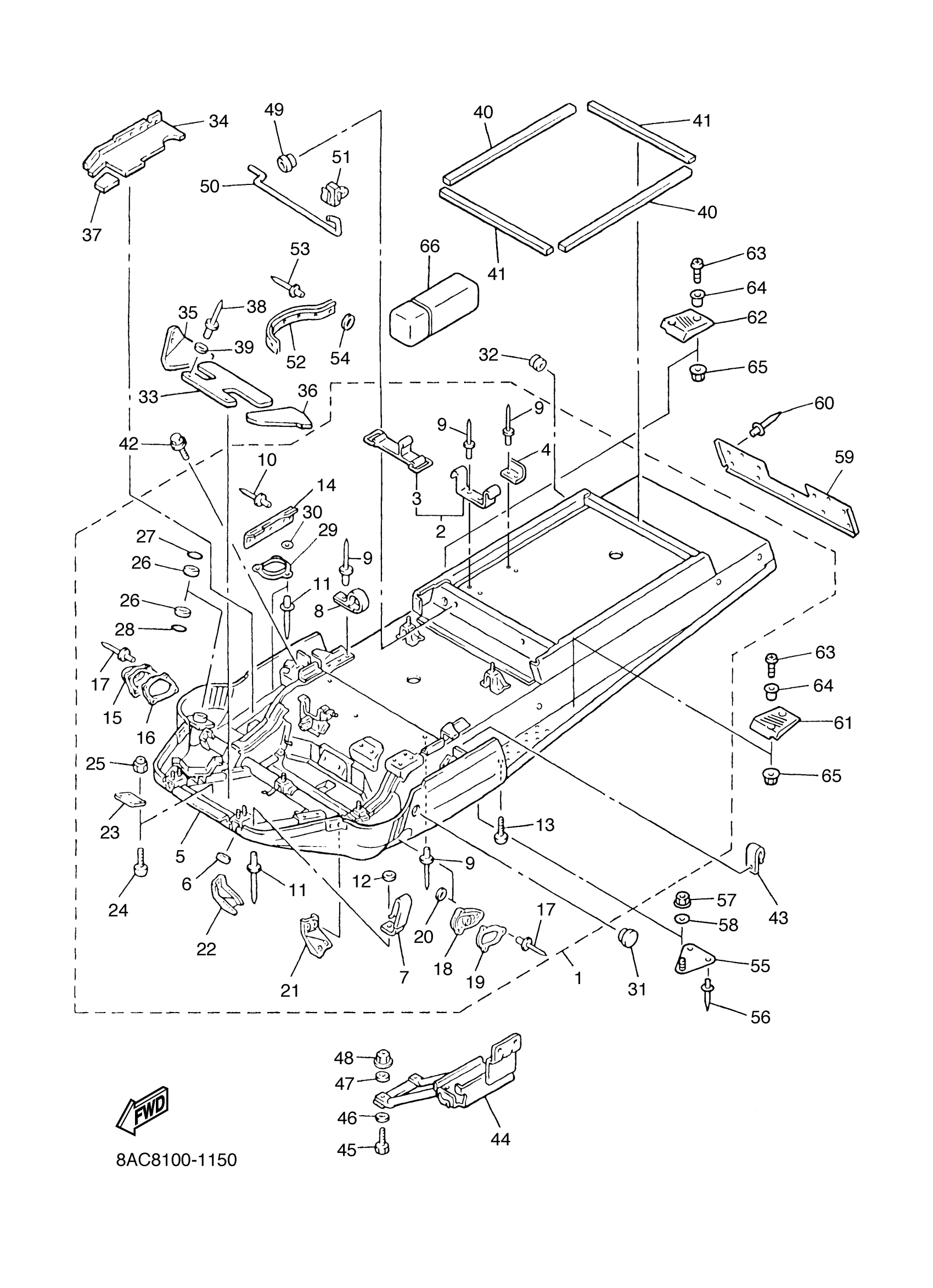

Yamaha VK540EK (VK540 III) 8ACF 2005 FRAME Diagram
#
1
FRAME COMP.
8AC-21910-00-00
Unavailable
2
BRACKET, TOOL BOX FITTING
81E-21945-00-00
$20.99
3
BAND, BATTERY
4J2-82131-01-00
$29.99
4
BRACKET, TOOL BOX FITTING
83R-21955-00-00
$8.99
5
. PANEL, SUB FRAME 1
8AC-21912-00-00
Unavailable
6
C0LLAR
90387-062M9-00
$9.49
7
CLAMP(51Y)
90465-08277-00
Unavailable
8
CLAMP
90462-10236-00
$10.49
9
RIVET, BLIND
90267-48060-00
$8.49
10
RIVET, BLIND (8M6)
90267-48051-00
$1.49
11
RIVET, BLIND
90267-48018-00
$9.49
12
WASHER, PLATE
90201-04027-00
$3.02
13
SCREW, BINDING
98907-06016-00
$9.49
14
PLATE, BACK UP
8AT-77527-01-00
Unavailable
15
COVER, STEERING
8AT-23818-00-00
Unavailable
16
WASHER 2
8AT-77526-00-00
Unavailable
17
RIVET, BLIND
90267-40029-00
Unavailable
18
COVER 1
8M6-2198F-00-00
Unavailable
19
SPACER
8M6-21998-00-00
Unavailable
20
WASHER, PLATE
90201-04027-00
$3.02
21
BRACKET, FRONT GUARD 3
8AT-2194Y-00-00
Unavailable
22
BRACKET, FRONT GUARD 4
8AT-2195Y-00-00
Unavailable
23
PANEL, SUB FRAME 6
89X-21917-00-00
Unavailable
24
SCREW, BINDING
98907-05014-00
Unavailable
25
NUT, NYLON
95707-05300-00
Unavailable
26
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
Unavailable
27
OIL SEAL (8M6)
93102-36232-00
Unavailable
28
OIL SEAL (8M6)
93103-36117-00
Unavailable
29
COVER 1
83R-2198F-00-00
Unavailable
30
WASHER, PLATE
90201-04027-00
$3.02
31
PLUG (8H8)
90338-44093-00
Unavailable
32
GROMMET (438)
90480-15061-00
Unavailable
33
DAMPER, NOISE 11
8AT-77271-00-00
Unavailable
34
DAMPER, NOISE 12
8AC-77272-00-00
Unavailable
35
DAMPER, NOISE 13
8AT-77273-10-00
Unavailable
36
DAMPER, NOISE 14
8AT-77274-00-00
Unavailable
37
DAMPER, NOISE 15
8AT-77275-00-00
Unavailable
38
RIVET, BLIND
90267-48018-00
$9.49
39
WASHER, PLATE
90201-04027-00
$3.02
40
TAPE 1
83R-7717E-00-00
Unavailable
41
TAPE 1
83R-7717E-00-00
Unavailable
42
BOLT, FLANGE
95817-06012-00
Unavailable
43
CLAMP(4MX)
90465-06376-00
Unavailable
44
BRACKET, BATTERY
8AT-2199G-01-00
Unavailable
45
BOLT, HEXAGON
97017-06025-00
Unavailable
46
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
47
WASHER, PLATE (4F4)
90201-063A5-00
Unavailable
48
NUT, NYLON
95707-06300-00
Unavailable
49
GROMMET (22F)
90480-10348-00
Unavailable
50
STAY, SEAT
85R-2471A-00-00
Unavailable
51
HOLDER, 2
85R-2639F-00-00
Unavailable
52
TRIM 1
8AT-2196T-00-00
Unavailable
53
RIVET, BLIND(8AC)
90267-40172-00
Unavailable
54
WASHER, PLATE
90201-042E0-00
Unavailable
55
COVER 2
8AC-2198G-00-00
Unavailable
56
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
57
NUT, NYLON
95707-06300-00
Unavailable
58
WASHER, PLATE (4X4)
90201-067A0-00
Unavailable
59
REINFORCEMENT, FRAME REAR 2
8AC-21933-00-00
Unavailable
60
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
61
FOOTREST, REAR 1
88T-27431-10-00
Unavailable
62
FOOTREST, REAR 2
88T-27441-10-00
Unavailable
63
SCREW, BINDING
98907-06025-00
Unavailable
64
COLLAR
90387-06158-00
Unavailable
65
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
66
TOOL KIT
85L-28100-01-00
Unavailable
