- VK540EK (VK540 III) 8ACF 2005
AIR SHROUD FAN

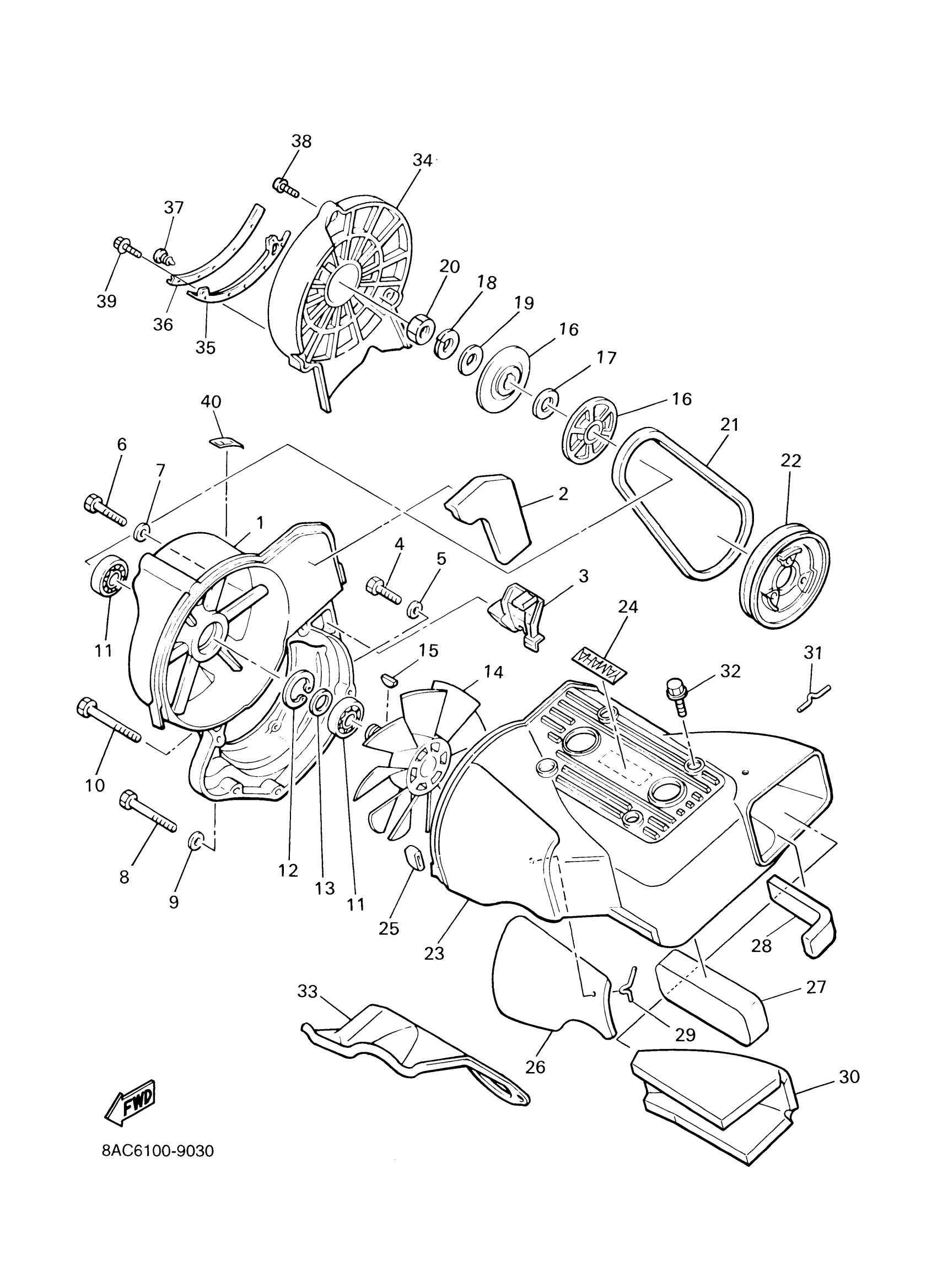

Yamaha VK540EK (VK540 III) 8ACF 2005 AIR SHROUD FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
DAMPER, SHROUD 6
8Y0-12679-00-00
Unavailable
3
DAMPER, AIR SHROUD 1
8Y0-12658-00-00
Unavailable
4
BOLT (8K4)
90101-08499-00
Unavailable
5
WASHER(6TA)
92907-08600-00
$3.03
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
WASHER(6TA)
92907-08600-00
$3.03
8
BOLT, HEXAGON
97017-08075-00
$49.99
9
WASHER(6TA)
92907-08600-00
$3.03
10
BOLT, HEXAGON
97017-08075-00
$49.99
11
BEARING
93306-20348-00
$40.99
12
CIR-CLIP (70R)
93420-40064-00
Unavailable
13
WASHER, PLATE (8H8)
90201-17713-00
$7.49
14
FAN
8H8-12611-01-00
$89.99
15
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
16
PULLEY 2
8H8-12619-01-00
Unavailable
17
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
17
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
18
WASHER(JN5)
92907-16100-00
Unavailable
19
WASHER, PLATE (8H8)
90201-17713-00
$7.49
20
NUT
90170-16425-00
Unavailable
21
BELT
8H8-12612-00-00
Unavailable
22
PULLEY 1
8H8-12618-01-00
Unavailable
23
AIR SHROUD CYL. 1
8H8-12651-02-00
Unavailable
24
EMBLEM, YAMAHA
99246-00080-00
Unavailable
25
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
26
DAMPER, SHROUD 2
8H8-12659-00-00
Unavailable
27
DAMPER, SHROUD 4
8H8-12669-00-00
Unavailable
28
DAMPER, AIR SHROUD 5
8V8-12678-00-00
Unavailable
29
91401-16025
91401-16025-00
Unavailable
30
DAMPER, SHROUD 6
8AT-12679-00-00
Unavailable
31
91401-16025
91401-16025-00
Unavailable
32
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
33
AIR SHROUD, CYLINDER 2
8H8-12652-00-00
Unavailable
34
COVER, FAN CASE
8L0-12616-00-00
Unavailable
35
STAY 1
8Y0-12637-02-00
Unavailable
36
DAMPER, DUCT
8Y0-12687-02-00
Unavailable
37
RIVET(8Y0)
90269-05051-00
Unavailable
38
SCREW, BINDING
98907-06025-00
Unavailable
39
BOLT, FLANGE
95817-06025-00
Unavailable
40
LABEL, CAUTION
8K4-12628-00-00
Unavailable
