- VK540EJ (VK540 III) 8ACD 2004
TRACK SUSPENSION 2

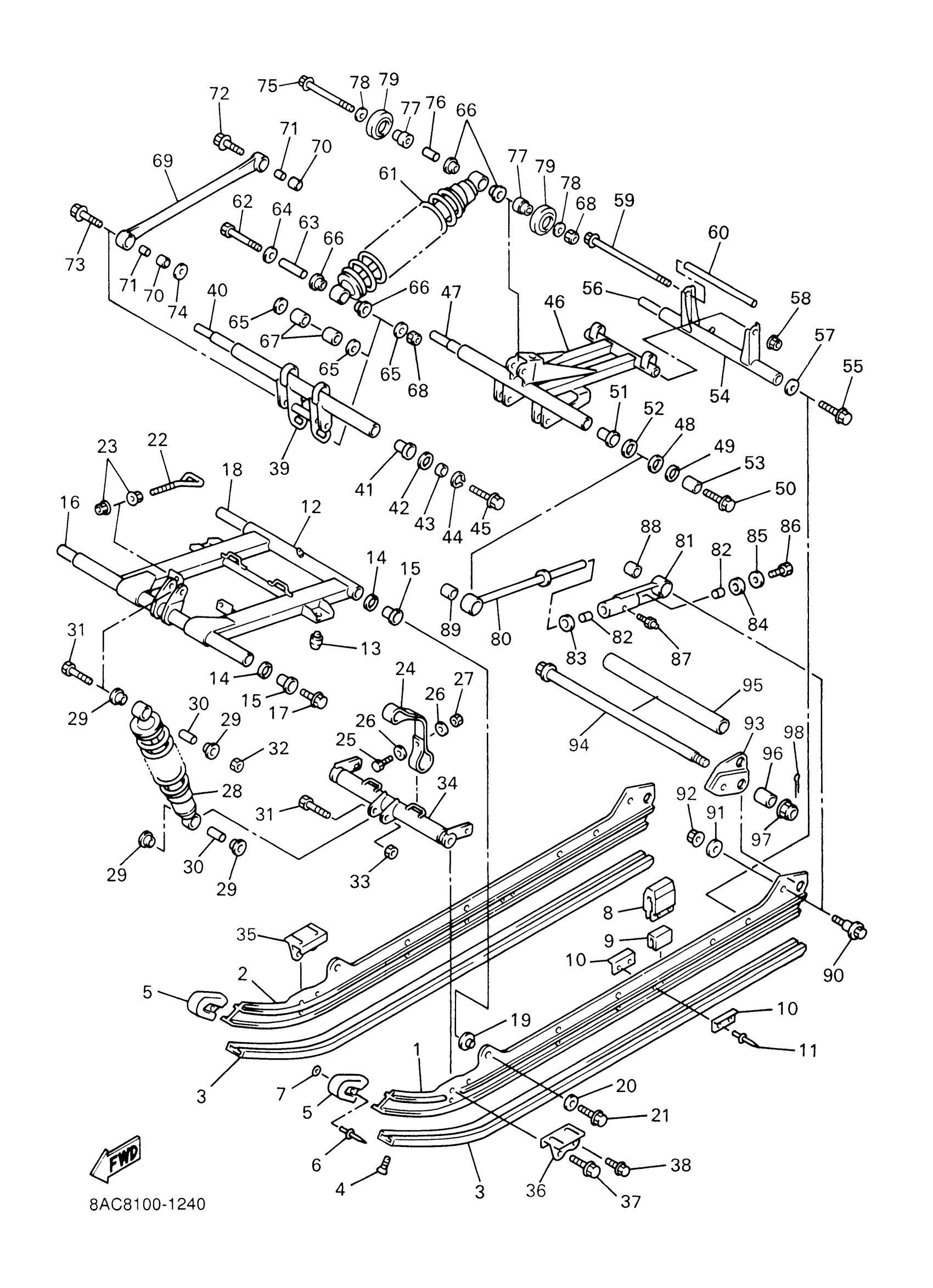

Yamaha VK540EJ (VK540 III) 8ACD 2004 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
8AC-47411-10-00
Unavailable
2
FRAME, SLIDING 4
8AC-47414-10-00
Unavailable
3
HYFAX,BLACK
8AC-47421-00-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
6
RIVET BLIND
90267-48194-00
$3.28
7
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
8
DAMPER 2
8AC-47457-00-00
$18.49
9
SPACER
8AC-47341-00-00
$40.99
10
PLATE, DAMPER
8AX-47458-00-00
$10.99
11
RIVET, BLIND
90267-48199-00
$3.76
12
ARM, PIVOT 1
8AC-47331-00-00
Unavailable
13
DAMPER
83M-21488-00-00
$19.49
14
WASHER, PLATE(8CJ)
90201-210U0-00
$10.49
15
BUSH, SOLID(8CJ)
90381-19111-00
$15.99
16
SHAFT 1
8AC-47465-00-00
Unavailable
17
BOLT (8V0)
90109-10771-00
Unavailable
18
SHAFT 3
83R-47485-02-00
Unavailable
19
COLLAR (8U7)
90387-105G6-00
Unavailable
20
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
21
BOLT, FLANGE
95817-10030-00
Unavailable
22
HOOK 3
8CR-47448-00-00
Unavailable
23
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
24
STOPPER 1
8CV-47495-00-00
Unavailable
25
BOLT, HEXAGON
97017-06025-00
Unavailable
26
WASHER, PLATE
90201-06747-00
Unavailable
27
NUT, NYLON
95707-06300-00
Unavailable
28
SHOCK ABSORBER 2
8AC-47481-00-00
Unavailable
29
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
30
COLLAR (8U7)
90387-105G5-00
Unavailable
31
BOLT(88R)
90101-10738-00
Unavailable
32
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
33
NUT, U
95617-10100-00
Unavailable
34
BRACKET 4
8AC-47418-00-00
Unavailable
35
BRACKET 5
8DF-47463-01-00
Unavailable
36
BRACKET 6
8DF-47464-01-00
Unavailable
37
BOLT, FLANGE
95817-10030-00
Unavailable
38
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
39
BRACKET 2
8AC-47416-01-00
Unavailable
40
SHAFT 6
8AC-47488-10-00
Unavailable
41
BUSH, SOLID(8CM)
90381-22099-00
Unavailable
42
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
43
COLLAR(8AB)
90387-2004V-00
Unavailable
44
CIRCLIP(1AR)
99009-20400-00
Unavailable
45
BOLT (8V0)
90109-10771-00
Unavailable
46
ARM, PIVOT 2
8AC-47332-00-00
Unavailable
47
SHAFT 2
8AC-47475-00-00
Unavailable
48
WASHER, PLATE(2JG)
90201-266L1-00
Unavailable
49
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
50
BOLT, FLANGE
95817-10030-00
Unavailable
51
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
52
WASHER, PLATE(1YW)
90201-286K9-00
Unavailable
53
COLLAR
90387-2515E-00
Unavailable
54
BRACKET 3
8AC-47417-00-00
Unavailable
55
BOLT, FLANGE
95817-10030-00
Unavailable
56
SHAFT 3
83R-47485-02-00
Unavailable
57
WASHER PLATE (789)
90201-10136-00
Unavailable
58
NUT, SELF-LOCKING
90185-08169-00
Unavailable
59
BOLT, FLANGE
95827-08220-00
Unavailable
60
COLLAR (8U7)
90387-083G6-00
Unavailable
61
SHOCK ABSORBER
8AC-47480-30-00
Unavailable
62
BOLT, ADJUSTING
8AC-4631K-00-00
Unavailable
63
COLLAR(8CJ)
90387-1009S-00
Unavailable
64
WASHER, PLATE
90201-10039-00
Unavailable
65
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
66
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
67
COLLAR(8CM)
90387-1404R-00
Unavailable
68
NUT, U
95617-10100-00
Unavailable
69
ROD, RELAY
8CR-47494-01-00
Unavailable
70
BUSH, SOLID(8CJ)
90381-14109-00
Unavailable
71
COLLAR(87A)
90387-100X3-00
Unavailable
72
BOLT, FLANGE
95817-10035-00
Unavailable
73
BOLT, FLANGE
95814-10040-00
Unavailable
74
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
75
BOLT, WASHER BASED (2H7)
90105-10105-00
Unavailable
76
COLLAR (8U7)
90387-105G5-00
Unavailable
77
COLLAR 2
8AC-47366-00-00
Unavailable
78
WASHER PLATE (789)
90201-10136-00
Unavailable
79
SUSPENSION WHEEL ASSY
8AC-47310-10-00
Unavailable
80
ROD, CONTROL 1
8AC-4745A-10-00
Unavailable
81
ROD, CONTROL 2
8CR-4745B-00-00
Unavailable
82
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
83
WASHER, PLATE(8CJ)
90202-16231-00
Unavailable
84
WASHER, PLATE(8BT)
90202-16232-00
Unavailable
85
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
86
BOLT(6TD)
97017-10025-00
Unavailable
87
NIPPLE, GREASE
93700-06M03-00
Unavailable
88
BUSH, SOLID(8CM)
90380-22232-00
Unavailable
89
BUSH, SOLID(8CJ)
90380-28235-00
Unavailable
90
SCREW, REAR PIVOT
8DF-47367-09-00
Unavailable
91
WASHER, PLATE
90201-101U2-00
Unavailable
92
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
93
BRACKET, ARM PIVOT
8AC-47349-00-00
Unavailable
94
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
95
COLLAR 1
83R-47469-00-00
Unavailable
96
COLLAR
90387-20022-00
Unavailable
97
NUT, SELF-LOCKING(83R)
90185-14142-00
Unavailable
98
PIN, COTTER
91401-30025-00
Unavailable
