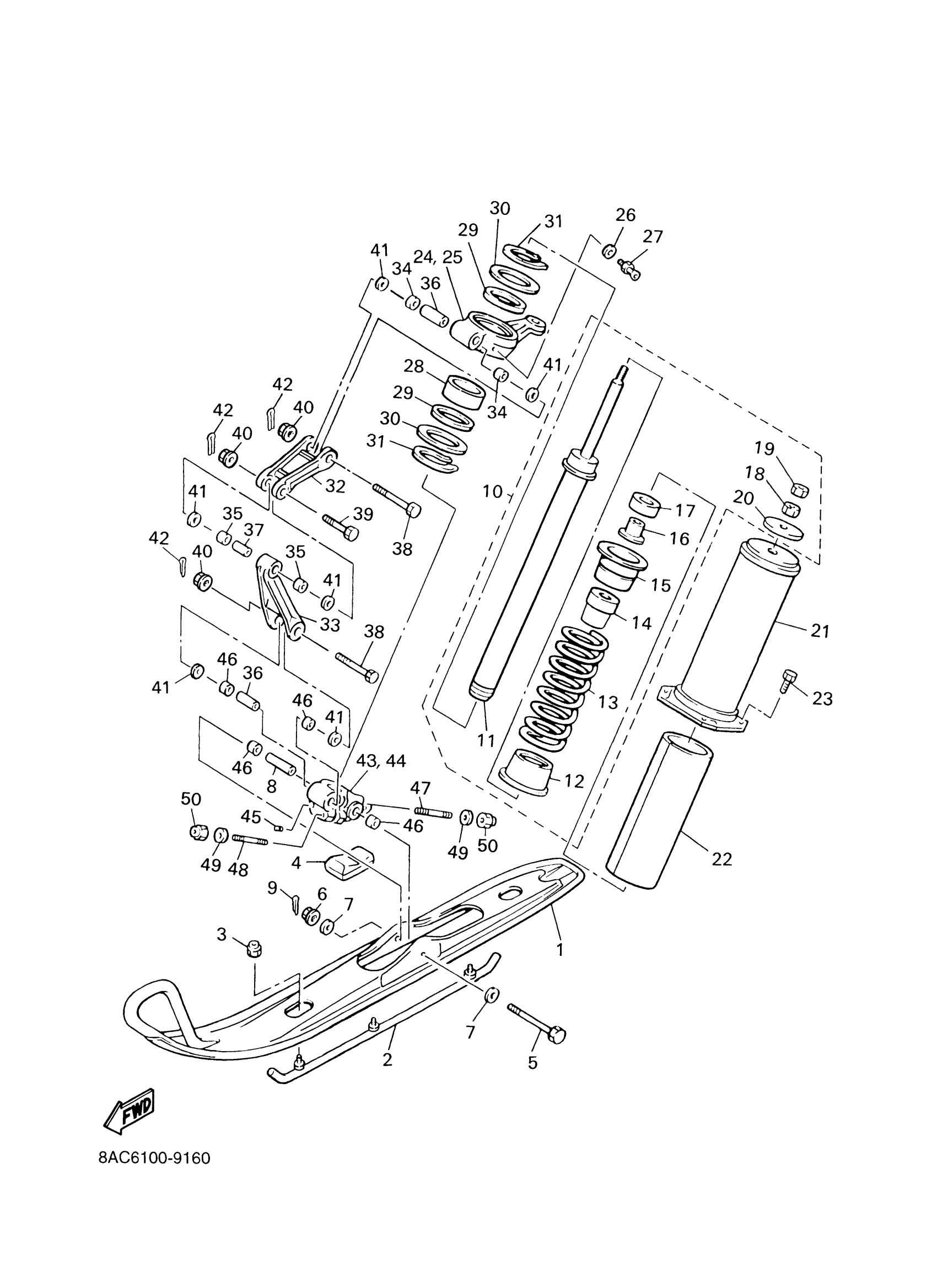

Yamaha VK540EJ (VK540 III) 8ACD 2004 SKI Diagram
#
1
SKI COMP. 1
8AT-23710-00-00
Unavailable
2
RUNNER 1
8AC-23731-01-00
Unavailable
3
NUT, SELF-LOCKING
90185-08169-00
$8.49
4
STOPPER 1
88T-23743-00-00
$23.99
5
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
6
NUT, NYLON
95707-10300-00
$8.49
7
WASHER (7A9)
90201-100F7-00
$9.49
8
COLLAR (8V0)
90387-106J3-00
$17.99
9
PIN, COTTER
91490-20025-00
$1.99
10
ABSORBER ASSY 1
8AC-2376A-00-00
Unavailable
11
DAMPER SUB ASSY
8AT-22401-00-00
Unavailable
12
SEAT, SPRING 2
82M-23777-00-00
Unavailable
13
SPRING, COMPRESSION (8L9)
90501-75612-00
$63.99
14
BUMP, STOP
89L-22493-00-00
Unavailable
15
PLATE, BACK UP
8AB-23788-00-00
Unavailable
16
COLLAR(82M)
90387-084R1-00
Unavailable
17
WASHER
82M-23779-00-00
Unavailable
18
. NUT
90170-08220-00
Unavailable
19
NUT(6TA)
95337-08600-00
Unavailable
20
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
21
HOLDER, ABSORBER
8AT-2376J-00-00
Unavailable
22
PROTECTOR
8L0-2376R-00-00
Unavailable
23
BOLT, HEXAGON
97017-06020-00
Unavailable
24
ARM, OUTSIDE 1
82M-23851-00-00
Unavailable
25
ARM, OUTSIDE 2
8AT-23852-00-00
Unavailable
26
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
27
NIPPLE, GREASE
93700-06M03-00
Unavailable
28
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
29
OIL SEAL (8U7)
93109-53036-00
Unavailable
30
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
30
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
31
CIRCLIP (8L9)
93410-52061-00
Unavailable
32
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
33
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
34
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
35
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
36
COLLAR(89A)
90387-101Y9-00
Unavailable
37
COLLAR (8L0)
90387-100A4-00
Unavailable
38
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
40
NUT, NYLON
95707-10300-00
$8.49
41
WASHER PLATE 626441260000
90202-14037-00
Unavailable
42
PIN, COTTER
91490-20025-00
$1.99
43
BRACKET 1
84M-2376E-00-00
Unavailable
44
BRACKET 2
84M-2377E-00-00
Unavailable
45
BOLT, SET (8K2)
90113-06039-00
Unavailable
46
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
47
BOLT, STUD 3
95617-08655-00
Unavailable
48
BOLT, STUD 3
95617-08640-00
Unavailable
49
WASHER(6TA)
92907-08600-00
Unavailable
50
NUT, NYLON
95717-08300-00
Unavailable
