- VK540EJ (VK540 III) 8ACD 2004
PRIMARY SHEAVE

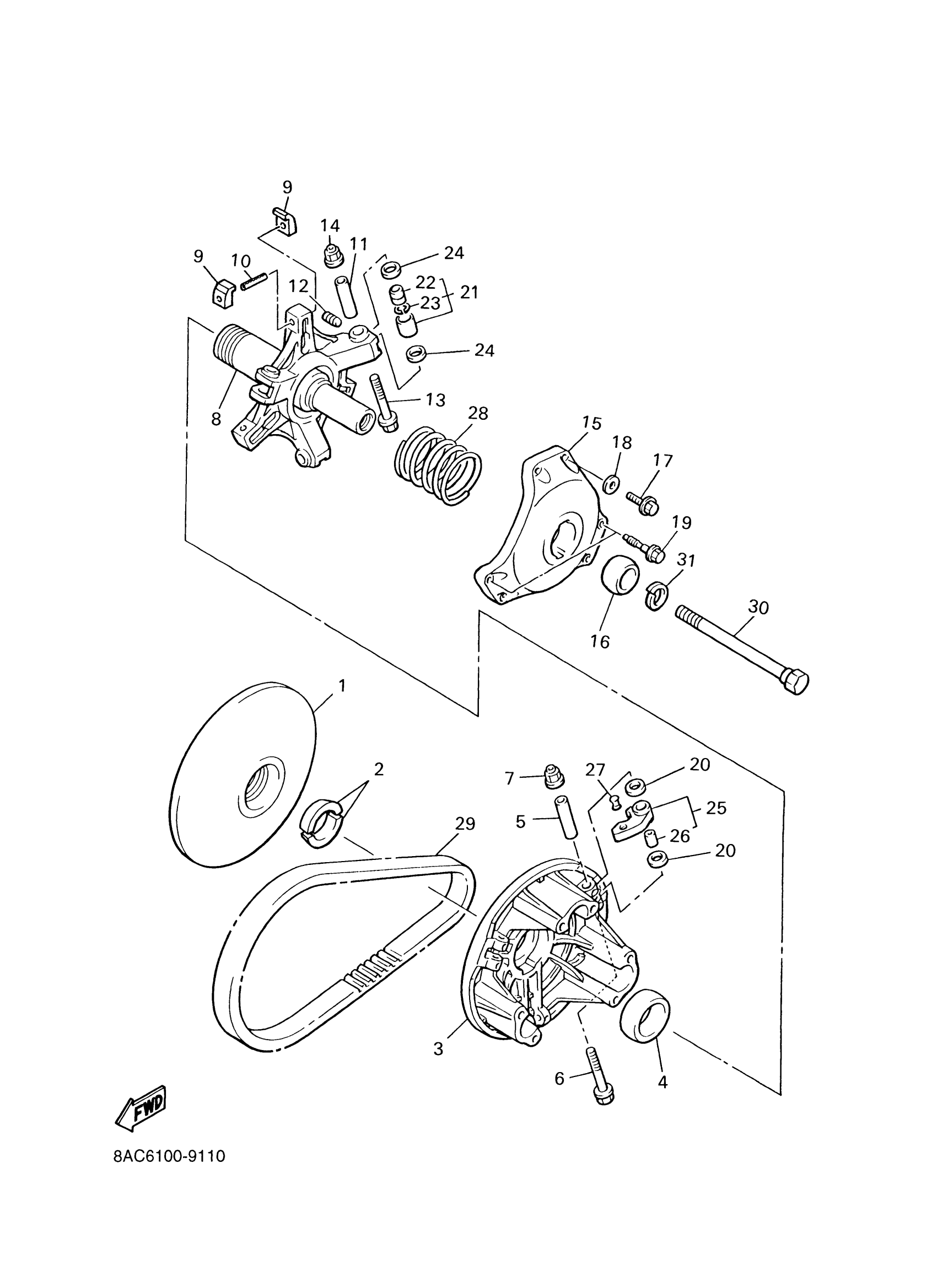

Yamaha VK540EJ (VK540 III) 8ACD 2004 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
88R-17611-02-00
$113.99
2
STOPPER
8V0-17639-00-00
$14.99
3
SHEAVE, PRIMARY SLIDING
89F-17621-00-00
Unavailable
4
BUSH(88R)
90389-41031-00
$78.99
5
COLLAR
90387-0514T-00
$16.99
6
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
7
NUT, S/L FLANGE
95607-05200-00
$9.49
8
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
9
SLIDER
8BW-17653-00-00
$16.49
10
PIN, SPRING (7F7)
91609-50032-00
$4.14
11
COLLAR
90387-0514T-00
$16.99
12
BOLT, SET
90113-05041-00
$8.49
13
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
14
NUT, S/L FLANGE
95607-05200-00
$9.49
15
CAP
88R-17631-01-00
Unavailable
16
BUSH(83R)
90389-28032-00
Unavailable
17
BOLT, HEXAGON
97017-06030-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
BOLT(89J)
90109-066F4-00
Unavailable
20
WASHER, PLATE(88R)
90202-08204-00
Unavailable
21
ROLLER, COMP
88R-17624-01-00
Unavailable
22
BUSH(88K)
90386-08183-00
Unavailable
23
CIRCLIP(88K)
93450-13133-00
Unavailable
24
WASHER, PLATE(88R)
90202-08204-00
Unavailable
25
WEIGHT COMP
8AT-17605-00-00
Unavailable
26
BUSH(88R)
90386-08182-00
Unavailable
27
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
27
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
28
SPRING, COMPRESSION(8AT)
90501-481J1-00
Unavailable
28
SPRING, COMPRESSION(89F)
90501-556G6-00
Unavailable
28
SPRING, COMPRESSION(8AX)
90501-581J7-00
Unavailable
29
V-BELT
89L-17641-02-00
Unavailable
30
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
31
WASHER(JN5)
92907-16100-00
Unavailable
