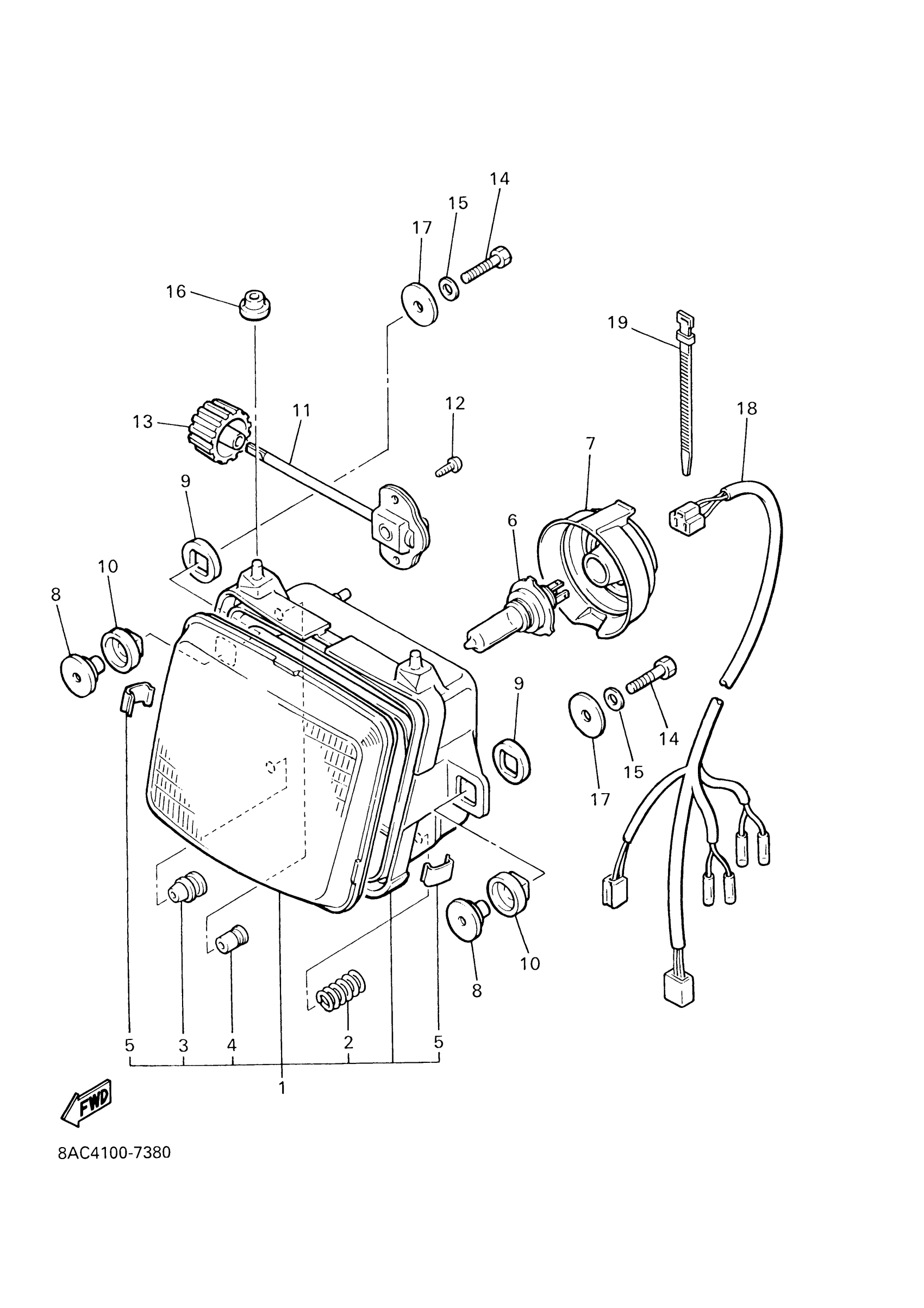

Yamaha VK540EJ (VK540 III) 8ACD 2004 HEADLIGHT Diagram

HEADLIGHT UNIT ASSY

84R-8430A-A0-00

Unavailable

. SPRING, SCREW

51L-84332-00-00

Unavailable

HOLDER

3AJ-8431U-00-00

$9.99

. NUT, ADJUSTING

51L-84334-00-00

Unavailable

. SPRING, REFLECTOR

36Y-84324-00-00

Unavailable

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

COVER, SOCKET

36Y-84397-00-00

Unavailable

COLLAR, BODY FITTING

498-84145-60-00

$6.99

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

GEAR UNIT ASSY

83R-8430M-00-00

Unavailable

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

KNOB ASSY

26H-8432M-00-00

Unavailable

BOLT (8K4)

90101-08499-00

Unavailable

WASHER(6TA)

92907-08600-00

$3.03

GROMMET

36Y-84354-00-00

Unavailable

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

CORD, HEADLIGHT

8AT-84359-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable
