Description

Price

1

DISC, BRAKE (RIGHT)

83R-25831-00-00

Unavailable

2

CALIPER BODY COMP.1

87R-25730-01-00

$220.99

3

SCREW, ADJUSTING 1

86M-25738-00-00

$17.49

4

LEVER, BRAKE

87R-25726-01-00

Unavailable

5

SHIM, CALIPER

86M-25827-00-00

Unavailable

6

LOCK, ONE WAY 2

86M-25773-00-00

Unavailable

7

RATCHET, ADJUSTING

86M-25771-00-00

$16.49

8

COVER

86M-25772-00-00

Unavailable

9

BOLT, CALIPER

86M-25818-00-00

Unavailable

10

BRACKET, CALIPER

87R-25721-00-00

$34.99

11

BOLT 3

86M-25826-00-00

$1.51

12

SPRING, RETURN

87R-25743-00-00

Unavailable

13

BRACKET, ADJUSTING

87R-25722-00-00

Unavailable

14

PLATE, BACK UP

86M-25733-00-00

Unavailable

15

BOLT, FITTING

86M-25833-00-00

$7.99

16

PIN 2

86M-25744-00-00

Unavailable

17

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

18

PAD, CALIPER 2

89J-25811-00-00

Unavailable

19

PAD, CALIPER 2

89J-25911-00-00

Unavailable

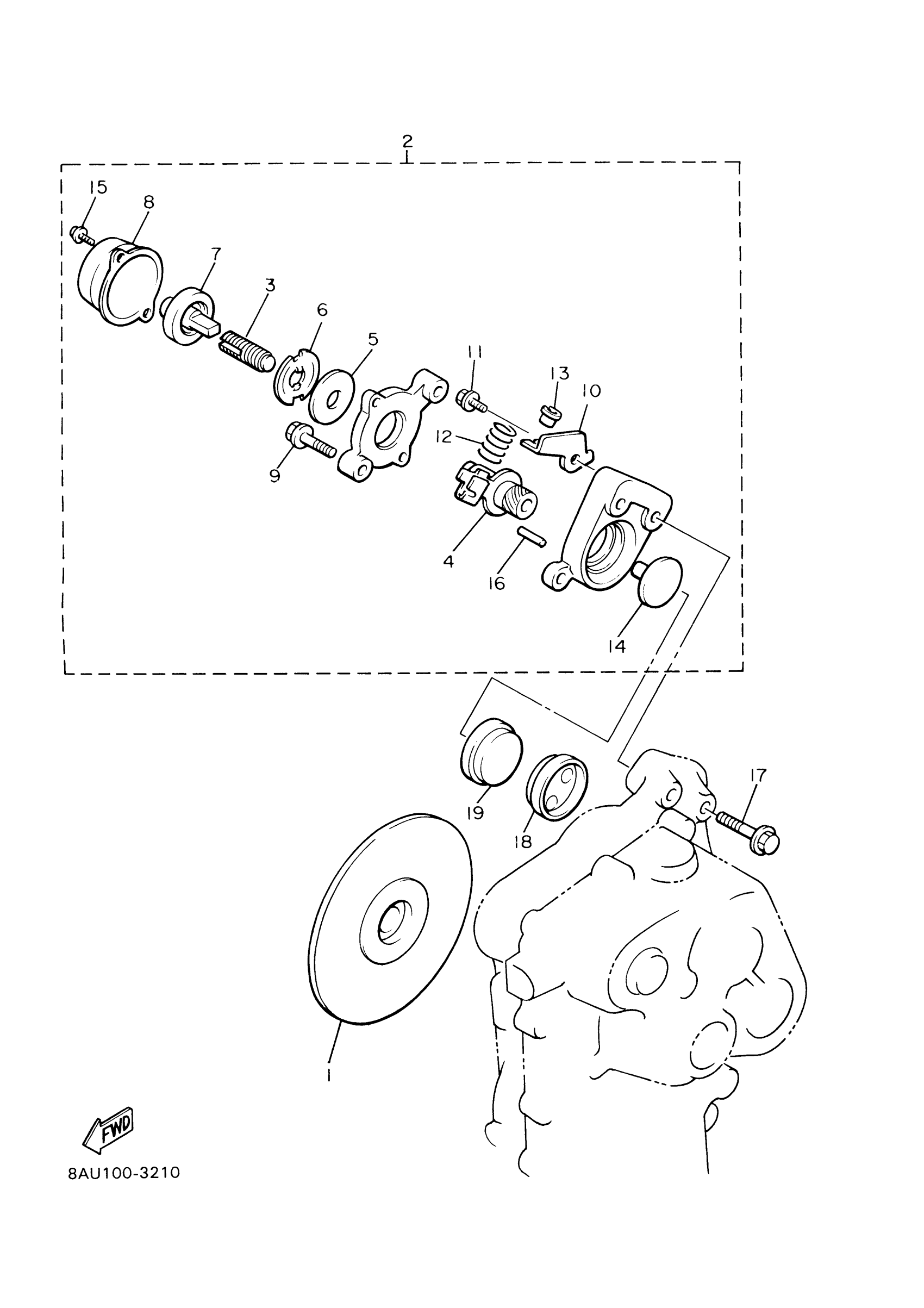

Yamaha VK540EJ (VK540 III) 8ACD 2004 BRAKE Diagram

DISC, BRAKE (RIGHT)

CALIPER BODY COMP.1

SCREW, ADJUSTING 1

LEVER, BRAKE

SHIM, CALIPER

LOCK, ONE WAY 2

RATCHET, ADJUSTING

COVER

BOLT, CALIPER

BRACKET, CALIPER

BOLT 3

SPRING, RETURN

BRACKET, ADJUSTING

PLATE, BACK UP

BOLT, FITTING

PIN 2

BOLT, FLANGE(8AB)

PAD, CALIPER 2

PAD, CALIPER 2
