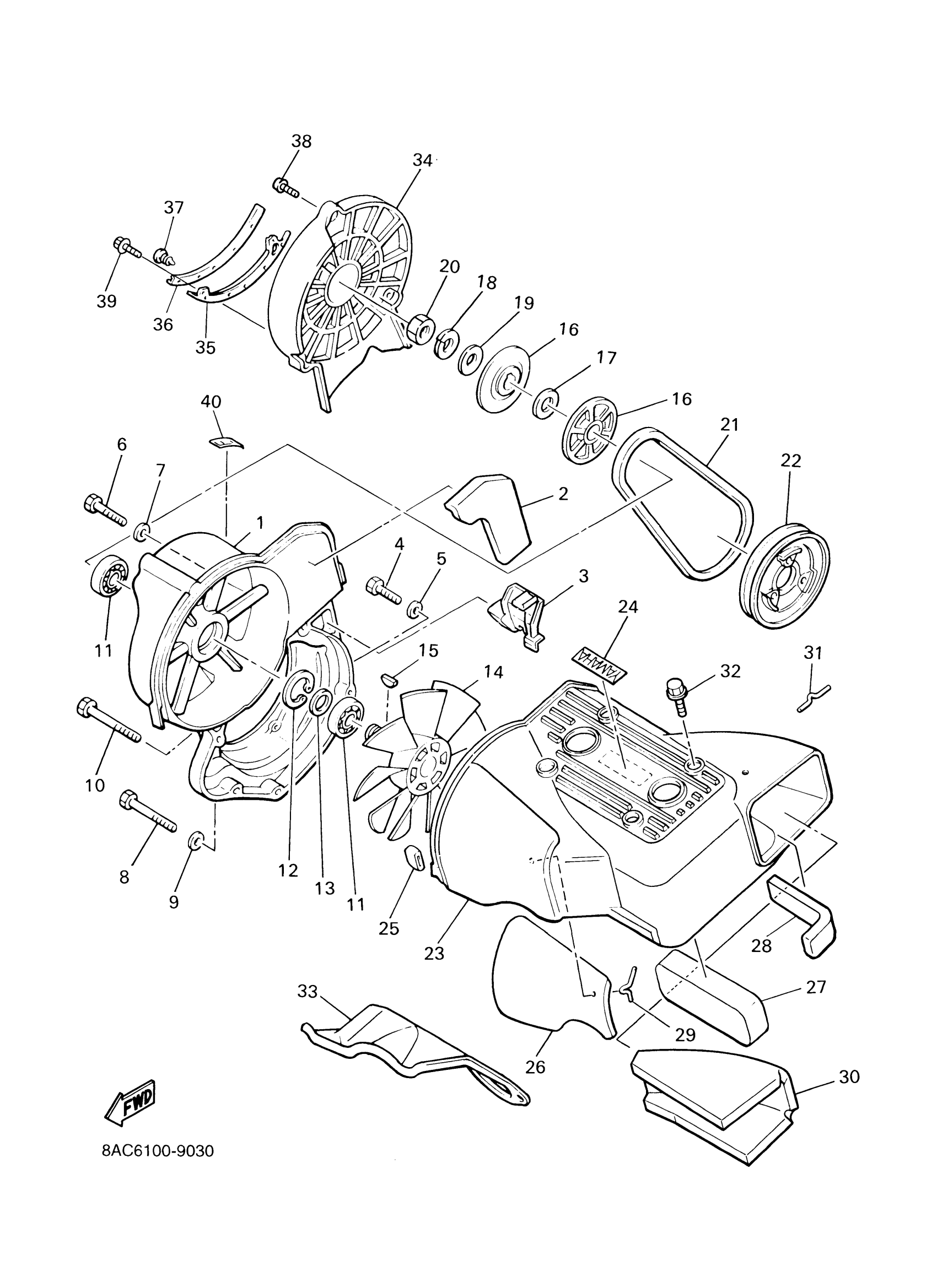

Yamaha VK540EJ (VK540 III) 8ACD 2004 AIR SHROUD FAN Diagram

CASE, FAN

88T-12621-01-00

Unavailable

DAMPER, SHROUD 6

8Y0-12679-00-00

Unavailable

DAMPER, AIR SHROUD 1

8Y0-12658-00-00

Unavailable

BOLT (8K4)

90101-08499-00

Unavailable

WASHER(6TA)

92907-08600-00

$3.03

BOLT, HEXAGON

97017-08055-00

$9.49

WASHER(6TA)

92907-08600-00

$3.03

BOLT, HEXAGON

97017-08075-00

$49.99

WASHER(6TA)

92907-08600-00

$3.03

BOLT, HEXAGON

97017-08075-00

$49.99

BEARING

93306-20348-00

$40.99

CIR-CLIP (70R)

93420-40064-00

Unavailable

WASHER, PLATE (8H8)

90201-17713-00

$7.49

FAN

8H8-12611-01-00

$89.99

KEY, WOOD RUFF (324)

90280-05014-00

$9.49

PULLEY 2

8H8-12619-01-00

Unavailable

WASHER, CLAW (8H8)

90214-17017-00

Unavailable

WASHER, CLAW (1.0T)

90214-17018-00

Unavailable

WASHER(JN5)

92907-16100-00

Unavailable

WASHER, PLATE (8H8)

90201-17713-00

$7.49

NUT

90170-16425-00

Unavailable

BELT

8H8-12612-00-00

Unavailable

PULLEY 1

8H8-12618-01-00

Unavailable

AIR SHROUD CYL. 1

8H8-12651-02-00

Unavailable

EMBLEM, YAMAHA

99246-00080-00

Unavailable

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

Unavailable

DAMPER, SHROUD 2

8H8-12659-00-00

Unavailable

DAMPER, SHROUD 4

8H8-12669-00-00

Unavailable

DAMPER, AIR SHROUD 5

8V8-12678-00-00

Unavailable

91401-16025

91401-16025-00

Unavailable

DAMPER, SHROUD 6

8AT-12679-00-00

Unavailable

91401-16025

91401-16025-00

Unavailable

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

AIR SHROUD, CYLINDER 2

8H8-12652-00-00

Unavailable

COVER, FAN CASE

8L0-12616-00-00

Unavailable

STAY 1

8Y0-12637-02-00

Unavailable

DAMPER, DUCT

8Y0-12687-02-00

Unavailable

RIVET(8Y0)

90269-05051-00

Unavailable

SCREW, BINDING

98907-06025-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

LABEL, CAUTION

8K4-12628-00-00

Unavailable
