- VK540EH (VK 540 III) 8ACB 2003
TRACK DRIVE 2

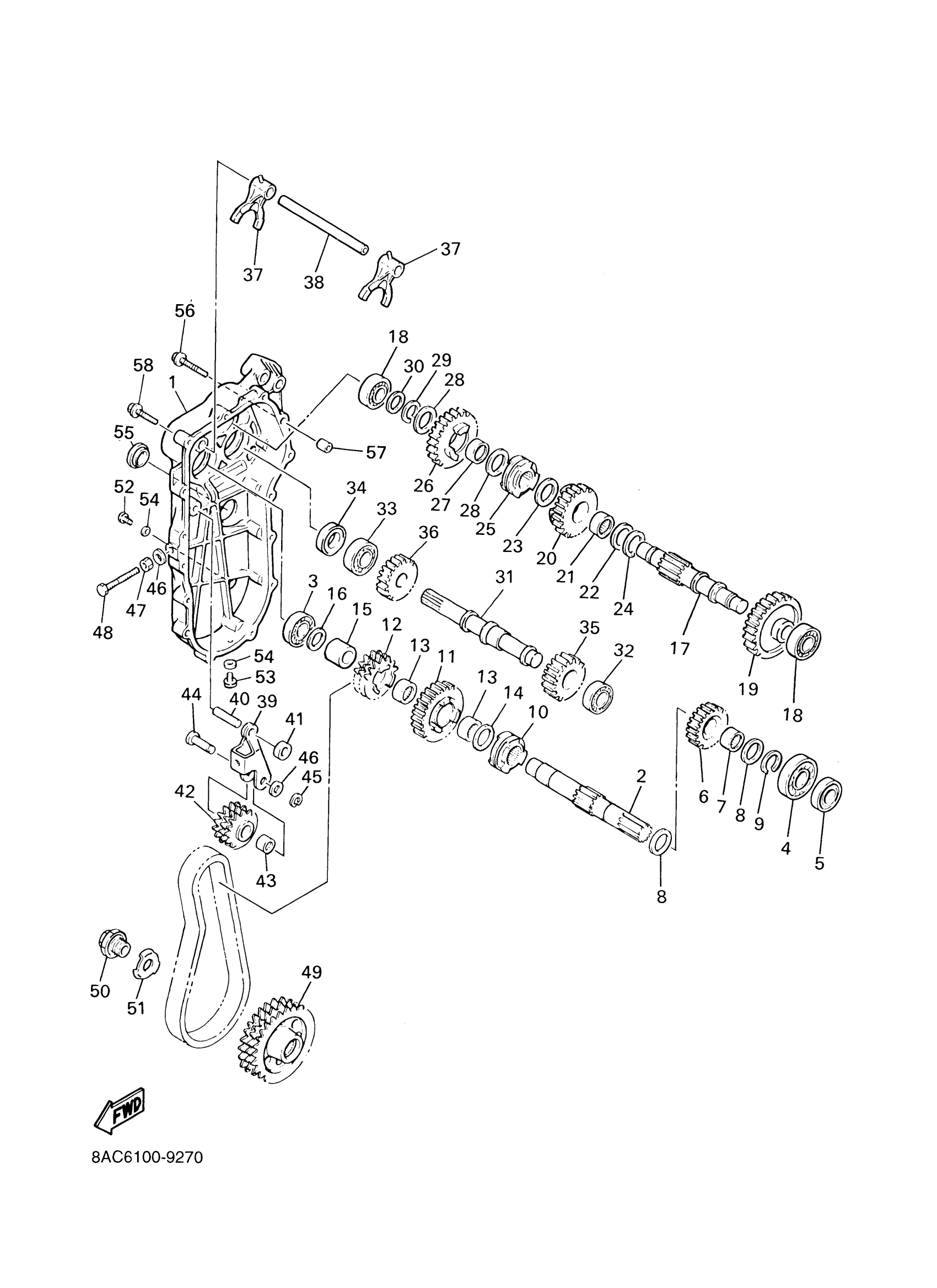

Yamaha VK540EH (VK 540 III) 8ACB 2003 TRACK DRIVE 2 Diagram
#
1
CAP, HOUSING
83R-47543-00-00
$437.99
2
AXLE, DRIVE
85R-17421-00-00
Unavailable
3
BEARING(1GJ)
93306-20458-00
$43.99
4
BEARING(1LX)
93306-37204-00
$47.99
5
OIL SEAL (22X42X7)
93102-22014-00
$12.49
6
GEAR, 2ND PINION
83R-17121-00-00
$55.99
7
BEARING, CYLINDRICAL(83R)
93311-42265-00
Unavailable
8
WASHER, PLATE(83R)
90201-224L4-00
$8.49
9
CIRCLIP(1EY)
99009-22400-00
$8.49
10
DOG, TRANSMISSION SHIFT
83R-17492-10-00
Unavailable
11
GEAR, 3RD PINION
8AT-17131-00-00
Unavailable
12
SPROCKET, CHAIN DRIVE
83R-17682-00-00
Unavailable
13
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
14
WASHER, PLATE(83R)
90201-224L4-00
$8.49
15
COLLAR(85R)
90387-226V7-00
$14.99
16
WASHER, PLATE (3Y1)
90201-20792-00
Unavailable
17
AXLE, COUNTER
83R-17431-00-00
Unavailable
18
BEARING (7X9)
93306-20327-00
Unavailable
19
GEAR, 4TH PINION
8AT-17141-00-00
Unavailable
20
GEAR, 5TH PINION
83R-17151-00-00
Unavailable
21
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
22
WASHER, PLATE(83R)
90201-224L4-00
$8.49
23
WASHER, PLATE(83R)
90201-225L2-00
Unavailable
24
CIRCLIP(1EY)
99009-22400-00
$8.49
25
DOG, TRANSMISSION SHIFT
83R-17492-10-00
Unavailable
26
GEAR, REVERSE PINION 1
83R-17143-00-00
Unavailable
27
BEARING, CYLINDRICAL (4X7)
93317-22021-00
Unavailable
28
WASHER, PLATE (3Y1)
90201-20792-00
Unavailable
29
CIRCLIP(1AR)
99009-20400-00
Unavailable
30
WASHER, PLATE (2K7)
90201-17682-00
Unavailable
31
AXLE, IDLE
83R-17432-01-00
Unavailable
32
BEARING (7X9)
93306-20327-00
Unavailable
33
BEARING(1GJ)
93306-20458-00
$43.99
34
OIL SEAL(4BA)
93102-20447-00
Unavailable
35
GEAR, REVERSE WHEEL1
83R-17243-00-00
Unavailable
36
GEAR, REVERSE PINION 2
83R-17153-00-00
Unavailable
37
FORK, SHIFT 1
83R-18511-00-00
Unavailable
38
BAR, SHIFT FORK GUIDE 1
83R-18531-00-00
Unavailable
39
HOLDER
83R-47613-00-00
Unavailable
40
PIN, DOWEL(83R)
93612-44229-00
Unavailable
41
COLLAR (4V4)
90387-121E8-00
Unavailable
42
WHEEL
83R-47612-00-00
Unavailable
43
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
Unavailable
44
PIN(86P)
90249-12216-00
Unavailable
45
CIRCLIP(10Y)
99009-12400-00
Unavailable
46
WASHER SEAL 256111730200
90210-10004-00
Unavailable
47
NUT (3WP1)
95317-10700-00
Unavailable
48
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
49
SPROCKET, CHAIN DRIVEN
83R-47548-00-00
Unavailable
50
BOLT, WASHER BASED(83R)
90105-27484-00
Unavailable
51
WASHER, LOCK(83R)
90215-39268-00
Unavailable
52
BOLT(3JP)
97017-06010-00
Unavailable
53
SCREW, BINDING
98907-06008-00
Unavailable
54
GASKET 838153840000
90430-06016-00
Unavailable
55
PLUG(83R)
90338-30219-00
Unavailable
56
BOLT, FLANGE
95817-06045-00
Unavailable
57
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
58
BOLT, FLANGE
95817-06035-00
Unavailable
