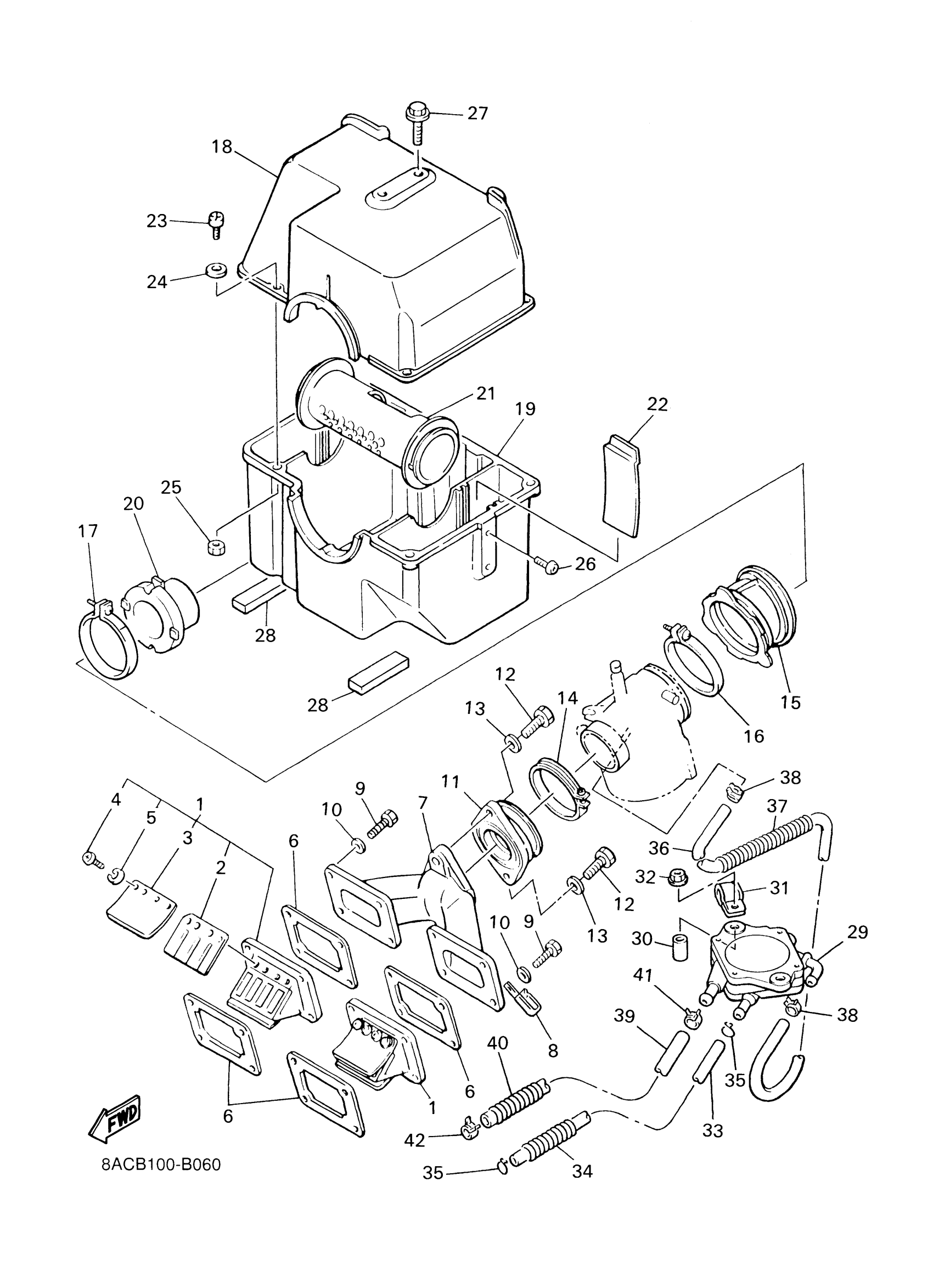

Yamaha VK540EH (VK 540 III) 8ACB 2003 INTAKE Diagram
#
1
REED VALVE ASSY
8AT-13610-00-00
$165.99
2
REED, VALVE
8AT-13613-00-00
$33.99
3
STOPPER REED VALVE
8H8-13616-00-00
$4.77
4
SCREW, PAN HEAD(3AC)
98517-03008-00
$2.97
5
WASHER, SPRING
92990-03100-00
$8.49
6
GASKET, MANIFOLD
8Y7-13556-01-00
$9.49
7
JOINT, CARBURETOR
83R-13565-00-00
Unavailable
8
CLAMP(51Y)
90465-08277-00
Unavailable
9
BOLT, HEXAGON
97017-06025-00
$4.24
10
WASHER(6TA)
92907-06600-00
$2.72
11
MANIFOLD
8G8-13555-01-00
$114.99
12
BOLT, HEXAGON
97017-08025-00
$10.49
13
WASHER(6TA)
92907-08600-00
$3.03
14
BAND
86M-13575-00-00
$19.49
15
JOINT, AIR CLEANER 1
83R-14453-00-00
$45.99
16
CLAMP, HOSE (29L)
90460-68230-00
Unavailable
17
HOSE CLAMP ASSY(3TU)
90450-99050-00
Unavailable
18
SILENCER
8H8-14431-00-00
Unavailable
19
SILENCER
8H8-14441-00-00
Unavailable
20
PIPE
83R-14465-00-00
Unavailable
21
PIPE, BALANCE 2
8H8-14466-00-00
Unavailable
22
PLATE
8H8-14477-00-00
Unavailable
23
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
24
WASHER(1RW)
92907-05600-00
Unavailable
25
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
26
SCREW, PAN
98507-06010-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
DAMPER 1
83R-14425-00-00
Unavailable
29
FUEL PUMP ASSY
8AT-24410-00-00
Unavailable
30
COLLAR (8U7)
90387-105G5-00
Unavailable
31
CLAMP (706)
90465-06100-00
Unavailable
32
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
33
HOSE (L400)
90445-116K9-00
Unavailable
34
SPRING, COMPRESSION (3LD4)
90501-084G9-00
Unavailable
35
CLIP (7K7)
90467-11044-00
Unavailable
36
HOSE (L420)
90445-092K1-00
Unavailable
37
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
38
CLIP (8A1)
90467-09026-00
Unavailable
39
HOSE (L210)
90445-110F5-00
Unavailable
40
PROTECTOR, PIPE
84M-24327-00-00
Unavailable
41
CLIP (7K7)
90467-11044-00
Unavailable
42
CLIP (8J7)
90467-11009-00
Unavailable
