- VK540EH (VK 540 III) 8ACB 2003
CRANKSHAFT PISTON

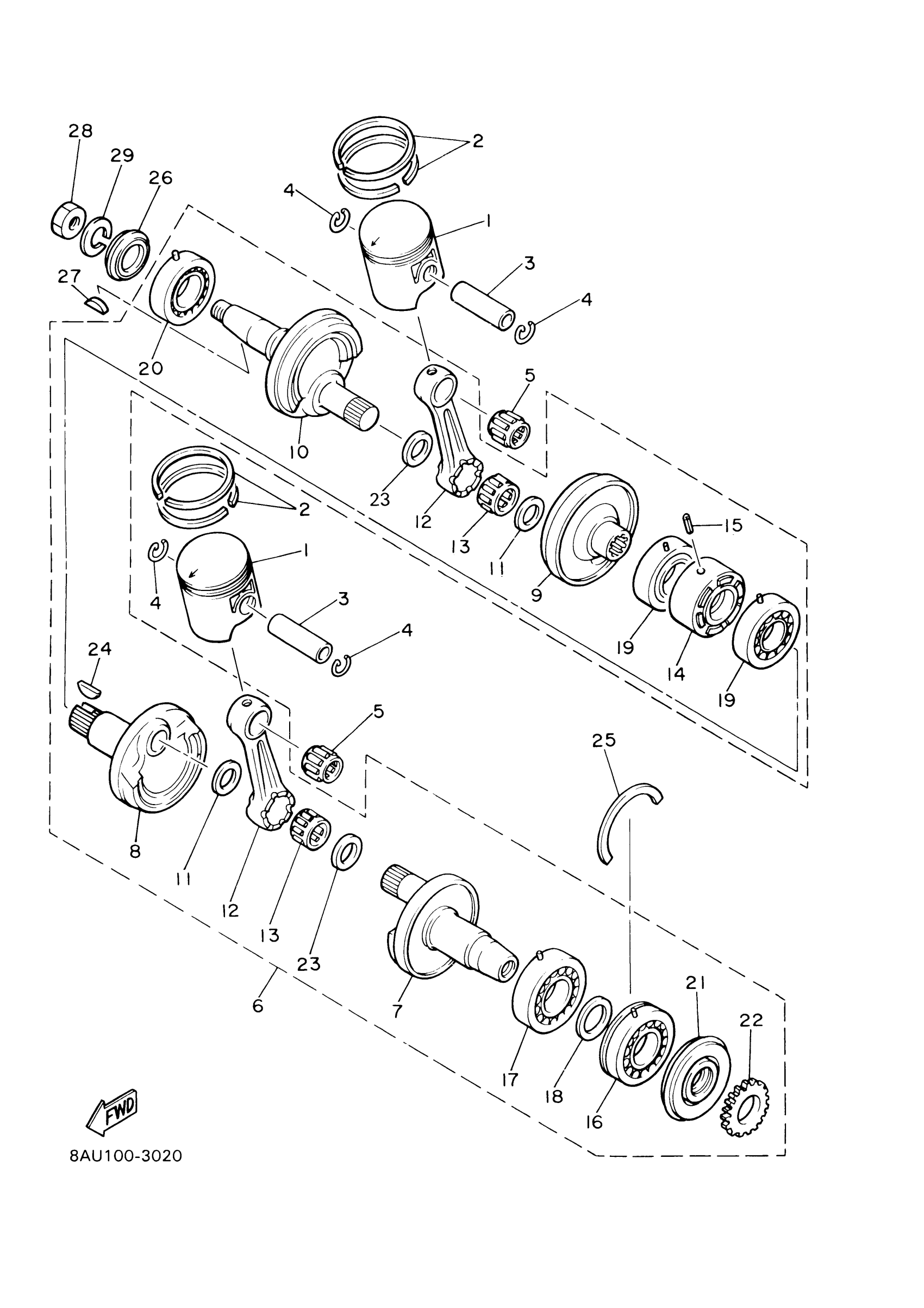

Yamaha VK540EH (VK 540 III) 8ACB 2003 CRANKSHAFT PISTON Diagram
#
1
PISTON (STD)
8R6-11631-00-95
$171.99
1
PISTON (0.25MM O/S)
8R6-11635-00-00
$178.99
1
PISTON (2ND 0/S 0.50MM)
8R6-11636-00-00
Unavailable
2
PISTON RING SET (STD)
8R6-11601-00-00
$70.99
2
PISTON RING SET (1ST O/S)
8R6-11601-10-00
$64.99
2
PISTON RING SET (2ND O/S)
8R6-11601-20-00
$60.99
3
PIN, PISTON
8H8-11633-00-00
$36.99
4
CIRCLIP (8H0)
93450-21053-00
$3.85
5
BRG,CYL-CAL ROLLER 25G KY
93310-320G0-00
$47.99
6
CRANKSHAFT ASSY
8AT-11400-01-00
$1,188.99
7
CRANK 1
83R-11412-01-00
$437.99
8
CRANK 2
8H8-11422-01-00
Unavailable
9
CRANK 3
8H8-11432-01-00
Unavailable
10
CRANK 4
8AT-11442-00-00
Unavailable
11
WASHER (152-11685-00)
90209-24073-00
$14.99
12
ROD, CONNECTING
8R6-11651-00-00
Unavailable
13
BRG,CYL-CAL ROLLER (8R6)
93310-524K4-00
Unavailable
14
SEAL, LABYRINTH 1
8H8-11515-00-00
Unavailable
15
PIN, SPRING (663)
91690-30010-00
Unavailable
16
BEARING(83R)
93306-30627-00
Unavailable
17
BEARING(83R)
93306-30627-00
Unavailable
18
WASHER (8H0)
90201-34683-00
Unavailable
19
BEARING (8G8)
93306-20617-00
Unavailable
20
BEARING (8G8)
93306-20617-00
Unavailable
21
OIL SEAL (878).
93103-32095-00
Unavailable
22
GEAR, PUMP DRIVE
8K2-13178-00-00
Unavailable
23
WASHER, CRANK PIN
8A7-11685-00-00
Unavailable
24
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
25
CIRCLIP (8H8)
93440-78069-00
Unavailable
26
OIL SEAL(83R)
93103-32156-00
Unavailable
27
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
28
NUT
90170-16425-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
