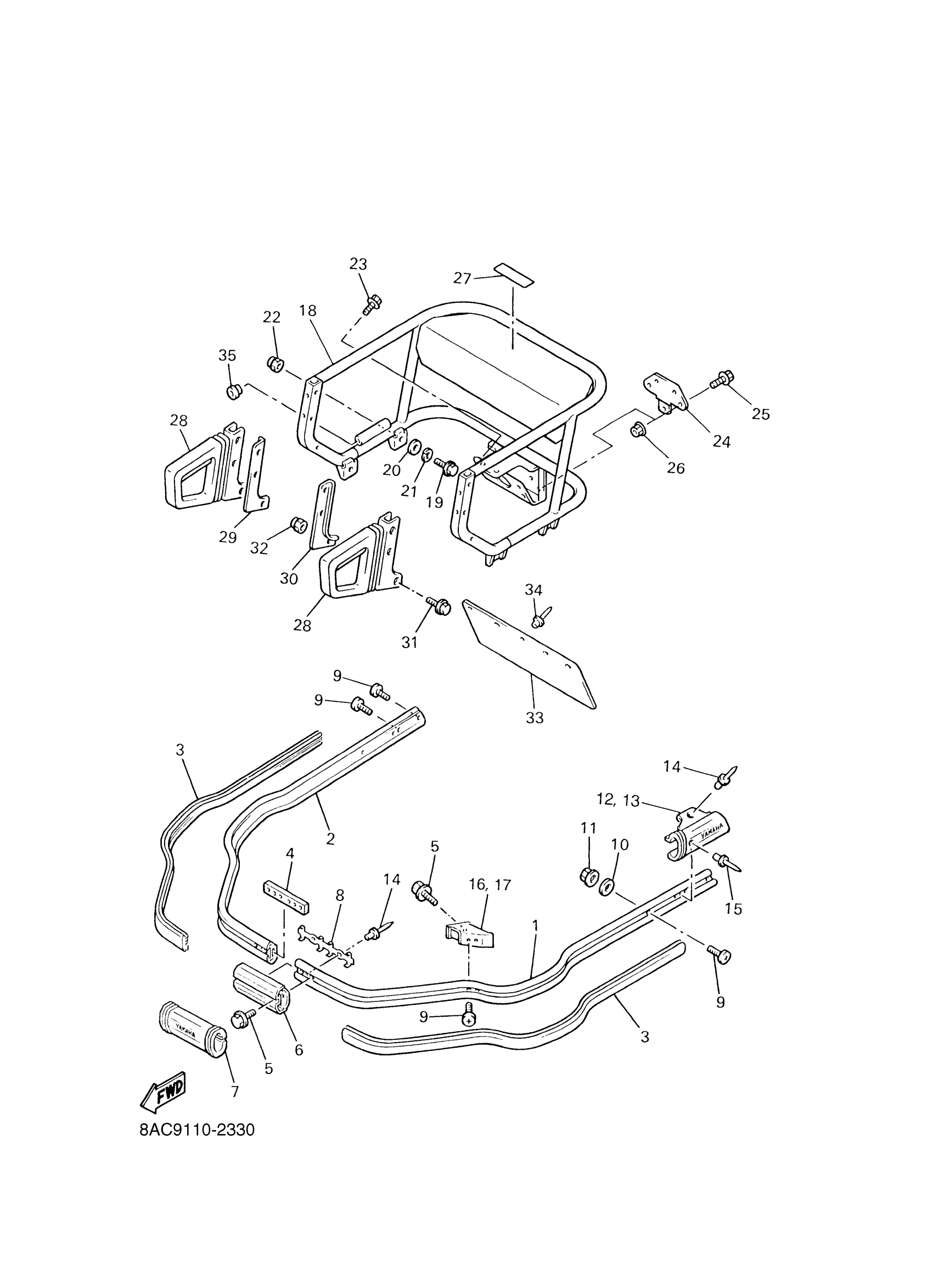

Yamaha VK540EH (VK 540 III) 8ACB 2003 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8AT-77511-01-00

Unavailable

2

BUMPER, FRONT 2

8AT-77512-01-00

Unavailable

3

BUSH, RUBBER 2

8AT-77516-00-00

$44.99

4

SPACER, BUMPER

8AT-77529-00-00

Unavailable

5

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

6

PROTECTOR 2

8AT-77552-00-00

Unavailable

7

PROTECTOR 1

8AT-77551-01-00

Unavailable

8

PROTECTOR 3

8AT-77553-00-00

Unavailable

9

BOLT, BUTTON

92017-08020-00

$7.49

10

WASHER(6TC)

92907-08200-00

$8.49

11

NUT(6TA)

95337-08600-00

$8.49

12

STOPPER, 1

8AT-77521-00-00

$83.99

13

STOPPER 2

8AT-77522-00-00

$83.99

14

RIVET, BLIND

90267-48018-00

$9.49

15

RIVET, BLIND (J45)

90267-48149-00

$1.64

16

END, BUMPER

8AT-77523-00-00

Unavailable

17

END, BUMPER

8AT-77524-00-00

Unavailable

18

REAR BUMPER COMP.

8AC-77540-00-00

Unavailable

19

BOLT, FLANGE

95817-08014-00

Unavailable

20

WASHER(6TC)

92907-08200-00

$8.49

21

WASHER(JN5)

92907-08100-00

Unavailable

22

NUT, CAP

95307-08800-00

Unavailable

23

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

24

BRACKET, HITCH 2

84R-77592-00-00

Unavailable

25

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

26

NUT, SELF-LOCKING

90185-08169-00

Unavailable

27

EMBLEM

89X-24897-00-00

Unavailable

28

GRIP, ASSIST 1

8X0-77571-00-00

Unavailable

29

WASHER 1

8X0-77525-00-00

Unavailable

30

WASHER 2

8X0-77526-00-00

Unavailable

31

BOLT, FLANGE

95817-08040-00

Unavailable

32

NUT, CROWN(82U)

90176-08063-00

Unavailable

33

FLAP

83R-77595-00-00

Unavailable

34

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

35

GROMMET (8L1)

90480-15268-00

Unavailable
