Description

Price

1

TRACK ASSY

8AC-47110-11-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

BRACKET 7

8CM-47419-10-00

$39.99

5

BOLT, FLANGE

90105-10029-00

$5.60

6

WASHER, PLATE (17K)

90201-106F2-00

$10.49

7

NUT(8CM)

90179-10670-00

$12.49

8

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

9

BEARING(8AB)

93306-00444-00

$41.99

10

CIRCLIP(5U8)

99009-42500-00

$8.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BOLT(8CM)

90101-08774-00

$7.49

13

SHAFT 4

8AT-47486-00-00

Unavailable

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

WASHER, PLATE (17K)

90201-106F2-00

$10.49

19

BOLT, FLANGE

95817-10030-00

Unavailable

20

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

GUIDE WHEEL ASSY

8AC-47550-00-00

Unavailable

24

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

25

BEARING(8AB)

93306-00444-00

$41.99

26

CIRCLIP(5U8)

99009-42500-00

$8.49

27

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

28

BEARING(8AE)

93306-20469-00

Unavailable

29

CIRCLIP(48Y)

99009-47500-00

Unavailable

30

COLLAR(83R)

90387-200U9-00

Unavailable

31

COLLAR(83R)

90387-205T6-00

Unavailable

32

COLLAR 3

8K2-47479-01-00

Unavailable

33

NUT, NYLON

95707-10300-00

Unavailable

34

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

35

REAR AXLE COMP.

8JN-47520-00-00

Unavailable

36

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

37

PIN, COTTER

91401-30025-00

Unavailable

38

BRACKET 7

8CM-47419-10-00

$39.99

39

BOLT, FLANGE

90105-10029-00

$5.60

40

WASHER, PLATE (17K)

90201-106F2-00

$10.49

41

NUT(8CM)

90179-10670-00

$12.49

42

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

43

BEARING(8AB)

93306-00444-00

$41.99

44

CIRCLIP(5U8)

99009-42500-00

$8.49

45

NUT, SELF-LOCKING

90185-08169-00

$8.49

46

BOLT(8CM)

90101-08774-00

$7.49

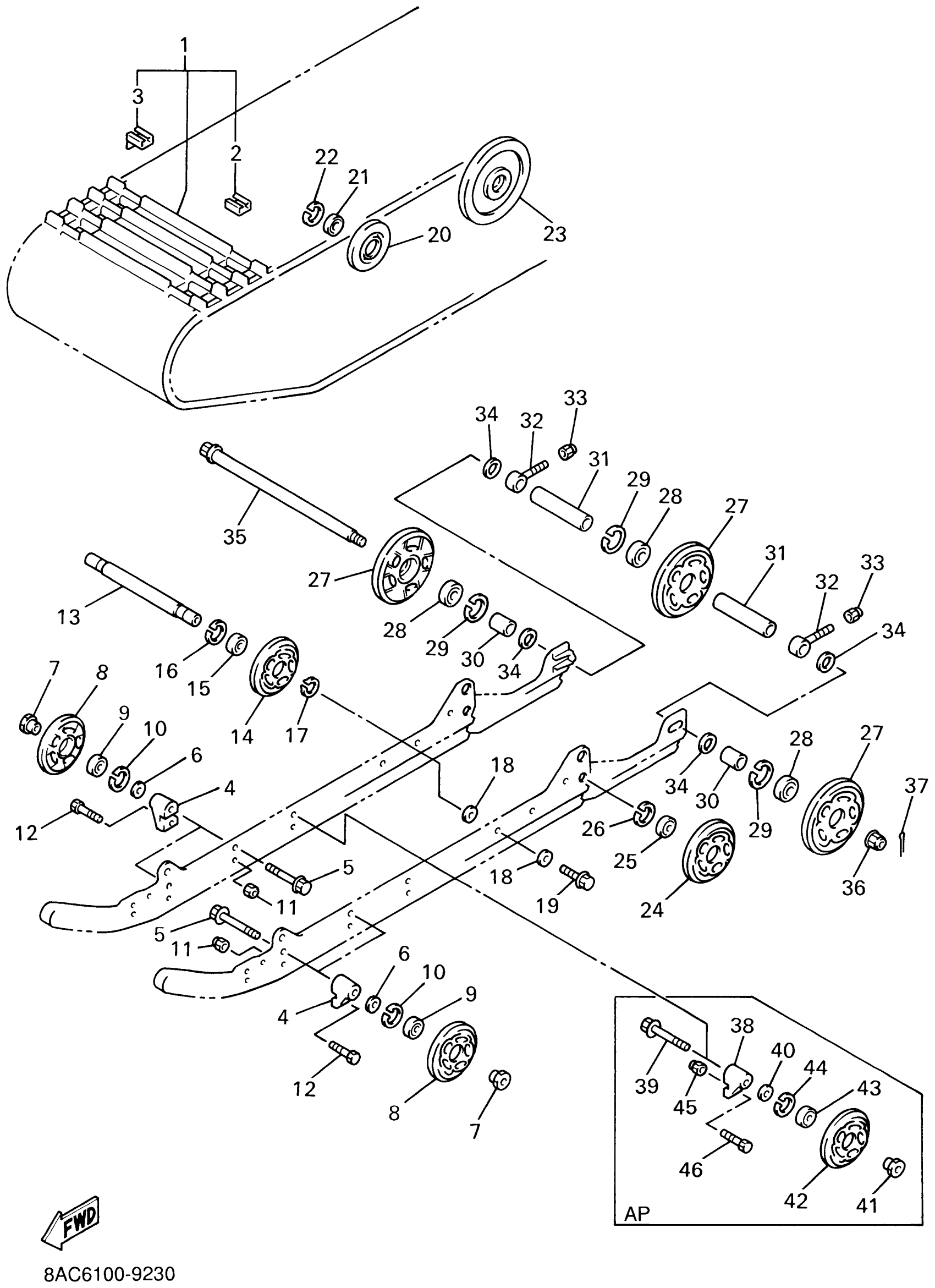

Yamaha VK540EG (VK540 III) 8AC9 2002 TRACK SUSPENSION 1 Diagram

TRACK ASSY

PLATE, REINFORCEMENT

METAL, SLIDE

BRACKET 7

BOLT, FLANGE

WASHER, PLATE (17K)

NUT(8CM)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

NUT, SELF-LOCKING

BOLT(8CM)

SHAFT 4

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

WASHER, PLATE (17K)

BOLT, FLANGE

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

GUIDE WHEEL ASSY

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

GUIDE WHEEL COMP.

BEARING(8AE)

CIRCLIP(48Y)

COLLAR(83R)

COLLAR(83R)

COLLAR 3

NUT, NYLON

WASHER, PLATE(89W)

REAR AXLE COMP.

NUT, SELF-LOCKING(83R)

PIN, COTTER

BRACKET 7

BOLT, FLANGE

WASHER, PLATE (17K)

NUT(8CM)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

NUT, SELF-LOCKING

BOLT(8CM)
