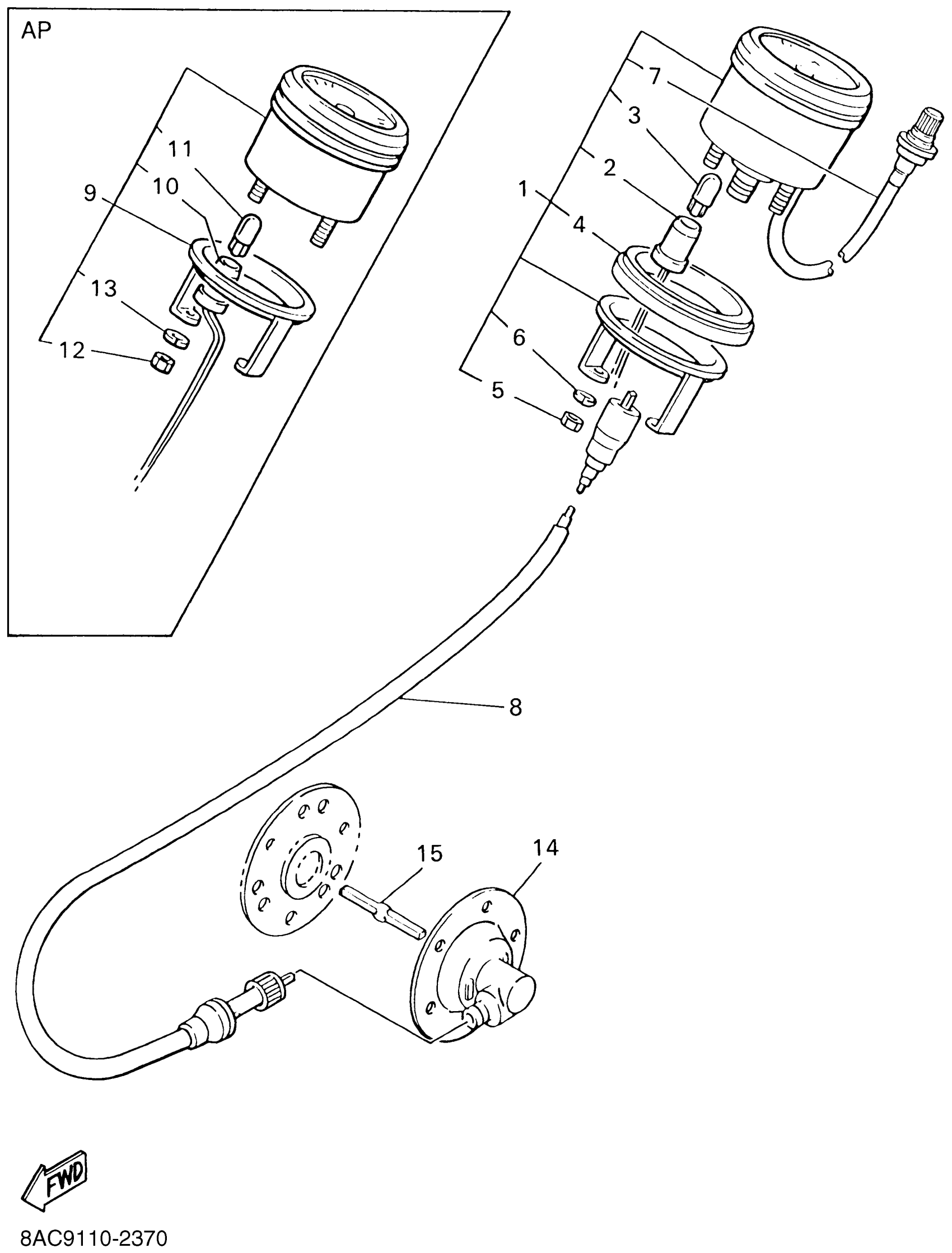

Yamaha VK540EG (VK540 III) 8AC9 2002 METER Diagram

SPEEDOMETER ASSY

87R-83510-40-00

Unavailable

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

DAMPER, METER

8G6-83523-00-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

$8.49

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

TRIP METER CABLE ASSY

8K1-83603-01-00

Unavailable

TACHOMETER CABLE ASSY

8H4-83560-00-00

$64.99

TACHOMETER ASSY

85L-83540-00-00

$335.99

SOCKET CORD ASSY

85L-83509-00-00

Unavailable

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

NUT, HEXAGON (663)

95380-05600-00

$8.49

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

METER GEAR HOUSING COMP

83R-47700-00-00

Unavailable

JOINT

8K4-47715-00-00

$5.60
