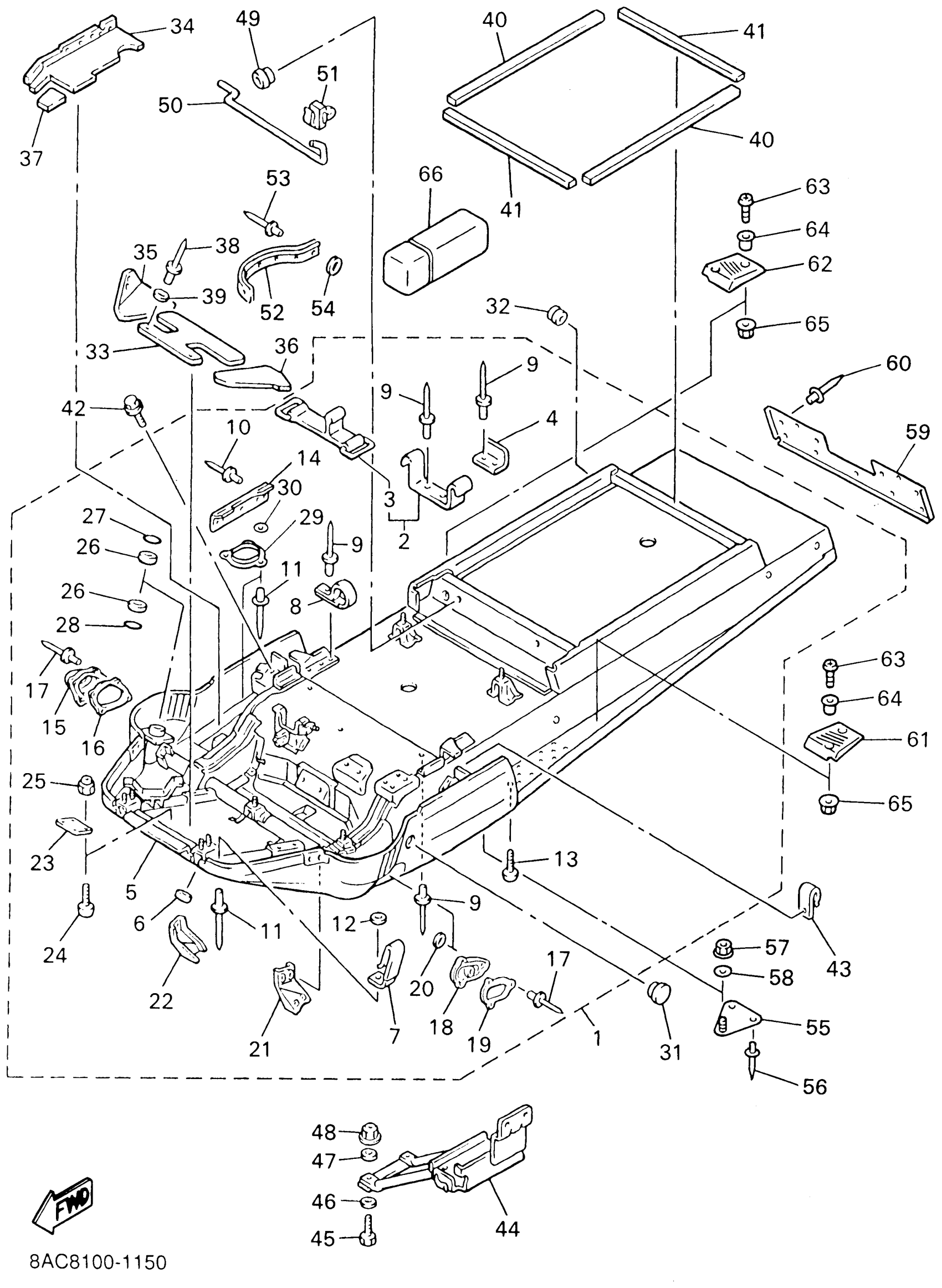

Yamaha VK540EG (VK540 III) 8AC9 2002 FRAME Diagram

#

Description
Price

1

FRAME COMP.

8AC-21910-00-00

Unavailable

2

BRACKET, TOOL BOX FITTING

81E-21945-00-00

$20.99

3

BAND, BATTERY

4J2-82131-01-00

$29.99

4

BRACKET, TOOL BOX FITTING

83R-21955-00-00

$8.99

5

. PANEL, SUB FRAME 1

8AC-21912-00-00

Unavailable

6

C0LLAR

90387-062M9-00

$9.49

7

CLAMP(51Y)

90465-08277-00

Unavailable

8

CLAMP

90462-10236-00

$10.49

9

RIVET, BLIND

90267-48060-00

$8.49

10

RIVET, BLIND (8M6)

90267-48051-00

$1.49

11

RIVET, BLIND

90267-48018-00

$9.49

12

WASHER, PLATE

90201-04027-00

$3.02

13

SCREW, BINDING

98907-06016-00

$9.49

14

PLATE, BACK UP

8AT-77527-01-00

Unavailable

15

COVER, STEERING

8AT-23818-00-00

Unavailable

16

WASHER 2

8AT-77526-00-00

Unavailable

17

RIVET, BLIND

90267-40029-00

Unavailable

18

COVER 1

8M6-2198F-00-00

Unavailable

19

SPACER

8M6-21998-00-00

Unavailable

20

WASHER, PLATE

90201-04027-00

$3.02

21

BRACKET, FRONT GUARD 3

8AT-2194Y-00-00

Unavailable

22

BRACKET, FRONT GUARD 4

8AT-2195Y-00-00

Unavailable

23

PANEL, SUB FRAME 6

89X-21917-00-00

Unavailable

24

SCREW, BINDING

98907-05014-00

Unavailable

25

NUT, NYLON

95707-05300-00

Unavailable

26

BUSH, BIMETAL FORMED (8M6)

90384-36134-00

Unavailable

27

OIL SEAL (8M6)

93102-36232-00

Unavailable

28

OIL SEAL (8M6)

93103-36117-00

Unavailable

29

COVER 1

83R-2198F-00-00

Unavailable

30

WASHER, PLATE

90201-04027-00

$3.02

31

PLUG (8H8)

90338-44093-00

Unavailable

32

GROMMET (438)

90480-15061-00

Unavailable

33

DAMPER, NOISE 11

8AT-77271-00-00

Unavailable

34

DAMPER, NOISE 12

8AC-77272-00-00

Unavailable

35

DAMPER, NOISE 13

8AT-77273-10-00

Unavailable

36

DAMPER, NOISE 14

8AT-77274-00-00

Unavailable

37

DAMPER, NOISE 15

8AT-77275-00-00

Unavailable

38

RIVET, BLIND

90267-48018-00

$9.49

39

WASHER, PLATE

90201-04027-00

$3.02

40

TAPE 1

83R-7717E-00-00

Unavailable

41

TAPE 1

83R-7717E-00-00

Unavailable

42

BOLT, FLANGE

95817-06012-00

Unavailable

43

CLAMP(4MX)

90465-06376-00

Unavailable

44

BRACKET, BATTERY

8AT-2199G-01-00

Unavailable

45

BOLT, HEXAGON

97017-06025-00

Unavailable

46

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

47

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

48

NUT, NYLON

95707-06300-00

Unavailable

49

GROMMET (22F)

90480-10348-00

Unavailable

50

STAY, SEAT

85R-2471A-00-00

Unavailable

51

HOLDER, 2

85R-2639F-00-00

Unavailable

52

TRIM 1

8AT-2196T-00-00

Unavailable

53

RIVET, BLIND(8AC)

90267-40172-00

Unavailable

54

WASHER, PLATE

90201-042E0-00

Unavailable

55

COVER 2

8AC-2198G-00-00

Unavailable

56

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

57

NUT, NYLON

95707-06300-00

Unavailable

58

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

59

REINFORCEMENT, FRAME REAR 2

8AC-21933-00-00

Unavailable

60

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

61

FOOTREST, REAR 1

88T-27431-10-00

Unavailable

62

FOOTREST, REAR 2

88T-27441-10-00

Unavailable

63

SCREW, BINDING

98907-06025-00

Unavailable

64

COLLAR

90387-06158-00

Unavailable

65

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

66

TOOL KIT

85L-28100-01-00

Unavailable
