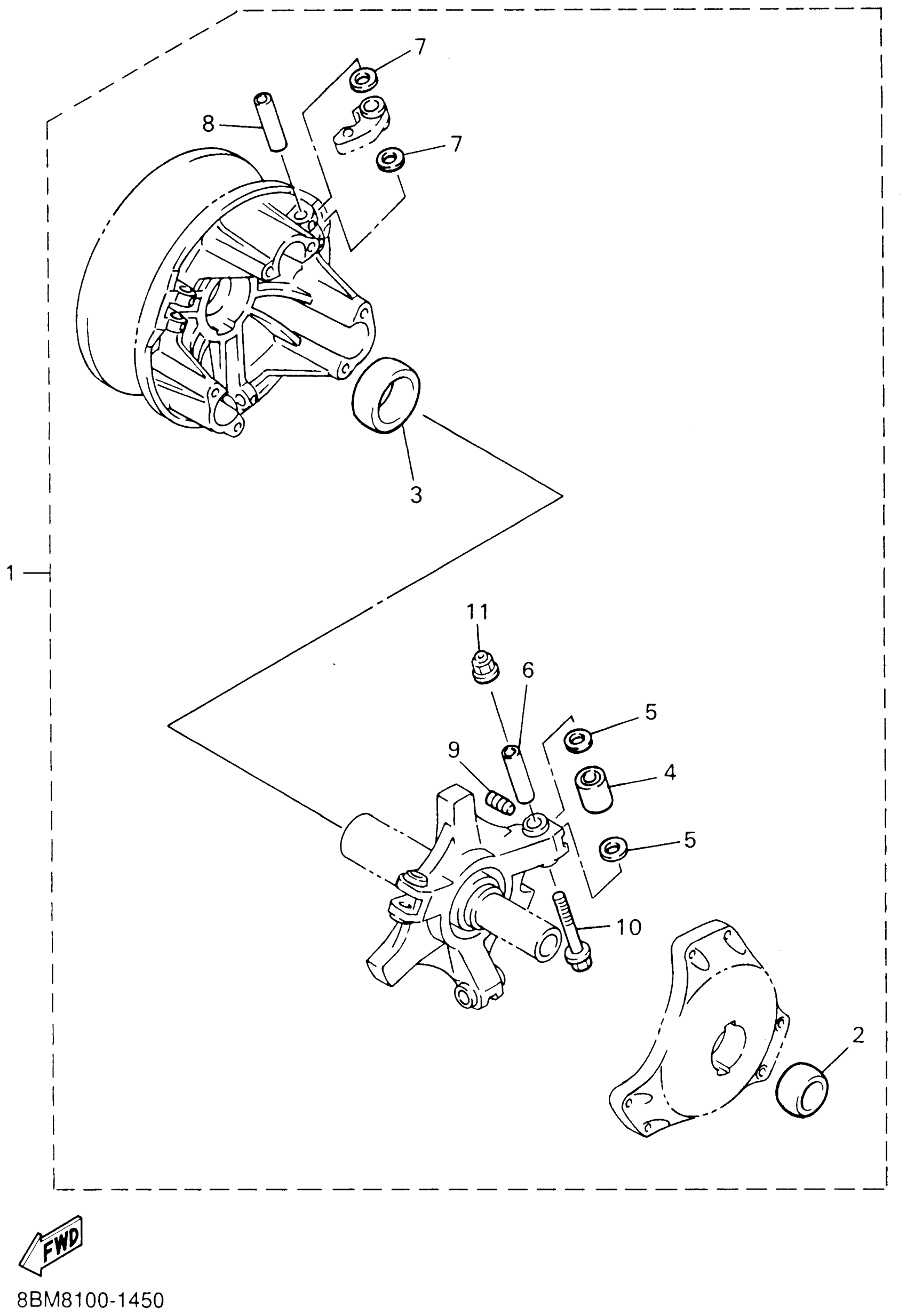

Yamaha VK540EG (VK540 III) 8AC9 2002 ALTERNATE DRIVE 2 Diagram

#

Description

Price

1

CLUCH TUNE-UP KIT (R)

88R-00000-51-00

Unavailable

2

BUSH(83R)

90389-28032-00

$55.02

3

BUSH(88R)

90389-41031-00

$72.61

4

ROLLER, COMP

88R-17624-01-00

$41.97

5

WASHER, PLATE(88R)

90202-08204-00

$5.49

6

COLLAR

90387-0514T-00

$13.88

7

WASHER, PLATE(88R)

90202-08204-00

$5.49

8

COLLAR

90387-0514T-00

$13.88

9

BOLT, SET

90113-05041-00

$6.22

10

BOLT, WASHER BASED(88R)

90105-05644-00

$1.81

11

NUT, S/L FLANGE

95607-05200-00

$6.39
