Description

Price

1

CLUTCH REPAIR KIT

8AC-17601-09-00

Unavailable

2

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$113.99

3

SHEAVE, PRIMARY SLIDING

89F-17621-00-00

Unavailable

4

CAP

88R-17631-01-00

Unavailable

5

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

6

STOPPER

8V0-17639-00-00

$14.99

7

BUSH(83R)

90389-28032-00

$61.99

8

BUSH(88R)

90389-41031-00

$78.99

9

WASHER, PLATE(88R)

90202-08204-00

$9.49

10

WASHER(6TA)

92907-06600-00

$2.72

11

BOLT, SET

90113-05041-00

$8.49

12

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

13

NUT, S/L FLANGE

95607-05200-00

$9.49

14

COLLAR

90387-0514T-00

$16.99

15

SLIDER

8BW-17653-00-00

$16.49

16

BOLT(89J)

90109-066F4-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

PIN, SPRING (7F7)

91609-50032-00

Unavailable

19

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

20

WASHER(JN5)

92907-16100-00

Unavailable

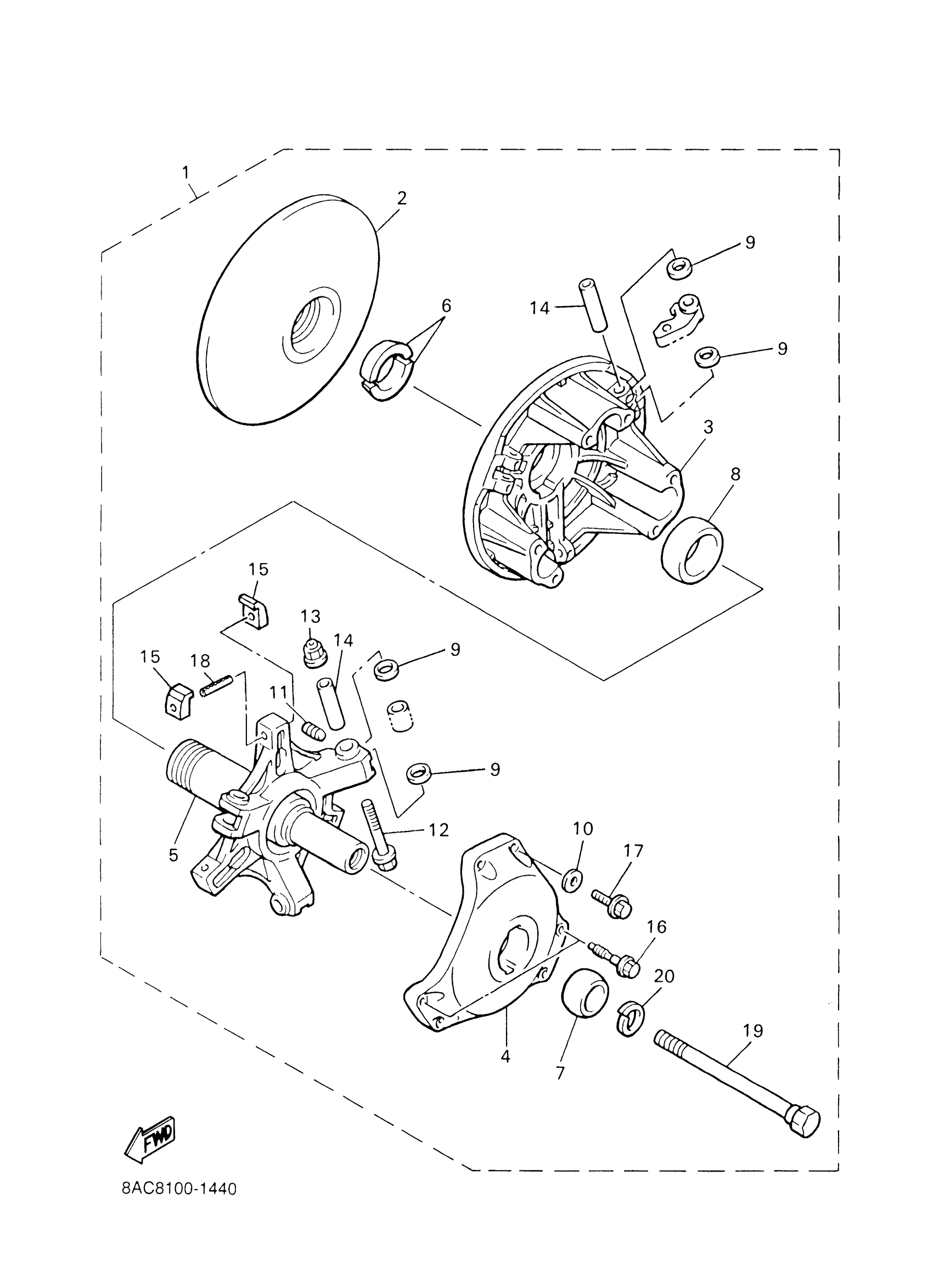

Yamaha VK540EG (VK540 III) 8AC9 2002 ALTERNATE DRIVE 1 Diagram

CLUTCH REPAIR KIT

SHEAVE, PRIMARY FIXED

SHEAVE, PRIMARY SLIDING

CAP

SPIDER COMPLETE

STOPPER

BUSH(83R)

BUSH(88R)

WASHER, PLATE(88R)

WASHER(6TA)

BOLT, SET

BOLT, WASHER BASED(88R)

NUT, S/L FLANGE

COLLAR

SLIDER

BOLT(89J)

BOLT, HEXAGON

PIN, SPRING (7F7)

BOLT (L=156.5MM)

WASHER(JN5)
