- VK540EF (VK540 III) 8AC8 2001
TRACK SUSPENSION 1

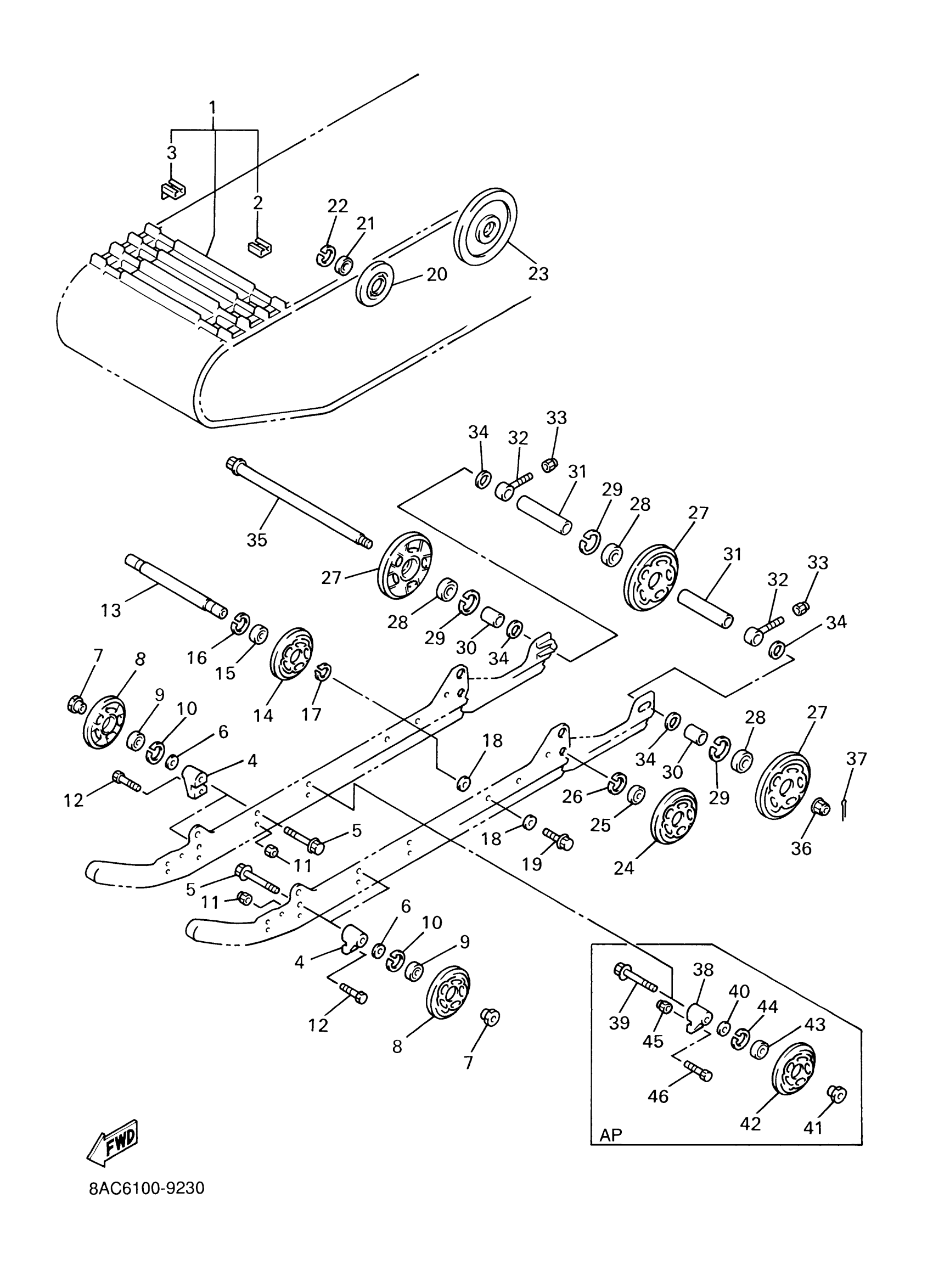

Yamaha VK540EF (VK540 III) 8AC8 2001 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8AC-47110-11-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
BRACKET 7
8CM-47419-10-00
$39.99
5
BOLT, FLANGE
90105-10029-00
$5.60
6
WASHER, PLATE (17K)
90201-106F2-00
$10.49
7
NUT(8CM)
90179-10670-00
$12.49
8
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
9
BEARING(8AB)
93306-00444-00
$41.99
10
CIRCLIP(5U8)
99009-42500-00
$8.49
11
NUT, SELF-LOCKING
90185-08169-00
$8.49
12
BOLT(8CM)
90101-08774-00
$7.49
13
SHAFT 4
8AT-47486-00-00
Unavailable
14
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
15
BEARING(8AB)
93306-00444-00
$41.99
16
CIRCLIP(5U8)
99009-42500-00
$8.49
17
CIRCLIP(1AR)
99009-20400-00
Unavailable
18
WASHER, PLATE (17K)
90201-106F2-00
$10.49
19
BOLT, FLANGE
95817-10030-00
Unavailable
20
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
21
BEARING(8AB)
93306-00444-00
$41.99
22
CIRCLIP(5U8)
99009-42500-00
$8.49
23
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
24
SUSPENSION WHEEL COMP.
8U7-47320-00-00
Unavailable
25
BEARING(8AB)
93306-00444-00
$41.99
26
CIRCLIP(5U8)
99009-42500-00
$8.49
27
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
28
BEARING(8AE)
93306-20469-00
Unavailable
29
CIRCLIP(48Y)
99009-47500-00
Unavailable
30
COLLAR(83R)
90387-200U9-00
Unavailable
31
COLLAR(83R)
90387-205T6-00
Unavailable
32
COLLAR 3
8K2-47479-01-00
Unavailable
33
NUT, NYLON
95707-10300-00
Unavailable
34
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
35
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
36
NUT, SELF-LOCKING(83R)
90185-14142-00
Unavailable
37
PIN, COTTER
91401-30025-00
Unavailable
38
BRACKET 7
8CM-47419-10-00
$39.99
39
BOLT, FLANGE
90105-10029-00
$5.60
40
WASHER, PLATE (17K)
90201-106F2-00
$10.49
41
NUT(8CM)
90179-10670-00
$12.49
42
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
43
BEARING(8AB)
93306-00444-00
$41.99
44
CIRCLIP(5U8)
99009-42500-00
$8.49
45
NUT, SELF-LOCKING
90185-08169-00
$8.49
46
BOLT(8CM)
90101-08774-00
$7.49
