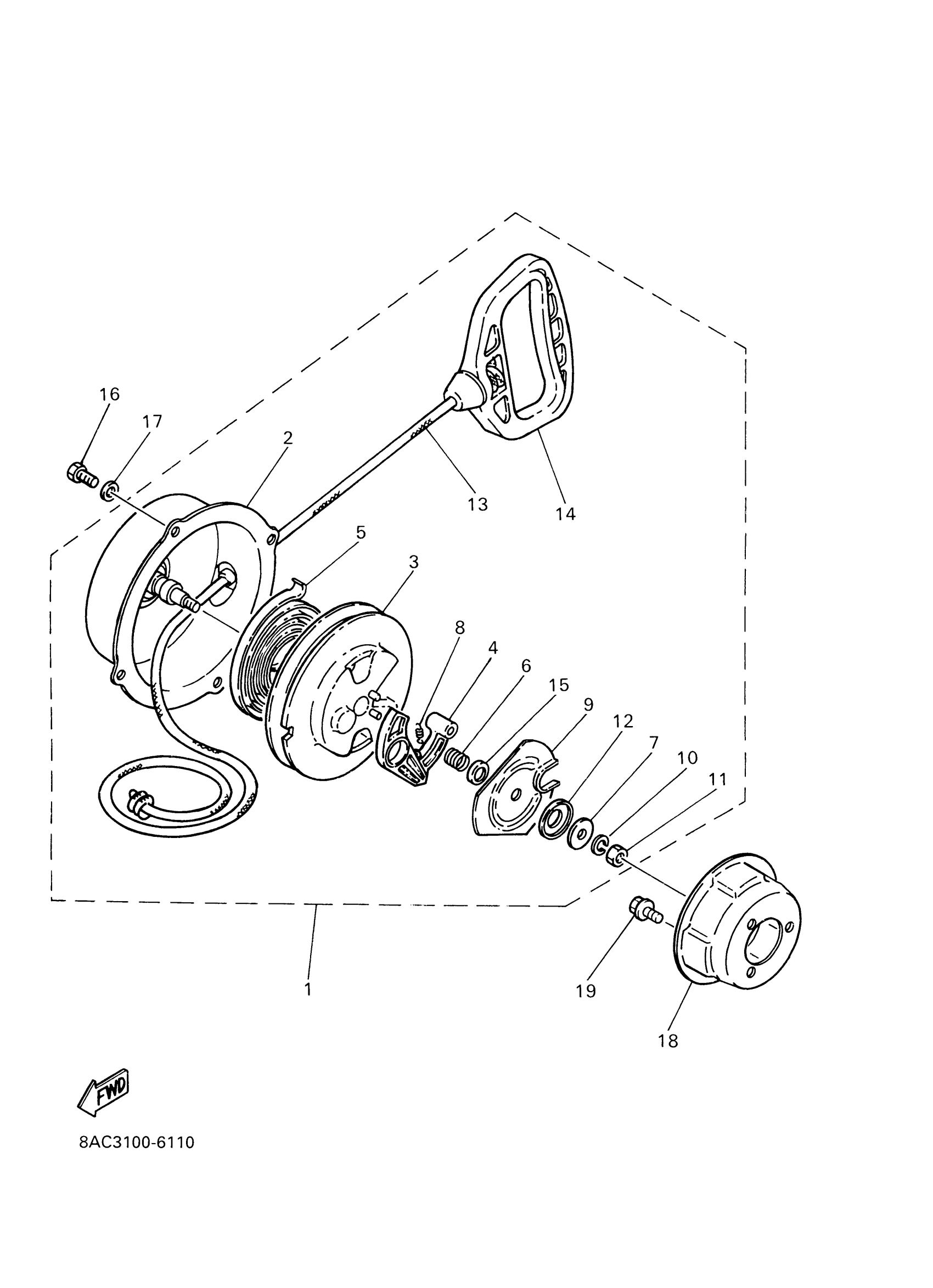

Find the part on the Starter diagram for your 2001 Yamaha VK540 Iii (VK540EF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VK540 Iii (VK540EF) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8H8-15710-00-00

1
Out of stock

2

CASE, STARTER

8H8-15711-00-00

—
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8F3-15741-01-00

1
Out of stock

5

SPRING, STARTER

8F3-15713-01-00

1
Out of stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1
Out of stock

7

WASHER, THRUST

8F3-15739-01-00

1
Out of stock

8

SPRING, RETURN

8F3-15734-00-00

1
Out of stock

9

PLATE, DRIVE

8F3-15716-03-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

NUT(650)

95380-06700-00

1
Out of stock

12

WASHER, THRUST

8G5-15739-00-00

1
Out of stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1
Out of stock

14

HANDLE, STARTER

8F3-15755-00-00

1
Out of stock

15

COLLOR

82M-15779-00-00

1
Out of stock

16

BOLT(8CP)

97017-06014-00

—
Out of stock

17

WASHER(6TA)

92907-06600-00

—
Out of stock

18

PULLEY, STARTER

8H8-15723-01-00

—
Out of stock

19

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock
