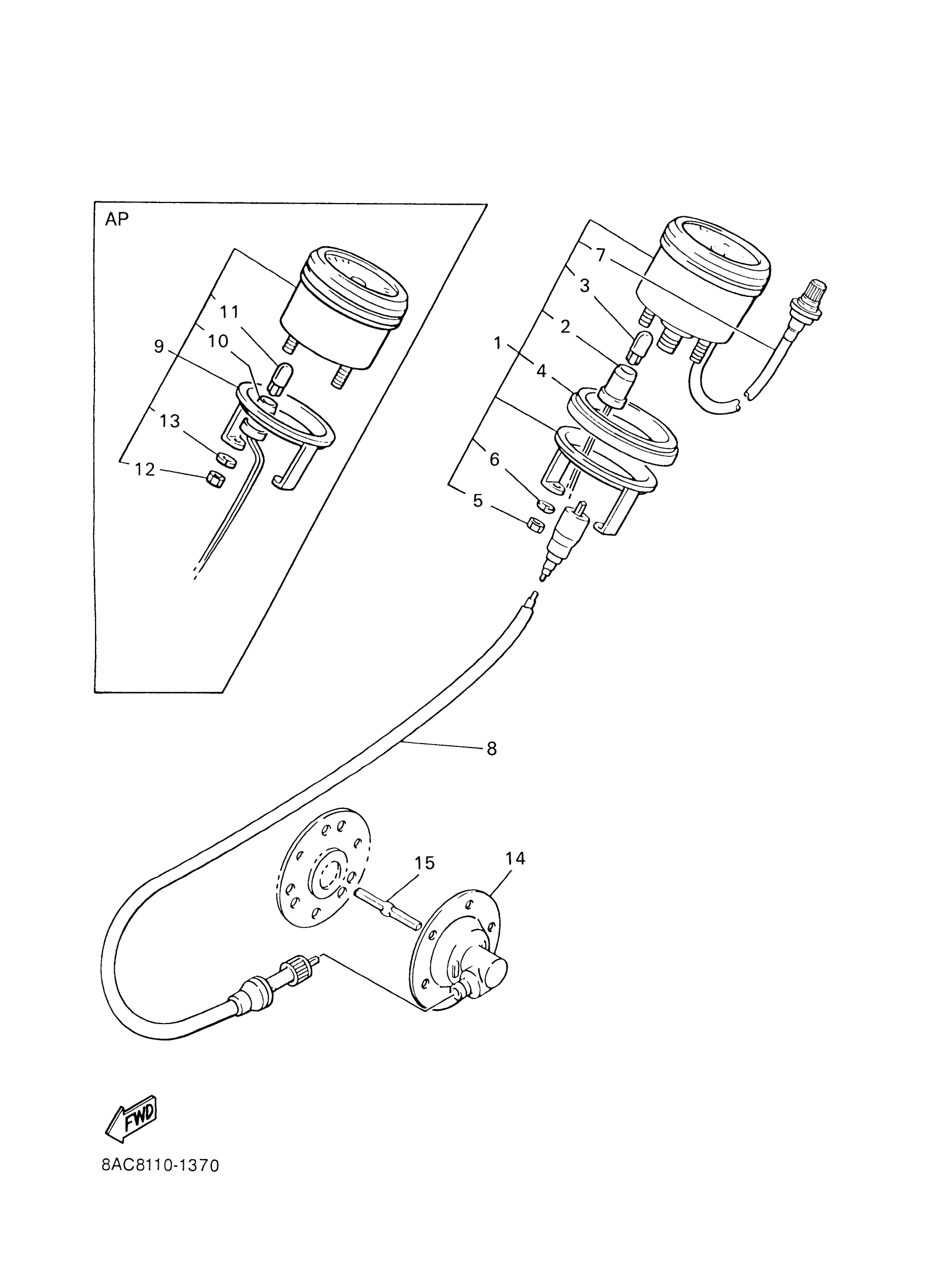

Find the part on the Meter diagram for your 2001 Yamaha VK540 III (VK540EF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VK540 III (VK540EF) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

87R-83510-40-00

—

$132.12

In stock

2

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

TRIP METER CABLE ASSY

8K1-83603-01-00

—

$69.28

In stock

8

TACHOMETER CABLE ASSY

8H4-83560-00-00

1

$55.71

In stock

9

TACHOMETER ASSY

85L-83540-00-00

1
Out of stock

10

SOCKET CORD ASSY

85L-83509-00-00

—

$22.09

In stock

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

METER GEAR HOUSING COMP

83R-47700-00-00

—

$147.58

In stock

15

JOINT

8K4-47715-00-00

1

$4.60

In stock
