INSTRUMENT PANEL

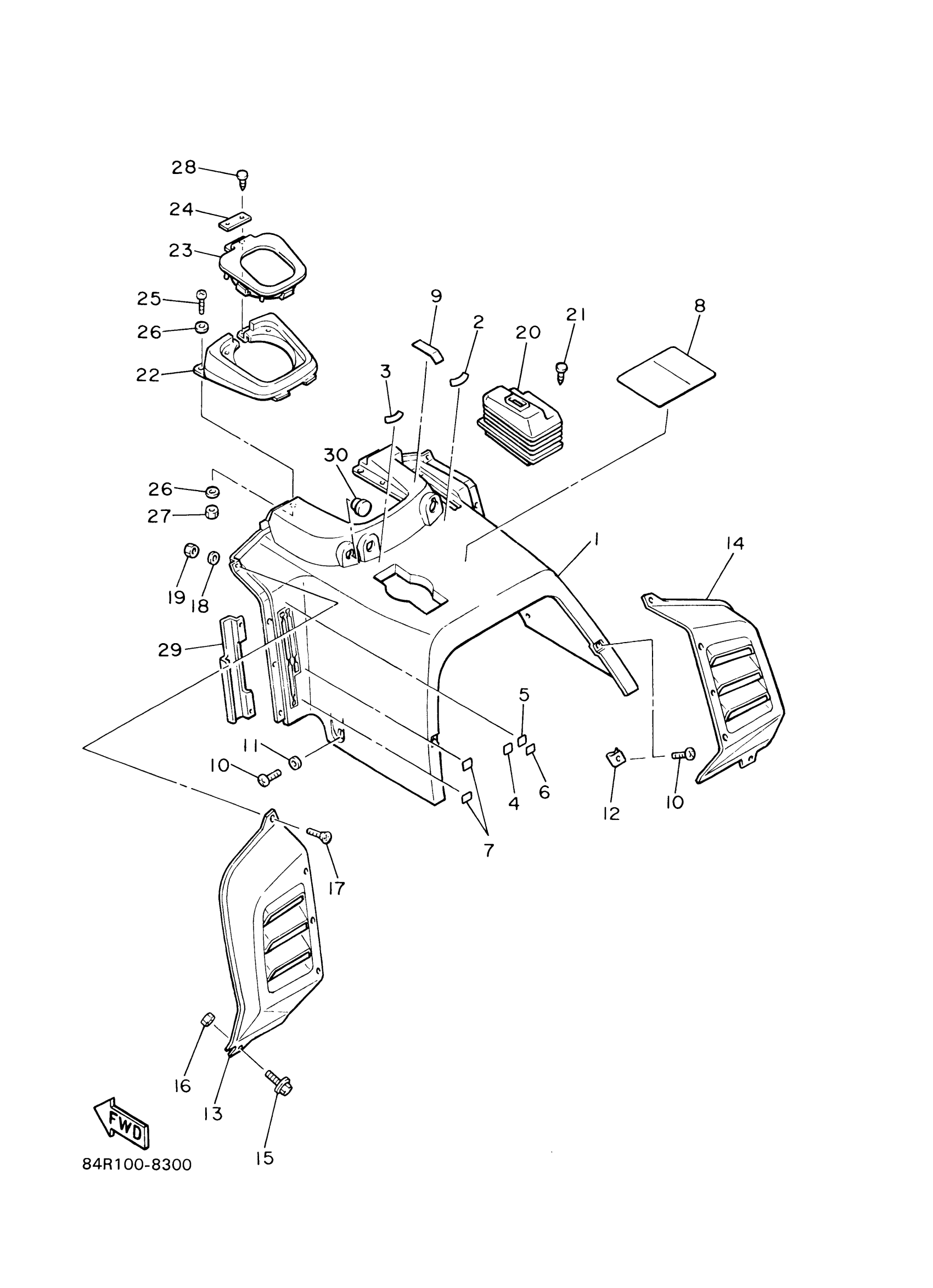

Yamaha VK540EF (VK540 III) 8AC8 2001 INSTRUMENT PANEL Diagram
#
1
PANEL, INSTRUMENT
86V-77711-00-00
Unavailable
2
INDICAT0R 1
8V0-77741-20-00
Unavailable
3
INDICATOR 2
8U9-77742-00-00
Unavailable
4
INDICATOR 3
87A-77743-00-00
$1.82
5
INDICATOR 2
87A-77742-00-00
Unavailable
6
INDICATOR 1
87A-77741-00-00
$1.82
7
INDICATOR 5
87A-77745-00-00
$1.82
8
LABEL, WARNING 1
87R-77761-10-00
Unavailable
9
INDICATOR 1
83R-77741-00-00
Unavailable
10
SCREW, BINDING
98907-06016-00
$9.49
11
COLLAR(83R)
90387-060U0-00
$10.49
12
NUT
83R-77144-00-00
Unavailable
13
LOUVER 1
83R-77131-01-00
Unavailable
14
LOUVER 2
83R-77132-01-00
Unavailable
15
BOLT, FLANGE
95817-06016-00
$2.75
16
NUT, NYLON
95707-06300-00
Unavailable
17
SCREW, FLAT
98707-04016-00
Unavailable
18
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
19
NUT, NYLON
95707-04300-00
Unavailable
20
SHIELD 1
83R-77731-00-00
Unavailable
21
RIVET(81E)
90269-05055-00
Unavailable
22
PANEL, INSTRUMENT
83R-77712-00-00
Unavailable
23
GROMMET, INSTRUMENT PANEL
83R-77740-00-00
Unavailable
24
WASHER
83R-77728-00-00
Unavailable
25
SCREW, BINDING
98907-05016-00
Unavailable
26
WASHER PLATE (664)
90201-05556-00
Unavailable
27
NUT, NYLON
95707-05300-00
Unavailable
28
RIVET(81E)
90269-05055-00
Unavailable
29
HOLDER
83R-2419A-00-00
Unavailable
30
GROMMET 122154860000
90480-12012-00
Unavailable
