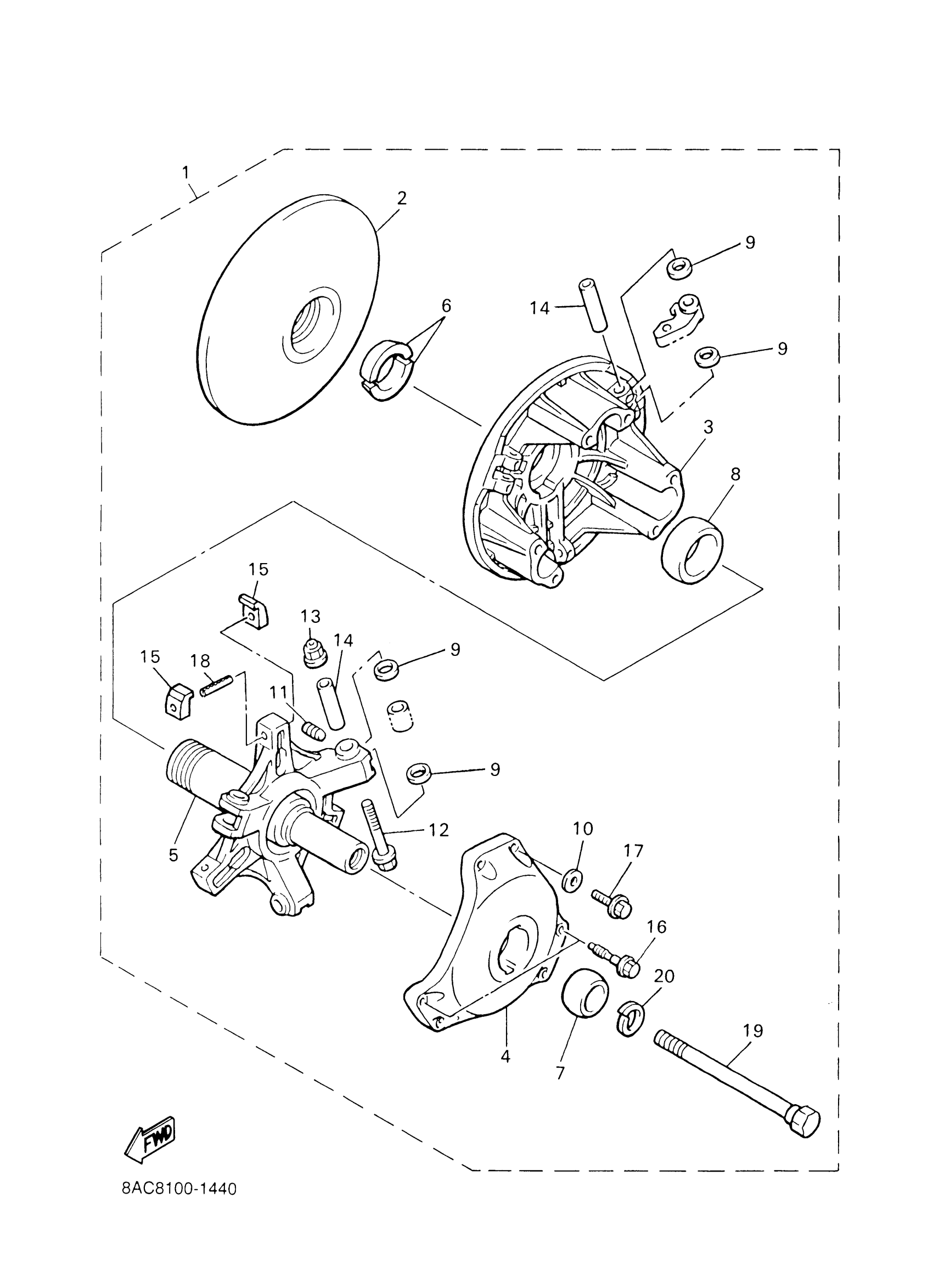

Yamaha VK540EF (VK540 III) 8AC8 2001 ALTERNATE CLUTCH REPAIR KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8AC-17601-09-00

Unavailable

2

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$102.32

3

SHEAVE, PRIMARY SLIDING

89F-17621-00-00

Unavailable

4

CAP

88R-17631-01-00

Unavailable

5

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

6

STOPPER

8V0-17639-00-00

$9.81

7

BUSH(83R)

90389-28032-00

$55.02

8

BUSH(88R)

90389-41031-00

$72.61

9

WASHER, PLATE(88R)

90202-08204-00

$5.49

10

WASHER(6TA)

92907-06600-00

$0.73

11

BOLT, SET

90113-05041-00

$6.22

12

BOLT, WASHER BASED(88R)

90105-05644-00

$1.81

13

NUT, S/L FLANGE

95607-05200-00

$6.39

14

COLLAR

90387-0514T-00

$13.88

15

SLIDER

8BW-17653-00-00

$12.93

16

BOLT(89J)

90109-066F4-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

PIN, SPRING (7F7)

91609-50032-00

Unavailable

19

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

20

WASHER(JN5)

92907-16100-00

Unavailable
