Description

Price

1

SHAFT, PIVOT

83R-47337-00-00

Unavailable

2

FRAME, SLIDING 2

8AC-W4741-00-00

Unavailable

3

FRAME, SLIDING 2

8AC-W4741-00-00

Unavailable

4

RUNNER, SLIDING 4

8AC-47424-00-00

$27.99

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

ARM, PIVOT 3

83R-47333-01-00

Unavailable

7

BOLT, FLANGE

95817-10030-00

$8.49

8

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

9

COLLAR

90387-1815A-00

$44.99

10

WASHER, PLATE

90202-22238-00

$13.49

11

COLLAR

90387-1014Y-00

$24.99

12

PIN. SPRING(656)

91690-30008-00

Unavailable

13

BUSH, SOLID (22W)

90380-16109-00

Unavailable

14

BOLT, FLANGE

95817-08035-00

$9.49

15

NUT, SELF-LOCKING

90185-08169-00

$8.49

16

COLLAR(3BN)

90387-082J1-00

Unavailable

17

BOLT, WASHER BASED(83R)

90105-08483-00

Unavailable

18

WASHER (1T1)

90201-08649-00

Unavailable

19

SEAT, SPRING 1

83R-23768-00-00

Unavailable

20

SPRING, COMPRESSION(83R)

90501-407E4-00

Unavailable

21

SPRING

83R-47335-00-00

Unavailable

22

HOOK 1

83R-47446-00-00

Unavailable

23

NUT, NYLON

95717-12300-00

Unavailable

24

COLLAR 2

8AC-47478-00-00

Unavailable

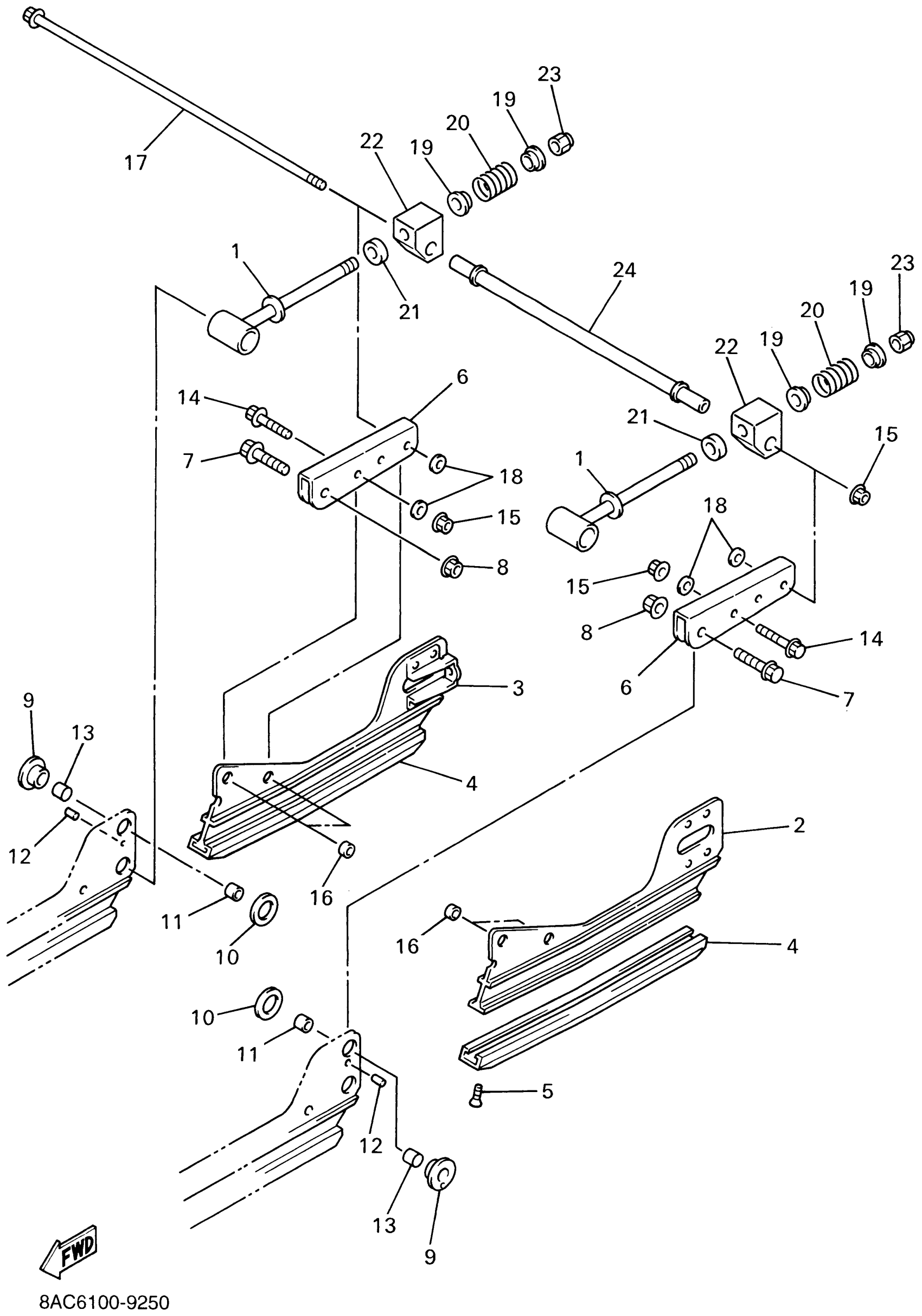

Yamaha VK540ED (VK540 III) 8AC7 2000 TRACK SUSPENSION 3 Diagram

SHAFT, PIVOT

FRAME, SLIDING 2

FRAME, SLIDING 2

RUNNER, SLIDING 4

SCREW, CROSSRECESS (8G6)

ARM, PIVOT 3

BOLT, FLANGE

NUT, SELF-LOCKING (8U7)

COLLAR

WASHER, PLATE

COLLAR

PIN. SPRING(656)

BUSH, SOLID (22W)

BOLT, FLANGE

NUT, SELF-LOCKING

COLLAR(3BN)

BOLT, WASHER BASED(83R)

WASHER (1T1)

SEAT, SPRING 1

SPRING, COMPRESSION(83R)

SPRING

HOOK 1

NUT, NYLON

COLLAR 2
