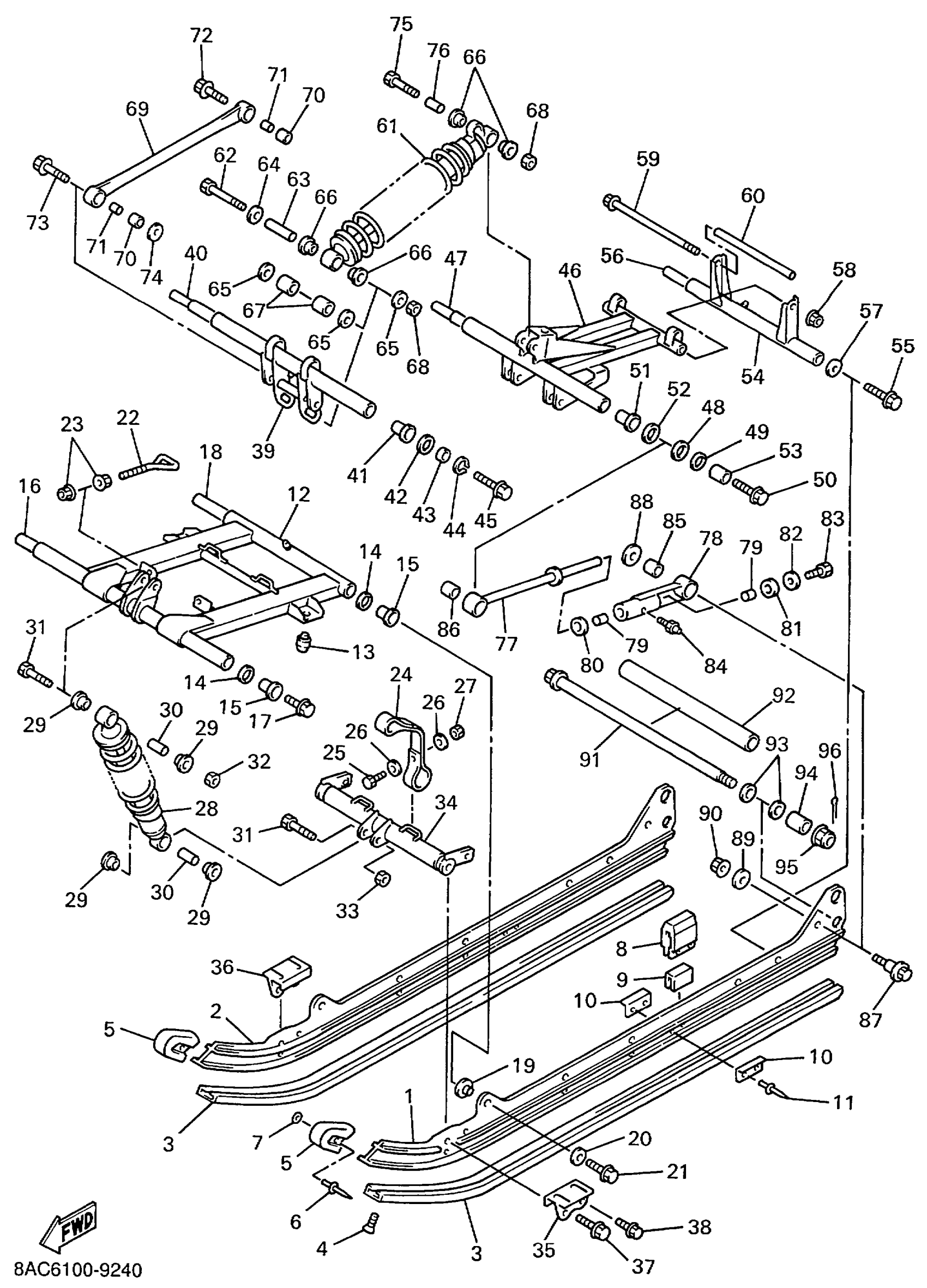

Yamaha VK540EC (VK540 III) 8AC6 1999 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING 1

8AC-47411-00-00

Unavailable

2

FRAME, SLIDING 4

8AC-47414-00-00

Unavailable

3

HYFAX,BLACK

8AC-47421-00-XX

$19.79

4

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

5

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

6

RIVET BLIND

90267-48194-00

$2.20

7

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

8

DAMPER 2

8AC-47457-00-00

$15.03

9

SPACER

8AC-47341-00-00

$37.55

10

PLATE, DAMPER

8AX-47458-00-00

$8.08

11

RIVET, BLIND

90267-48199-00

$2.62

12

ARM, PIVOT 1

8AC-47331-00-00

$405.42

13

DAMPER

83M-21488-00-00

$17.28

14

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

15

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

16

SHAFT 1

8AC-47465-00-00

$61.51

17

BOLT (8V0)

90109-10771-00

$5.00

18

SHAFT 3

83R-47485-02-00

$72.25

19

COLLAR (8U7)

90387-105G6-00

$6.48

20

WASHER, PLATE (17K)

90201-106F2-00

$7.66

21

BOLT, FLANGE

95817-10030-00

$6.17

22

HOOK 3

8CR-47448-00-00

$14.94

23

NUT, FLANGE(JN5)

95707-08500-00

$1.49

24

STOPPER 1

8CV-47495-00-00

$53.74

25

BOLT, HEXAGON

97017-06025-00

$2.98

26

WASHER, PLATE

90201-06747-00

$6.17

27

NUT, NYLON

95707-06300-00

$3.20

28

SHOCK ABSORBER 2

8AC-47481-00-00

Unavailable

29

BUSH, SOLID(8CM)

90381-14101-00

$7.48

30

COLLAR (8U7)

90387-105G5-00

$7.35

31

BOLT(88R)

90101-10738-00

$6.28

32

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

33

NUT, U

95617-10100-00

$6.18

34

BRACKET 4

8AC-47418-00-00

Unavailable

35

BRACKET 5

8DF-47463-01-00

Unavailable

36

BRACKET 6

8DF-47464-01-00

Unavailable

37

BOLT, FLANGE

95817-10030-00

$6.17

38

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

39

BRACKET 2

8AC-47416-01-00

$131.69

40

SHAFT 6

8AC-47488-10-00

Unavailable

41

BUSH, SOLID(8CM)

90381-22099-00

$9.85

42

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

43

COLLAR(8AB)

90387-2004V-00

$9.15

44

CIRCLIP(1AR)

99009-20400-00

$6.17

45

BOLT (8V0)

90109-10771-00

$5.00

46

ARM, PIVOT 2

8AC-47332-00-00

Unavailable

47

SHAFT 2

8AC-47475-00-00

$137.72

48

WASHER, PLATE(2JG)

90201-266L1-00

$12.86

49

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

50

BOLT, FLANGE

95817-10030-00

$6.17

51

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

52

WASHER, PLATE(1YW)

90201-286K9-00

$5.68

53

COLLAR

90387-2515E-00

Unavailable

54

BRACKET 3

8AC-47417-00-00

$61.94

55

BOLT, FLANGE

95817-10030-00

$6.17

56

SHAFT 3

83R-47485-02-00

$72.25

57

WASHER PLATE (789)

90201-10136-00

$7.26

58

NUT, SELF-LOCKING

90185-08169-00

$7.09

59

BOLT, FLANGE

95827-08220-00

Unavailable

60

COLLAR (8U7)

90387-083G6-00

$9.75

61

SHOCK ABSORBER

8AC-47480-01-00

Unavailable

62

BOLT, ADJUSTING

8AC-4631K-00-00

$32.32

63

COLLAR(8CJ)

90387-1009S-00

$18.00

64

WASHER, PLATE

90201-10039-00

$6.42

65

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

66

BUSH, SOLID(8CM)

90381-14101-00

$7.48

67

COLLAR(8CM)

90387-1404R-00

$28.72

68

NUT, U

95617-10100-00

$6.18

69

ROD, RELAY

8CR-47494-01-00

Unavailable

70

BUSH, SOLID(8CJ)

90381-14109-00

$7.60

71

COLLAR(87A)

90387-100X3-00

$3.49

72

BOLT, FLANGE

95817-10035-00

$6.85

73

BOLT, FLANGE

95814-10040-00

$3.69

74

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

75

BOLT(88R)

90101-10738-00

$6.28

76

COLLAR (8U7)

90387-105G5-00

$7.35

77

ROD, CONTROL 1

8AC-4745A-10-00

Unavailable

78

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

79

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

80

WASHER, PLATE(8CJ)

90202-16231-00

Unavailable

81

WASHER, PLATE(8BT)

90202-16232-00

$6.82

82

WASHER, PLATE (17K)

90201-106F2-00

$7.66

83

BOLT(6TD)

97017-10025-00

$6.82

84

NIPPLE, GREASE

93700-06M03-00

$7.15

85

BUSH, SOLID(8CM)

90380-22232-00

$20.92

86

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

87

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

88

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

89

WASHER, PLATE

90201-101U2-00

$5.37

90

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

91

REAR AXLE COMP.

8JN-47520-00-00

$119.75

92

COLLAR 1

83R-47469-00-00

$29.49

93

WASHER, PLATE(89W)

90201-205R6-00

$10.68

94

COLLAR

90387-20022-00

$21.23

95

NUT, SELF-LOCKING(83R)

90185-14142-00

$31.11

96

PIN, COTTER

91401-30025-00

$6.18
