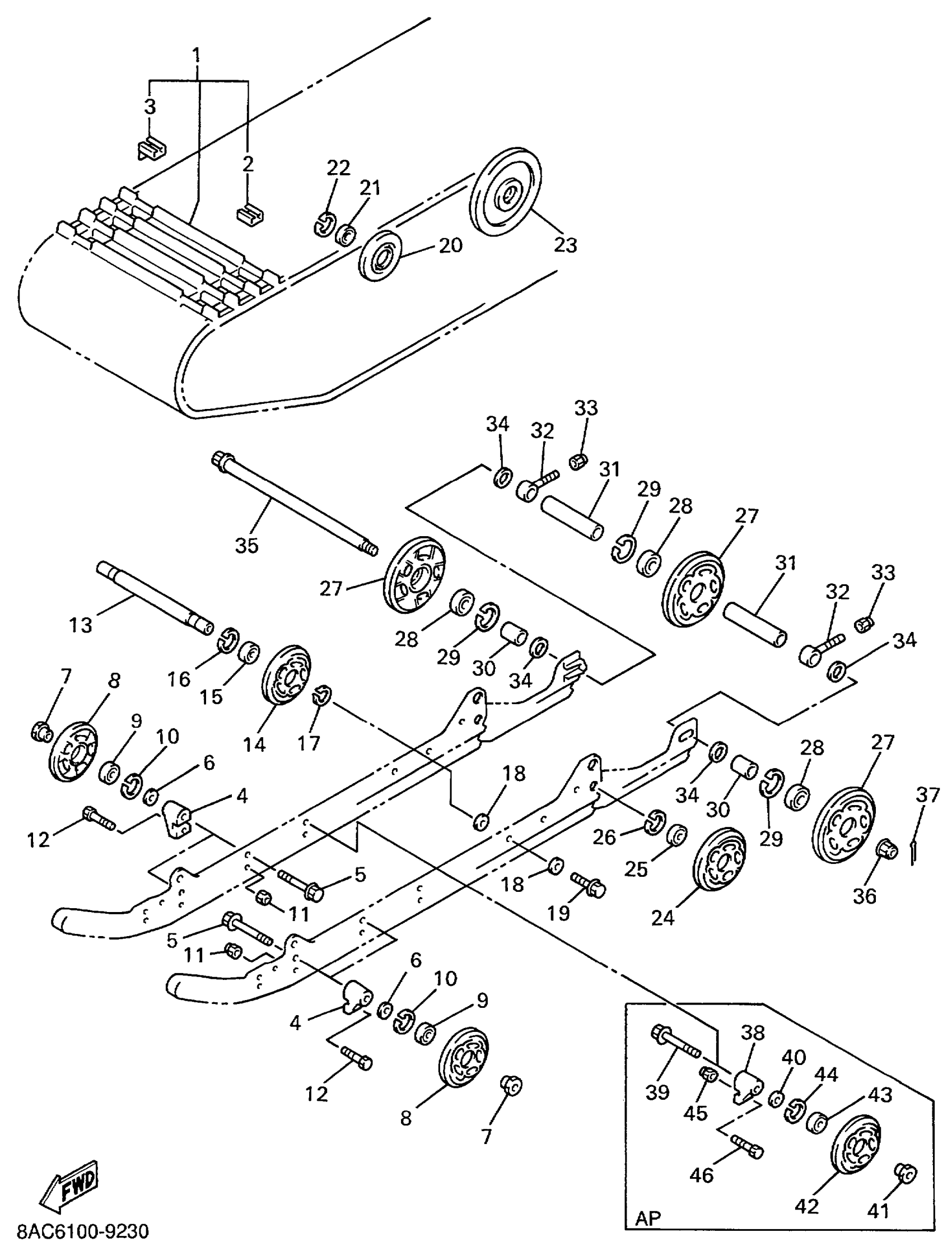

Yamaha VK540EC (VK540 III) 8AC6 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8AC-47110-11-00

$1,878.99

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

BRACKET 7

8CM-47419-10-00

$22.69

5

BOLT, FLANGE

90105-10029-00

$3.18

6

WASHER, PLATE (17K)

90201-106F2-00

$7.30

7

NUT(8CM)

90179-10670-00

$11.33

8

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

9

BEARING(8AB)

93306-00444-00

$34.98

10

CIRCLIP(5U8)

99009-42500-00

$6.45

11

NUT, SELF-LOCKING

90185-08169-00

$6.76

12

BOLT(8CM)

90101-08774-00

$4.56

13

SHAFT 4

8AT-47486-00-00

Unavailable

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

15

BEARING(8AB)

93306-00444-00

$34.98

16

CIRCLIP(5U8)

99009-42500-00

$6.45

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

WASHER, PLATE (17K)

90201-106F2-00

$7.30

19

BOLT, FLANGE

95817-10030-00

Unavailable

20

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

21

BEARING(8AB)

93306-00444-00

$34.98

22

CIRCLIP(5U8)

99009-42500-00

$6.45

23

GUIDE WHEEL ASSY

8AC-47550-00-00

Unavailable

24

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

25

BEARING(8AB)

93306-00444-00

$34.98

26

CIRCLIP(5U8)

99009-42500-00

$6.45

27

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

28

BEARING(8AE)

93306-20469-00

Unavailable

29

CIRCLIP(48Y)

99009-47500-00

Unavailable

30

COLLAR(83R)

90387-200U9-00

Unavailable

31

COLLAR(83R)

90387-205T6-00

Unavailable

32

COLLAR 3

8K2-47479-01-00

Unavailable

33

NUT, NYLON

95707-10300-00

Unavailable

34

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

35

REAR AXLE COMP.

8JN-47520-00-00

Unavailable

36

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

37

PIN, COTTER

91401-30025-00

Unavailable

38

BRACKET 7

8CM-47419-10-00

$22.69

39

BOLT, FLANGE

90105-10029-00

$3.18

40

WASHER, PLATE (17K)

90201-106F2-00

$7.30

41

NUT(8CM)

90179-10670-00

$11.33

42

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

43

BEARING(8AB)

93306-00444-00

$34.98

44

CIRCLIP(5U8)

99009-42500-00

$6.45

45

NUT, SELF-LOCKING

90185-08169-00

$6.76

46

BOLT(8CM)

90101-08774-00

$4.56
