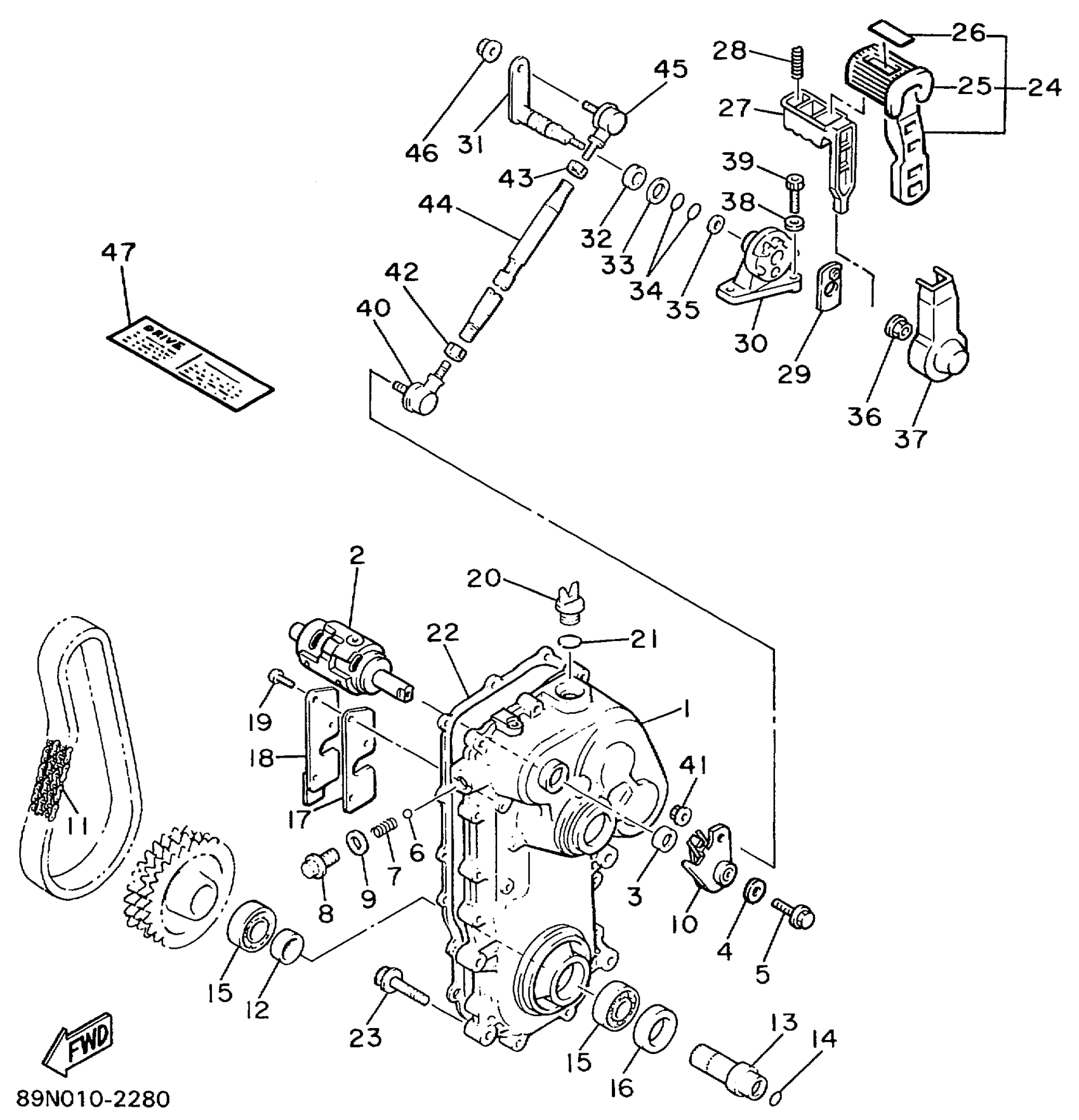

Yamaha VK540EC (VK540 III) 8AC6 1999 TRACK DRIVE 3 Diagram

#

Description
Price

1

HOUSING, CHAIN

87R-47541-00-00

$574.99

2

SHIFT CAM ASSY

89N-18540-00-00

$106.37

3

OIL SEAL (3X3)

93102-15212-00

$7.34

4

WASHER PLATE 137241870000

90201-06072-00

$6.42

5

BOLT, FLANGE

95817-06035-00

$5.37

6

BALL

93503-08007-00

$2.35

7

SPRING, COMPRESSION(59V)

90501-147A6-00

$3.78

8

BOLT, WASHER BASED(59V)

90105-14367-00

$9.40

9

GASKET(59V)

90430-14194-00

$6.17

10

SHIFT SHAFT ASSY

89N-18130-01-00

$83.32

11

CHAIN(83R)

94880-06070-00

$120.80

12

COLLAR(83R)

90387-405T8-00

$15.54

13

JOURNAL 1

83R-47571-00-00

$193.46

14

O-RING(83R)

93210-28763-00

$5.77

15

BEARING

93306-90802-00

$129.51

16

OIL SEAL(83R)

93102-46394-00

$12.54

17

GASKET

85R-47544-02-00

$4.12

18

PLATE

88N-47591-00-00

$10.09

19

SCREW, BINDING

98907-06008-00

$6.68

20

PLUG, OIL

3Y1-15363-10-00

$17.02

21

O-RING (646)

93210-19123-00

$6.91

22

GASKET

85R-47592-01-00

$18.08

23

BOLT, FLANGE

95817-08040-00

$5.43

24

SHIFT LEVER ASSY

83R-18150-00-00

$41.09

25

COVER, SHIFT PEDAL

52G-18113-00-00

$20.38

26

LABEL

83R-1815A-00-00

$6.58

27

KNOB, SHIFT LEVER

59V-18174-00-00

$15.45

28

SPRING, COMPRESSION(52G)

90501-101A7-00

$5.70

29

PLATE, SIDE 1

59V-18561-00-00

$4.98

30

GUIDE, SHIFT RETURN SPRING

59V-18153-01-00

Unavailable

31

SHAFT, RINK

83R-18341-00-00

Unavailable

32

COLLAR(83R)

90387-145T7-00

$2.67

33

WASHER, PLATE(52G)

90201-144J2-00

$6.46

34

. O-RING

93210-10010-00

$1.87

35

WASHER, PLATE(52G)

90201-064J1-00

$3.49

36

NUT, FLANGE(4MV)

95707-06500-00

$0.78

37

COVER, SHIFT SPRING

59V-18433-00-00

$17.41

38

WASHER(6TA)

92907-06600-00

$0.78

39

BOLT,SOCKET

91317-06025-00

$2.05

40

BALL, L (L.H)

3X3-18157-10-00

$28.31

41

NUT, FLANGE(4MV)

95707-06500-00

$0.78

42

NUT(6TA)

95337-08600-00

$6.17

43

NUT

90170-08261-00

$1.72

44

JOINT, ROD 1

83R-18116-00-00

$32.68

45

BALL, L (R.H)

3X3-18156-10-00

$28.31

46

NUT, FLANGE(4MV)

95707-06500-00

$0.78

47

LABEL 1

8AT-47578-00-00

Unavailable
