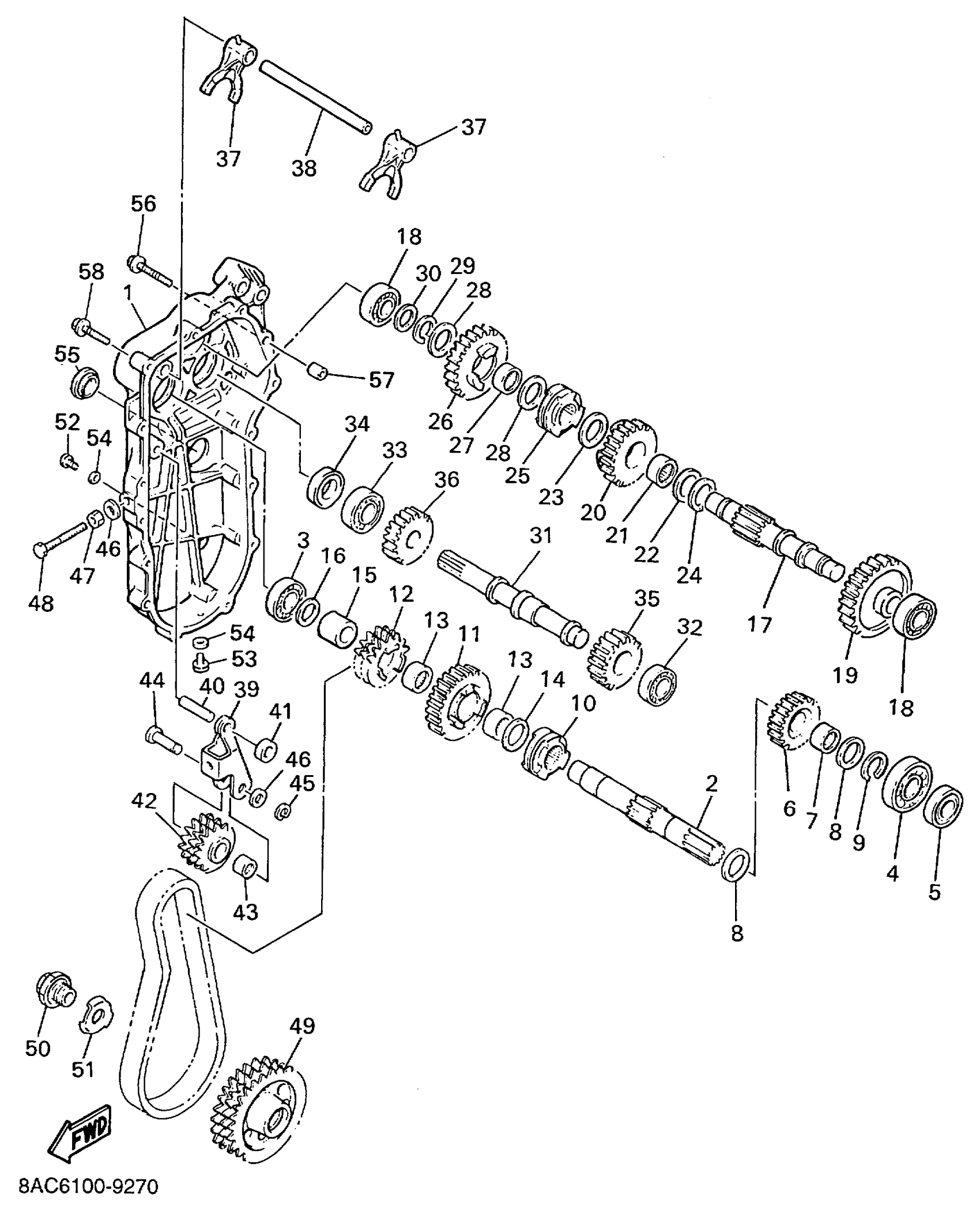

Yamaha VK540EC (VK540 III) 8AC6 1999 TRACK DRIVE 2 Diagram

#

Description
Price

1

CAP, HOUSING

83R-47543-00-00

$557.99

2

AXLE, DRIVE

85R-17421-00-00

$165.62

3

BEARING(1GJ)

93306-20458-00

$36.19

4

BEARING(1LX)

93306-37204-00

$44.26

5

OIL SEAL (22X42X7)

93102-22014-00

$10.68

6

GEAR, 2ND PINION

83R-17121-00-00

$50.42

7

BEARING, CYLINDRICAL(83R)

93311-42265-00

$25.49

8

WASHER, PLATE(83R)

90201-224L4-00

$6.80

9

CIRCLIP(1EY)

99009-22400-00

$6.17

10

DOG, TRANSMISSION SHIFT

83R-17492-10-00

$68.40

11

GEAR, 3RD PINION

8AT-17131-00-00

$69.17

12

SPROCKET, CHAIN DRIVE

83R-17682-00-00

$62.17

13

BEARING, CYLINDRICAL (33A)

93317-32241-00

$36.68

14

WASHER, PLATE(83R)

90201-224L4-00

$6.80

15

COLLAR(85R)

90387-226V7-00

$13.48

16

WASHER, PLATE (3Y1)

90201-20792-00

$7.26

17

AXLE, COUNTER

83R-17431-00-00

$91.28

18

BEARING (7X9)

93306-20327-00

$24.79

19

GEAR, 4TH PINION

8AT-17141-00-00

$46.25

20

GEAR, 5TH PINION

83R-17151-00-00

$50.42

21

BEARING, CYLINDRICAL (33A)

93317-32241-00

$36.68

22

WASHER, PLATE(83R)

90201-224L4-00

$6.80

23

WASHER, PLATE(83R)

90201-225L2-00

$9.91

24

CIRCLIP(1EY)

99009-22400-00

$6.17

25

DOG, TRANSMISSION SHIFT

83R-17492-10-00

$68.40

26

GEAR, REVERSE PINION 1

83R-17143-00-00

$54.97

27

BEARING, CYLINDRICAL (4X7)

93317-22021-00

$26.72

28

WASHER, PLATE (3Y1)

90201-20792-00

$7.26

29

CIRCLIP(1AR)

99009-20400-00

$6.17

30

WASHER, PLATE (2K7)

90201-17682-00

$1.71

31

AXLE, IDLE

83R-17432-01-00

$109.58

32

BEARING (7X9)

93306-20327-00

$24.79

33

BEARING(1GJ)

93306-20458-00

$36.19

34

OIL SEAL(4BA)

93102-20447-00

$8.92

35

GEAR, REVERSE WHEEL1

83R-17243-00-00

$40.85

36

GEAR, REVERSE PINION 2

83R-17153-00-00

$40.85

37

FORK, SHIFT 1

83R-18511-00-00

$45.28

38

BAR, SHIFT FORK GUIDE 1

83R-18531-00-00

$13.32

39

HOLDER

83R-47613-00-00

$47.28

40

PIN, DOWEL(83R)

93612-44229-00

$4.57

41

COLLAR (4V4)

90387-121E8-00

$12.06

42

WHEEL

83R-47612-00-00

Unavailable

43

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

$39.37

44

PIN(86P)

90249-12216-00

$9.91

45

CIRCLIP(10Y)

99009-12400-00

$3.08

46

WASHER SEAL 256111730200

90210-10004-00

$4.11

47

NUT (3WP1)

95317-10700-00

$6.17

48

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

49

SPROCKET, CHAIN DRIVEN

83R-47548-00-00

Unavailable

50

BOLT, WASHER BASED(83R)

90105-27484-00

$44.94

51

WASHER, LOCK(83R)

90215-39268-00

$13.28

52

BOLT(3JP)

97017-06010-00

$2.62

53

SCREW, BINDING

98907-06008-00

$6.68

54

GASKET 838153840000

90430-06016-00

$6.18

55

PLUG(83R)

90338-30219-00

$11.09

56

BOLT, FLANGE

95817-06045-00

$6.18

57

PIN, DOWEL(3VD)

99530-10114-00

$2.23

58

BOLT, FLANGE

95817-06035-00

$5.37
