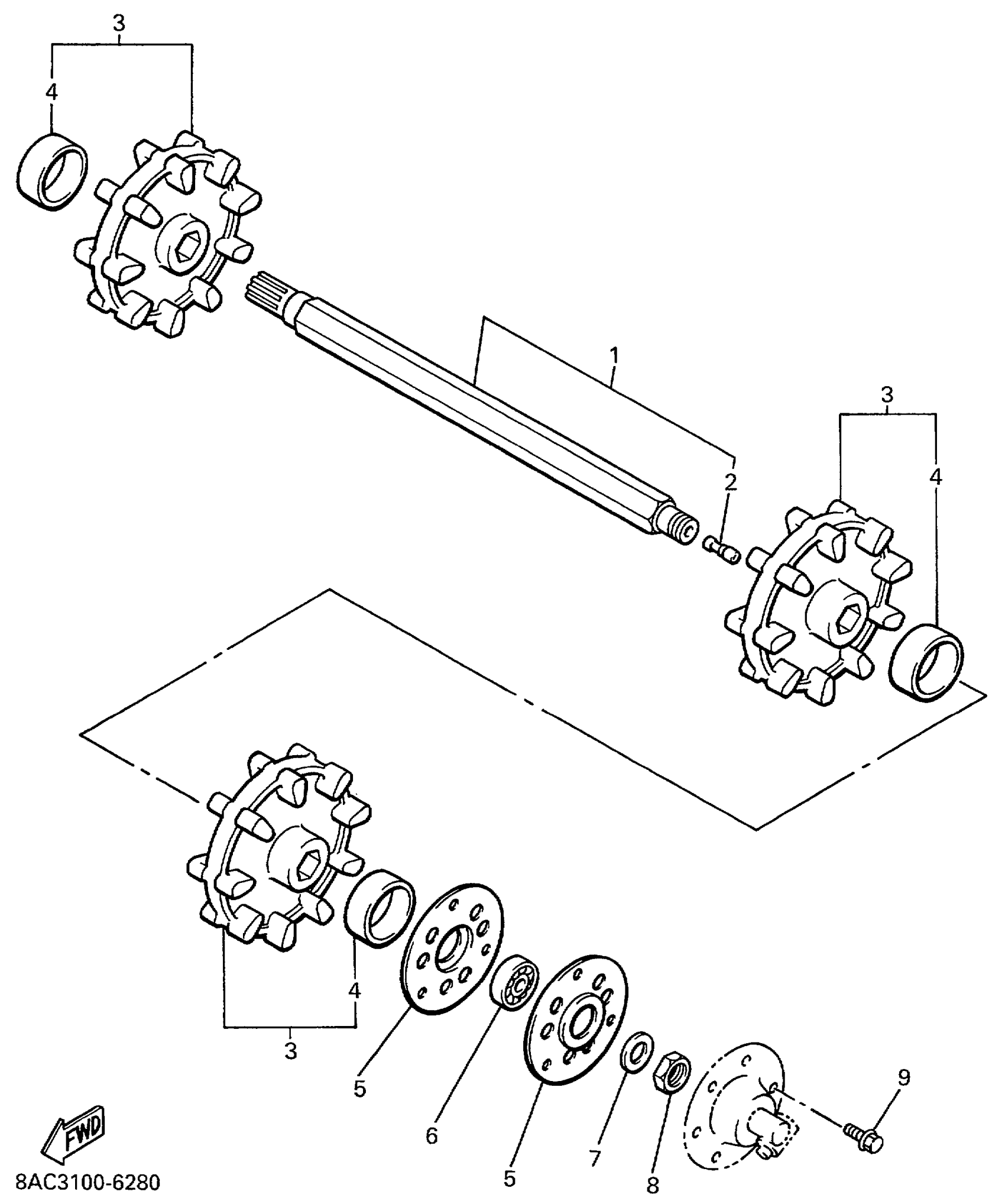

Yamaha VK540EC (VK540 III) 8AC6 1999 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

83R-W4751-10-00

$310.89

2

CONNECTOR

8K4-47577-00-00

$16.57

3

WHEEL, SPROCKET 1

83R-W4753-01-00

Unavailable

4

COLLAR(83R)

90387-514Y2-00

$11.23

5

HOUSING, FRONT AXLE

83R-47551-00-00

$34.46

6

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$36.14

7

WASHER, CONICAL SPRING(83R)

90208-25045-00

$12.88

8

NUT(83R)

90170-25367-00

$10.37

9

BOLT, FLANGE

95817-08014-00

$1.94
