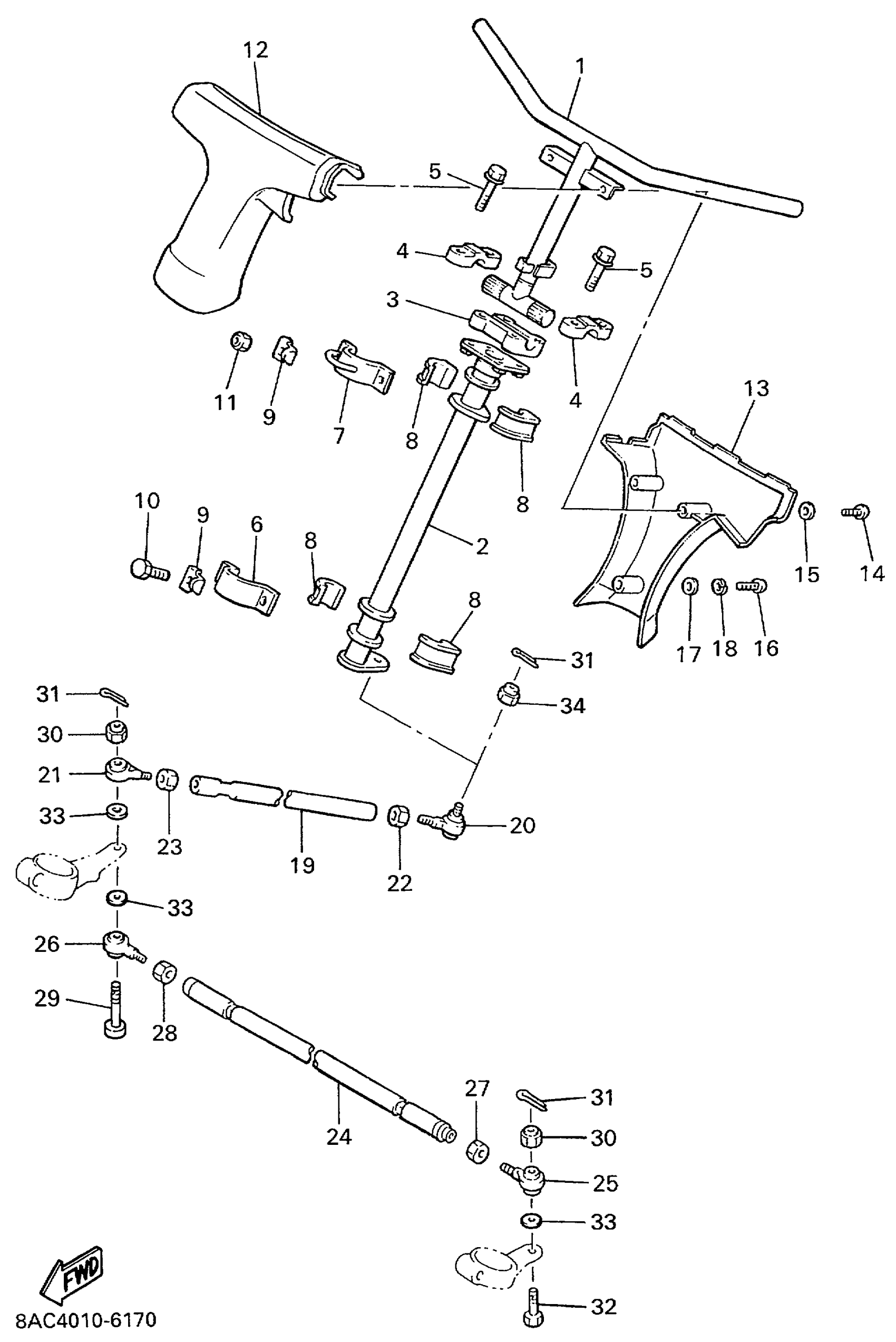

Yamaha VK540EC (VK540 III) 8AC6 1999 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

8AU-23811-00-00

Unavailable

2

COLUMN, STEERING 2

8AT-23813-01-00

$197.43

3

HANDLE, HOLDER

164-23441-01-98

$25.75

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

5

BOLT, FLANGE

95817-08055-00

$2.82

6

BRACKET, STEERING LOWER

84M-23868-00-00

$32.05

7

HOLDER, BEARING

84M-23872-00-00

$16.78

8

BEARING, STEERING

8F3-23812-00-00

$12.49

9

WASHER, LOCK 1

8AC-23894-01-00

$3.62

10

BOLT, HEXAGON

97017-08016-00

$6.20

11

NUT, NYLON

95717-08300-00

$2.57

12

PAD, STEERING

8W9-23815-00-00

$60.91

13

PAD,STEERING

88E-23817-00-00

Unavailable

14

SCREW, PAN HEAD

98517-05030-00

$7.92

15

WASHER(1RW)

92907-05600-00

$0.78

16

GASKET, EXHAUST

98507-05008-00

$2.69

17

WASHER, PLAIN LARGE

92907-05200-00

$4.09

18

WASHER(3SX)

92907-05100-00

$6.18

19

ROD, STEERING RELAY

8AT-23821-00-00

$22.77

20

JOINT, UNIVERSAL 1

86X-23841-00-00

$51.36

21

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

22

NUT (3WP1)

95317-10700-00

$6.17

23

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

24

ROD, TIE

8AT-23831-00-00

$59.74

25

JOINT, UNIVERSAL 2

87S-23845-01-00

$45.86

26

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

27

NUT (3WP1)

95317-10700-00

$6.17

28

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

29

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

$31.92

30

NUT, NYLON

95707-10300-00

$6.68

31

PIN, COTTER

91490-25020-00

$2.94

32

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

33

WASHER PLATE (3L6)

90201-08759-00

$2.52

34

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57
