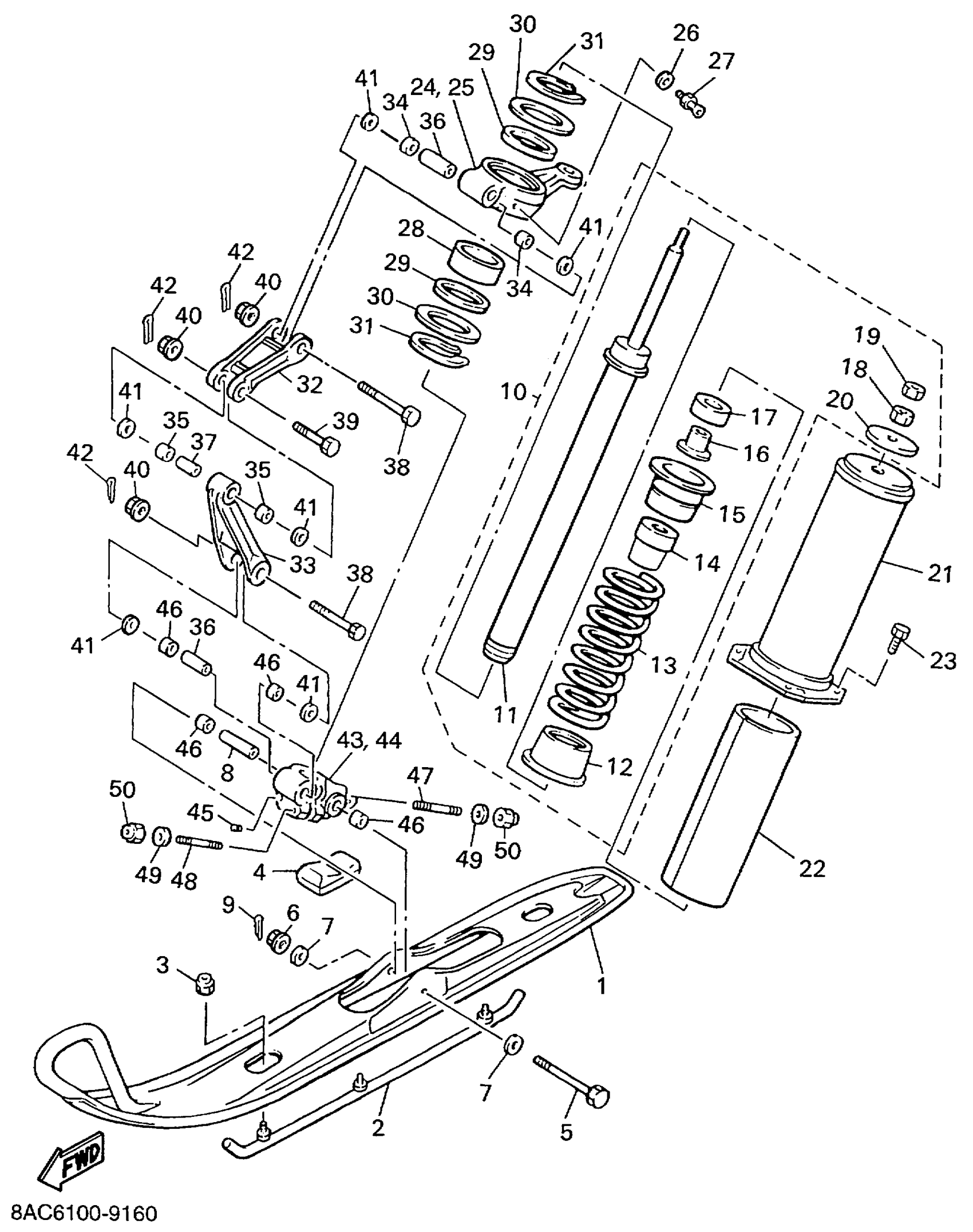

Yamaha VK540EC (VK540 III) 8AC6 1999 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8AT-23710-00-00

Unavailable

2

RUNNER 1

8AC-23731-01-00

Unavailable

3

NUT, SELF-LOCKING

90185-08169-00

$7.09

4

STOPPER 1

88T-23743-00-00

$19.77

5

BOLT, WITH HAUL (31A)

90102-10050-00

$16.75

6

NUT, NYLON

95707-10300-00

$6.68

7

WASHER (7A9)

90201-100F7-00

$6.38

8

COLLAR (8V0)

90387-106J3-00

$13.95

9

PIN, COTTER

91490-20025-00

$1.31

10

ABSORBER ASSY 1

8AC-2376A-00-00

$383.02

11

DAMPER SUB ASSY

8AT-22401-00-00

$316.63

12

SEAT, SPRING 2

82M-23777-00-00

$16.71

13

SPRING, COMPRESSION (8L9)

90501-75612-00

$38.49

14

BUMP, STOP

89L-22493-00-00

$50.17

15

PLATE, BACK UP

8AB-23788-00-00

Unavailable

16

COLLAR(82M)

90387-084R1-00

$12.29

17

WASHER

82M-23779-00-00

$12.78

18

. NUT

90170-08220-00

Unavailable

19

NUT(6TA)

95337-08600-00

$6.17

20

WASHER, PLATE(82M)

90201-080L1-00

$2.67

21

HOLDER, ABSORBER

8AT-2376J-00-00

$119.12

22

PROTECTOR

8L0-2376R-00-00

$6.58

23

BOLT, HEXAGON

97017-06020-00

$2.55

24

ARM, OUTSIDE 1

82M-23851-00-00

$108.65

25

ARM, OUTSIDE 2

8AT-23852-00-00

$172.94

26

WASHER, PLATE (8U7)

90201-067F9-00

$2.78

27

NIPPLE, GREASE

93700-06M03-00

$7.15

28

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

$33.18

29

OIL SEAL (8U7)

93109-53036-00

$10.34

30

WASHER, PLATE(8W1)

90201-535H6-00

$3.78

30

WASHER, PLATE (8L9)

90201-536A1-00

$3.66

31

CIRCLIP (8L9)

93410-52061-00

$10.51

32

ARM, FRONT 1

8L0-2382E-01-00

$35.28

33

ARM, FRONT 2

8L0-2382F-00-00

$36.58

34

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

35

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

$9.29

36

COLLAR(89A)

90387-101Y9-00

$20.45

37

COLLAR (8L0)

90387-100A4-00

$5.62

38

BOLT, WITH HOLE (8L0)

90102-10039-00

$10.38

39

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

$31.92

40

NUT, NYLON

95707-10300-00

$6.68

41

WASHER PLATE 626441260000

90202-14037-00

$6.68

42

PIN, COTTER

91490-20025-00

$1.31

43

BRACKET 1

84M-2376E-00-00

$259.32

44

BRACKET 2

84M-2377E-00-00

$339.69

45

BOLT, SET (8K2)

90113-06039-00

$6.97

46

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

47

BOLT, STUD 3

95617-08655-00

$4.34

48

BOLT, STUD 3

95617-08640-00

$3.98

49

WASHER(6TA)

92907-08600-00

$2.52

50

NUT, NYLON

95717-08300-00

$2.57
