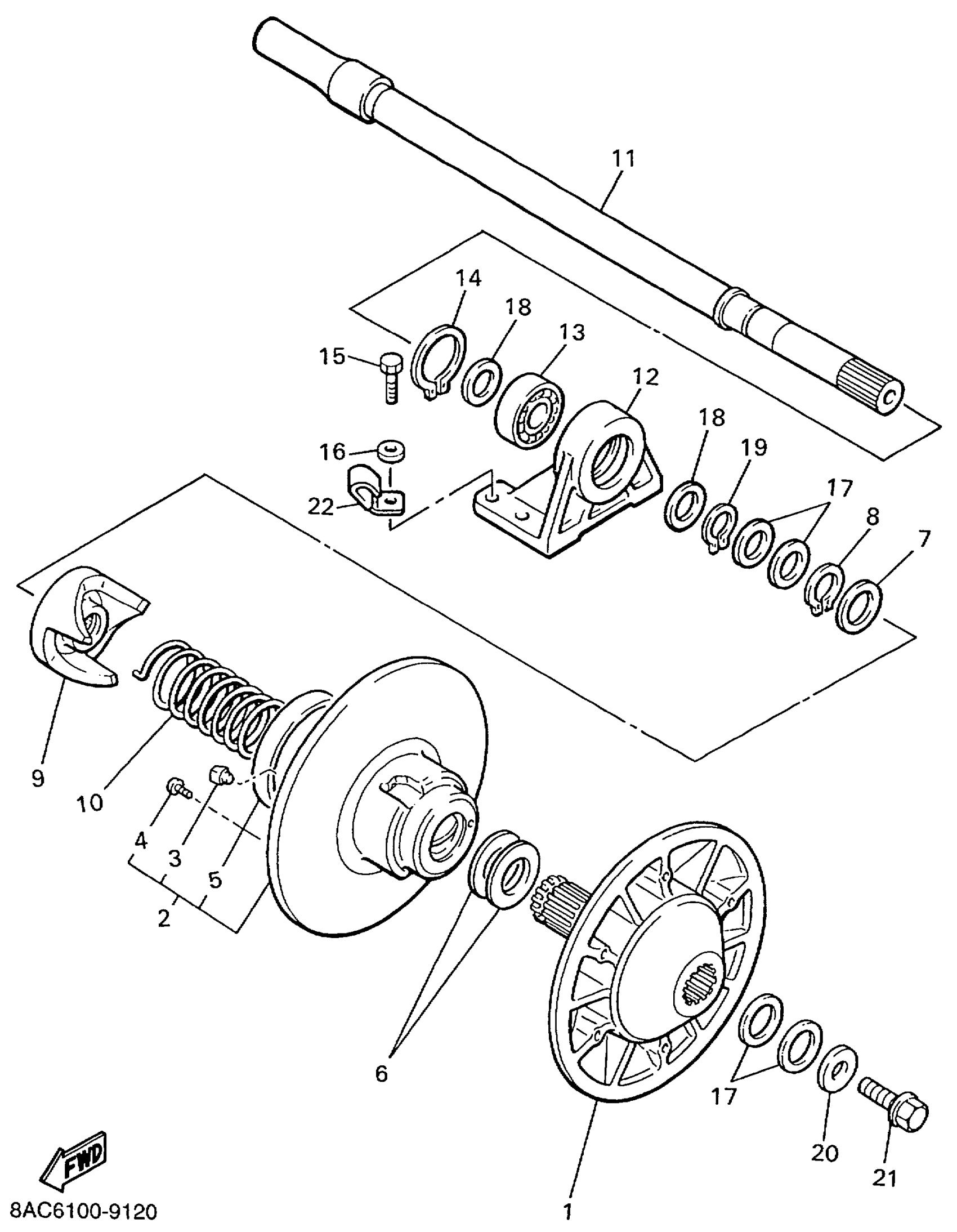

Yamaha VK540EC (VK540 III) 8AC6 1999 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SECONDARY SLIDING SHEAVE

8AT-17670-01-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$5.99

4

SCREW, BINDING

98907-06016-00

$6.79

5

BUSH, BIMETAL FORMED(81H)

90384-90081-00

$56.18

6

WASHER, PLATE (8U9)

90201-345G2-00

$10.20

7

WASHER, CLAW(88R)

90214-29060-00

$5.53

8

CIRCLIP(86F)

93440-34170-00

$6.53

9

SEAT, SECONDARY SPRING

8AT-17684-01-00

Unavailable

10

SPRING, TORSION(84M)

90508-50746-00

$16.05

11

SECONDARY SHAFT COMP.

88N-17680-02-00

$296.88

12

HOUSING, BEARING

88N-47631-00-00

$106.12

13

BEARING(83R)

93306-20582-00

$47.04

14

CIRCLIP(26H)

99009-52500-00

$10.23

15

BOLT, HEXAGON

97017-08020-00

$6.08

16

WASHER(6TA)

92907-08600-00

Unavailable

17

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

17

WASHER, PLATE (888)

90201-25526-00

Unavailable

17

WASHER, PLATE (888)

90201-25527-00

Unavailable

18

WASHER, PLATE(J38)

90201-257J2-00

Unavailable

19

CIRCLIP (256)

93410-25017-00

Unavailable

20

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

21

BOLT, FLANGE

95817-10020-00

Unavailable

22

CLAMP (706)

90465-06100-00

Unavailable
