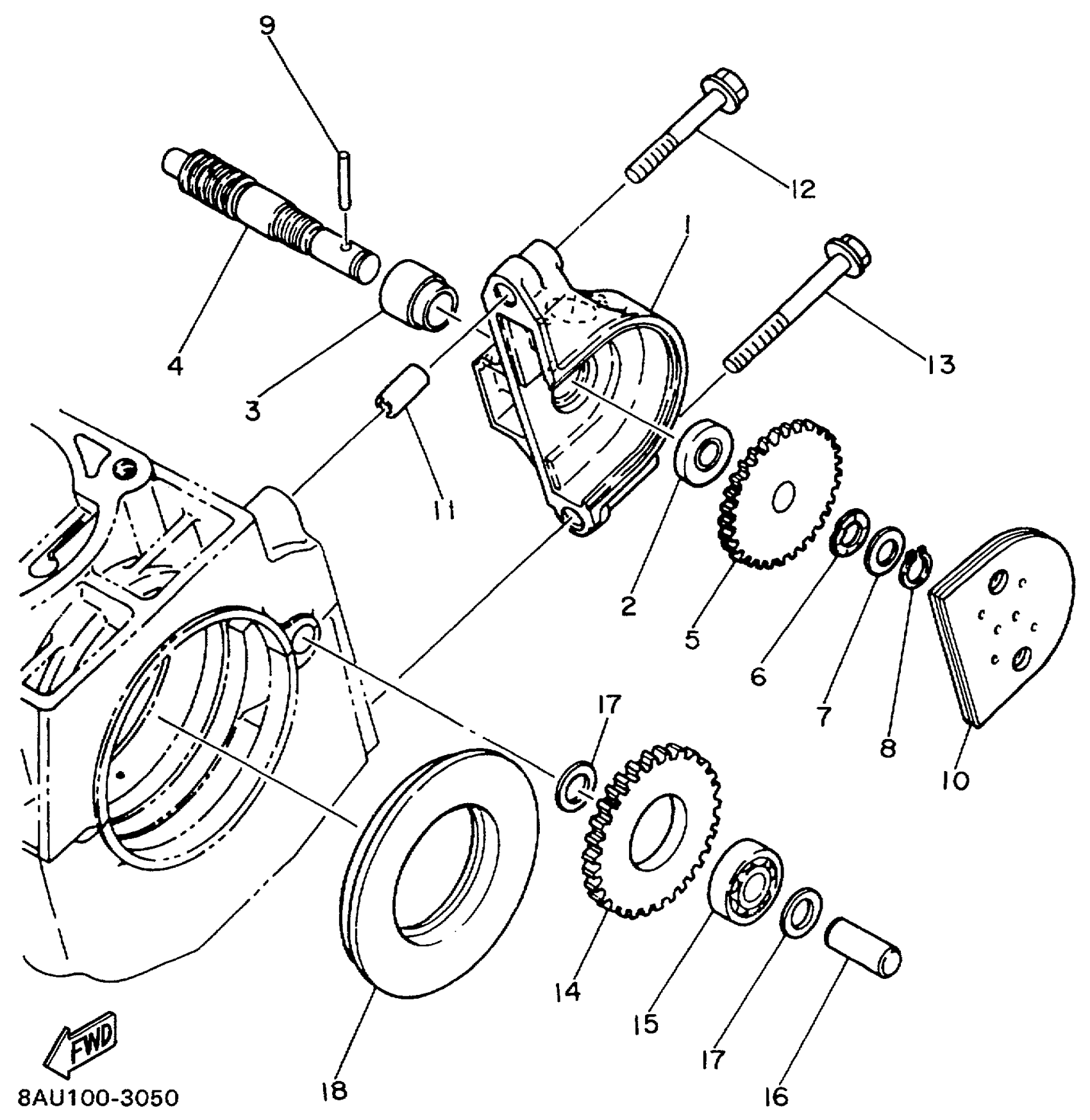

Yamaha VK540EC (VK540 III) 8AC6 1999 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

8AT-15416-00-00

$56.12

2

OIL SEAL (J10)

93101-10090-00

$6.17

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$6.33

4

SHAFT, WORM

866-13175-00-00

$28.00

5

GEAR, DRIVE 2

821-13188-00-00

$26.03

6

WASHER, WAVE (137)

90206-11016-00

$12.72

7

PLATE, CAM THRUST

137-13148-00-00

$3.28

8

CIRCLIP(10W)

99009-10400-00

$3.91

9

PIN,DOWEL (137)

93603-22028-00

$2.13

10

COVER, OIL PUMP 2

8K4-15426-00-00

Unavailable

11

PIN, DOWEL(3XW)

91808-16023-00

$5.48

12

BOLT, SMALL FLANGE

95027-06040-00

$2.48

13

BOLT, SMALL FLANGE

95027-06055-00

$1.74

14

GEAR, IDLE (34T)

8H8-13179-00-00

Unavailable

15

BRG,R-B 6000RS 32MM 30G KY

93306-00002-00

$29.35

16

SHAFT, IDLE GEAR

8G8-13342-00-00

Unavailable

17

WASHER, PLAIN(735)

90201-10119-00

$0.78

18

SEAL, GREASE

8K4-13119-00-00

Unavailable
