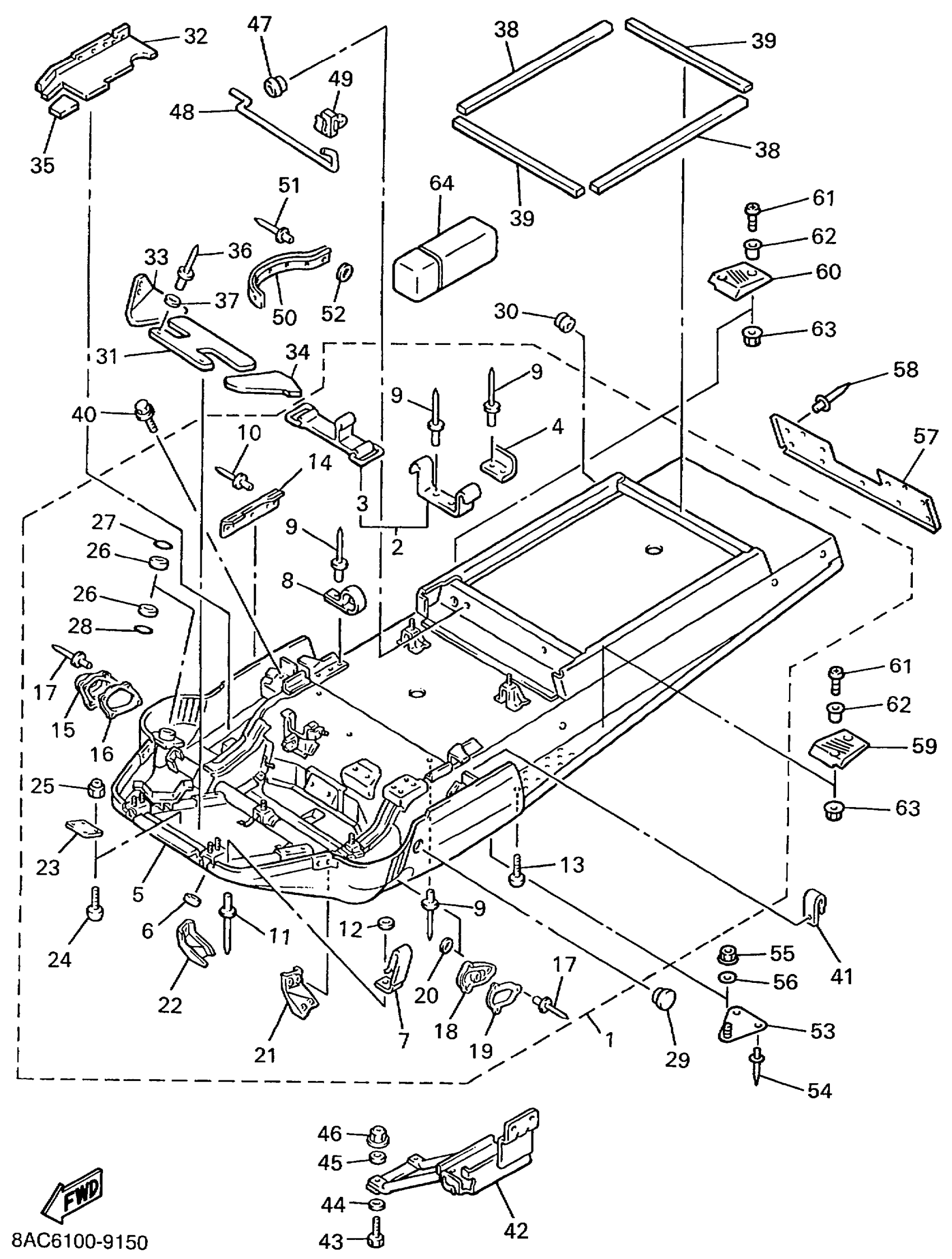

Yamaha VK540EC (VK540 III) 8AC6 1999 FRAME Diagram

#

Description
Price

1

FRAME COMP.

8AC-21910-00-00

$4,190.99

2

BRACKET, TOOL BOX FITTING

81E-21945-00-00

$18.51

3

BAND, BATTERY

4J2-82131-01-00

$24.15

4

BRACKET, TOOL BOX FITTING

83R-21955-00-00

$8.55

5

. PANEL, SUB FRAME 1

8AC-21912-00-00

$1,123.99

6

C0LLAR

90387-062M9-00

$6.60

7

CLAMP(51Y)

90465-08277-00

$9.43

8

CLAMP

90462-10236-00

$8.97

9

RIVET, BLIND

90267-48060-00

$2.00

10

RIVET, BLIND (8M6)

90267-48051-00

$1.88

11

RIVET, BLIND

90267-48018-00

Unavailable

12

WASHER, PLATE

90201-04027-00

$1.88

13

SCREW, BINDING

98907-06016-00

$7.14

14

PLATE, BACK UP

8AT-77527-01-00

$30.18

15

COVER, STEERING

8AT-23818-00-00

$110.09

16

WASHER 2

8AT-77526-00-00

$17.55

17

RIVET, BLIND

90267-40029-00

$6.68

18

COVER 1

8M6-2198F-00-00

$22.69

19

SPACER

8M6-21998-00-00

$3.05

20

WASHER, PLATE

90201-04027-00

$1.88

21

BRACKET, FRONT GUARD 3

8AT-2194Y-00-00

$69.17

22

BRACKET, FRONT GUARD 4

8AT-2195Y-00-00

$69.17

23

PANEL, SUB FRAME 6

89X-21917-00-00

$12.23

24

SCREW, BINDING

98907-05014-00

$6.52

25

NUT, NYLON

95707-05300-00

$2.74

26

BUSH, BIMETAL FORMED (8M6)

90384-36134-00

$9.68

27

OIL SEAL (8M6)

93102-36232-00

$9.51

28

OIL SEAL (8M6)

93103-36117-00

$20.31

29

PLUG (8H8)

90338-44093-00

$13.91

30

GROMMET (438)

90480-15061-00

$6.68

31

DAMPER, NOISE 11

8AT-77271-00-00

$40.63

32

DAMPER, NOISE 12

8AC-77272-00-00

$70.94

33

DAMPER, NOISE 13

8AT-77273-10-00

$54.89

34

DAMPER, NOISE 14

8AT-77274-00-00

$42.26

35

DAMPER, NOISE 15

8AT-77275-00-00

$7.34

36

RIVET, BLIND

90267-48018-00

Unavailable

37

WASHER, PLATE

90201-04027-00

$1.88

38

TAPE 1

83R-7717E-00-00

$4.54

39

TAPE 1

83R-7717E-00-00

$4.54

40

BOLT, FLANGE

95817-06012-00

$1.49

41

CLAMP(4MX)

90465-06376-00

$7.08

42

BRACKET, BATTERY

8AT-2199G-01-00

$132.57

43

BOLT, HEXAGON

97017-06025-00

$2.98

44

WASHER, PLATE (8K2)

90201-06778-00

$3.69

45

WASHER, PLATE (4F4)

90201-063A5-00

$6.88

46

NUT, NYLON

95707-06300-00

$3.20

47

GROMMET (22F)

90480-10348-00

$1.49

48

STAY, SEAT

85R-2471A-00-00

$28.00

49

HOLDER, 2

85R-2639F-00-00

$1.95

50

TRIM 1

8AT-2196T-00-00

$45.48

51

RIVET, BLIND(8AC)

90267-40172-00

$1.54

52

WASHER, PLATE

90201-042E0-00

$6.38

53

COVER 2

8AC-2198G-00-00

$19.28

54

RIVET, BLIND(8CR)

90267-47186-00

$2.31

55

NUT, NYLON

95707-06300-00

$3.20

56

WASHER, PLATE (4X4)

90201-067A0-00

$6.68

57

REINFORCEMENT, FRAME REAR 2

8AC-21933-00-00

$91.20

58

RIVET, BLIND(8CR)

90267-47186-00

$2.31

59

FOOTREST, REAR 1

88T-27431-10-00

$23.57

60

FOOTREST, REAR 2

88T-27441-10-00

$23.57

61

SCREW, BINDING

98907-06025-00

$6.18

62

COLLAR

90387-06158-00

$6.17

63

NUT, FLANGE(4MV)

95707-06500-00

$0.78

64

TOOL KIT

85L-28100-01-00

$70.22
