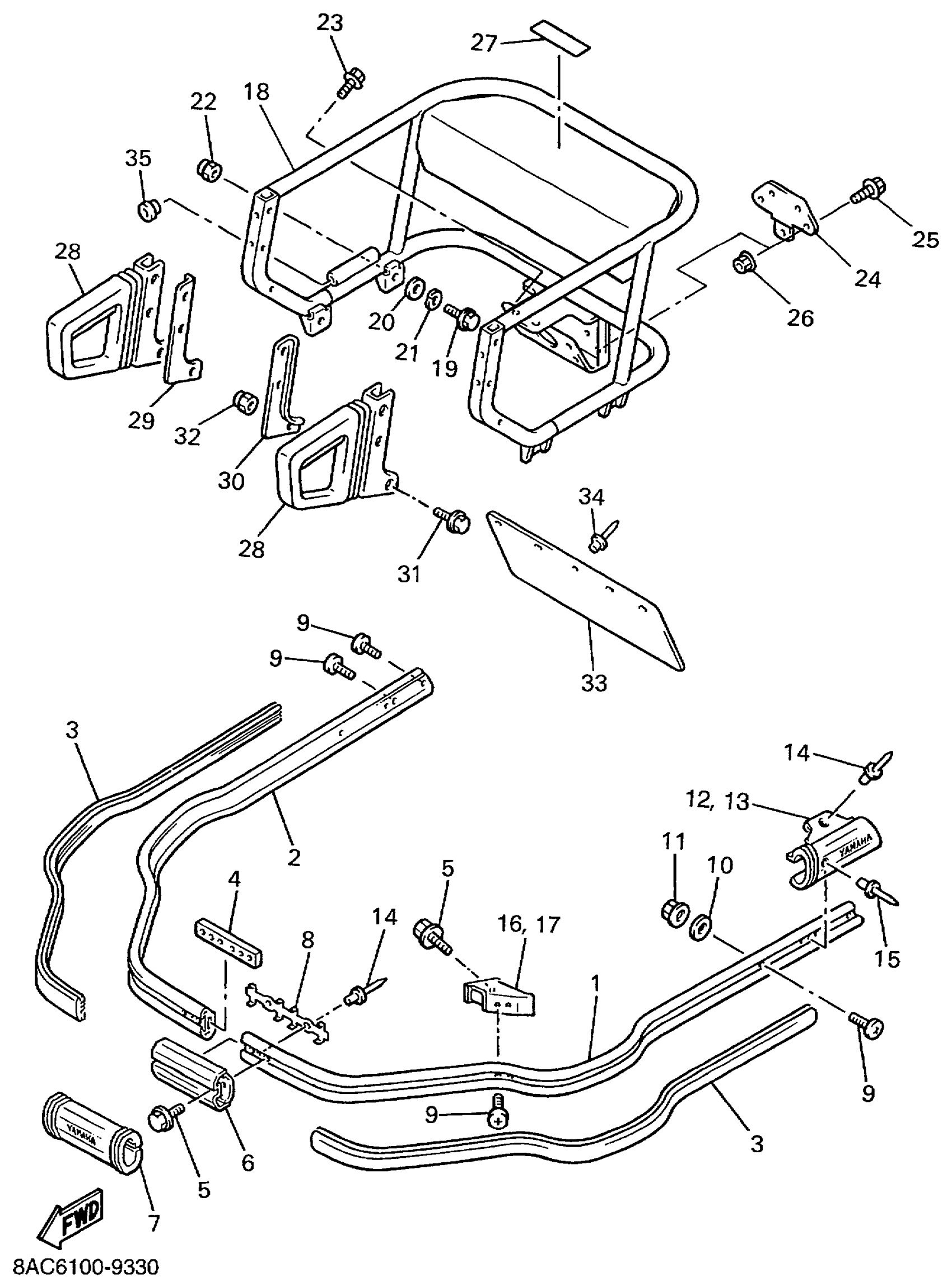

Yamaha VK540EC (VK540 III) 8AC6 1999 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8AT-77511-01-00

$333.20

2

BUMPER, FRONT 2

8AT-77512-01-00

$333.20

3

BUSH, RUBBER 2

8AT-77516-00-00

$28.48

4

SPACER, BUMPER

8AT-77529-00-00

Unavailable

5

BOLT WASHER BASED (1J7)

90105-08066-00

$6.82

6

PROTECTOR 2

8AT-77552-00-00

$60.65

7

PROTECTOR 1

8AT-77551-01-00

$132.60

8

PROTECTOR 3

8AT-77553-00-00

$24.95

9

BOLT, BUTTON

92017-08020-00

$5.86

10

WASHER(6TC)

92907-08200-00

$6.18

11

NUT(6TA)

95337-08600-00

$6.17

12

STOPPER, 1

8AT-77521-00-00

Unavailable

13

STOPPER 2

8AT-77522-00-00

Unavailable

14

RIVET, BLIND

90267-48018-00

Unavailable

15

RIVET, BLIND (J45)

90267-48149-00

Unavailable

16

END, BUMPER

8AT-77523-00-00

$52.68

17

END, BUMPER

8AT-77524-00-00

$52.68

18

REAR BUMPER COMP.

8AC-77540-00-00

$584.99

19

BOLT, FLANGE

95817-08014-00

$1.94

20

WASHER(6TC)

92907-08200-00

$6.18

21

WASHER(JN5)

92907-08100-00

$5.98

22

NUT, CAP

95307-08800-00

Unavailable

23

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

24

BRACKET, HITCH 2

84R-77592-00-00

$32.00

25

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

26

NUT, SELF-LOCKING

90185-08169-00

$7.09

27

EMBLEM

89X-24897-00-00

Unavailable

28

GRIP, ASSIST 1

8X0-77571-00-00

$170.71

29

WASHER 1

8X0-77525-00-00

Unavailable

30

WASHER 2

8X0-77526-00-00

Unavailable

31

BOLT, FLANGE

95817-08040-00

$5.43

32

NUT, CROWN(82U)

90176-08063-00

$5.75

33

FLAP

83R-77595-00-00

$157.15

34

RIVET, BLIND (8R6)

90267-48086-00

$3.49

35

GROMMET (8L1)

90480-15268-00

$20.82
