Description

Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

CLAMP(8AT)

90462-10209-00

Unavailable

3

SCREW, BINDING

98907-06010-00

$1.65

4

BODY, CAP

8LU-21771-00-00

$31.99

5

GASKET, TANK (867)

90430-31003-00

$10.49

6

PIPE, JOINT

801-24376-00-00

Unavailable

7

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

8

CLIP (7K7)

90467-11044-00

$8.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

11

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

13

TUBE,FLEXIBLE VINYL(8AU)

91A30-07016-00

$1.49

14

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

COLLAR(50M)

90387-087L0-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

19

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

20

CLAMP

90464-16061-00

Unavailable

21

CLIP (8L2)

90467-08017-00

Unavailable

22

PROTECTOR, PIPE

84M-24327-00-00

Unavailable

23

DAMPER

8AT-21747-00-00

Unavailable

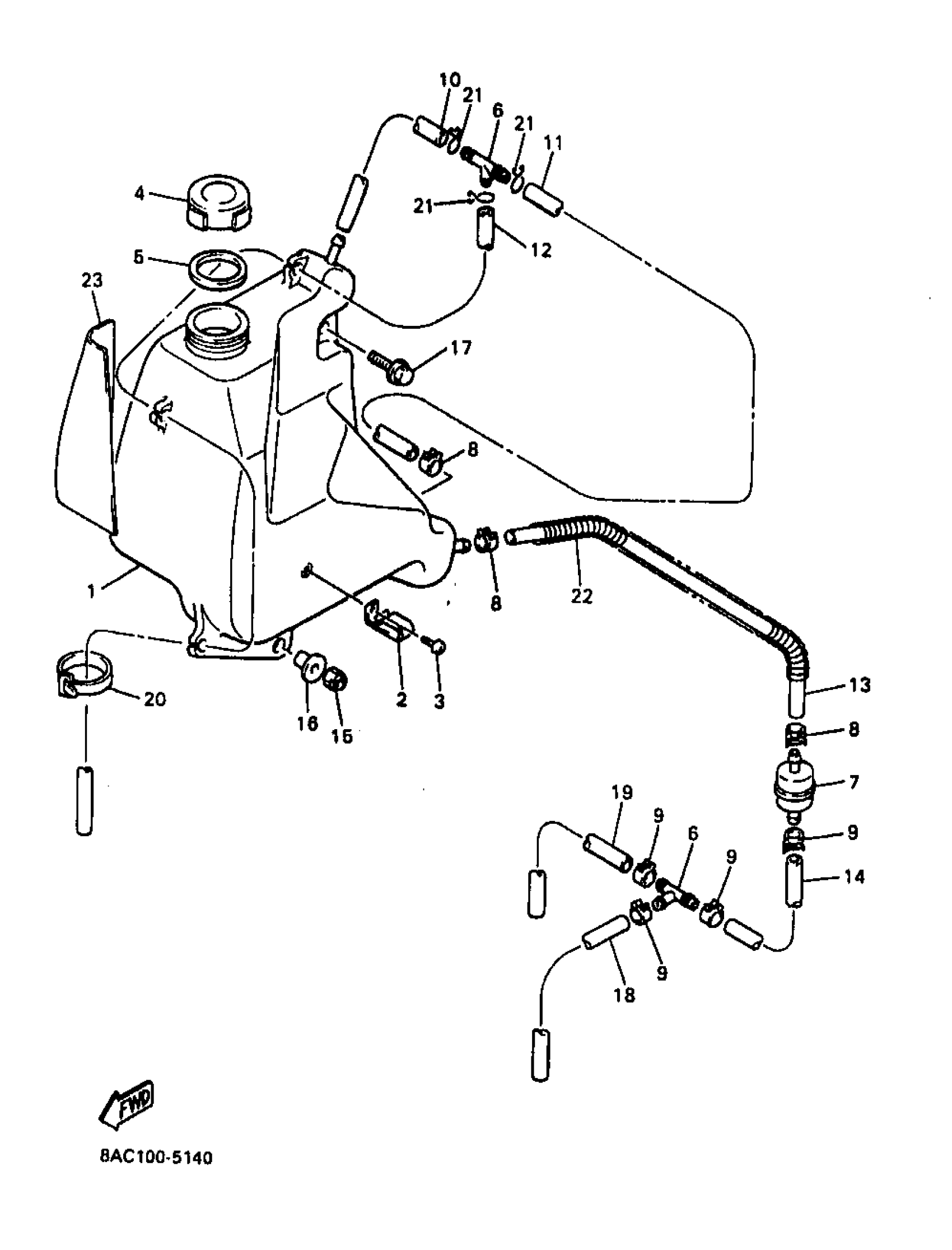

Yamaha VK540EB (VK540 II) 1998 OIL TANK Diagram

TANK, OIL

CLAMP(8AT)

SCREW, BINDING

BODY, CAP

GASKET, TANK (867)

PIPE, JOINT

HOUSING STRAINER ASSY

CLIP (7K7)

CLIP (8A1)

TUBE, FLEXIBLE VINYL(8AK)

TUBE, FLEXIBLE VINYL(8AT)

TUBE, FLEXIBLE VINYL(8AT)

TUBE,FLEXIBLE VINYL(8AU)

TUBE, FLEXIBLE VINYL(8AK)

NUT, SELF-LOCKING

COLLAR(50M)

BOLT, FLANGE

TUBE,FLEXIBLE VINYL(85R)

TUBE,FLEXIBLE VINYL(85R)

CLAMP

CLIP (8L2)

PROTECTOR, PIPE

DAMPER
