Description

Price

1

SPEEDOMETER ASSY

87R-83510-40-00

Unavailable

2

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

4

DAMPER, METER

8G6-83523-00-00

Unavailable

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

TRIP METER CABLE ASSY

8K1-83603-01-00

Unavailable

8

TACHOMETER CABLE ASSY

8H4-83560-00-00

$64.99

9

METER GEAR HOUSING COMP

83R-47700-00-00

Unavailable

10

JOINT

8K4-47715-00-00

$5.60

11

TACHOMETER ASSY

85L-83540-00-00

$335.99

12

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

SOCKET CORD ASSY

85L-83509-00-00

Unavailable

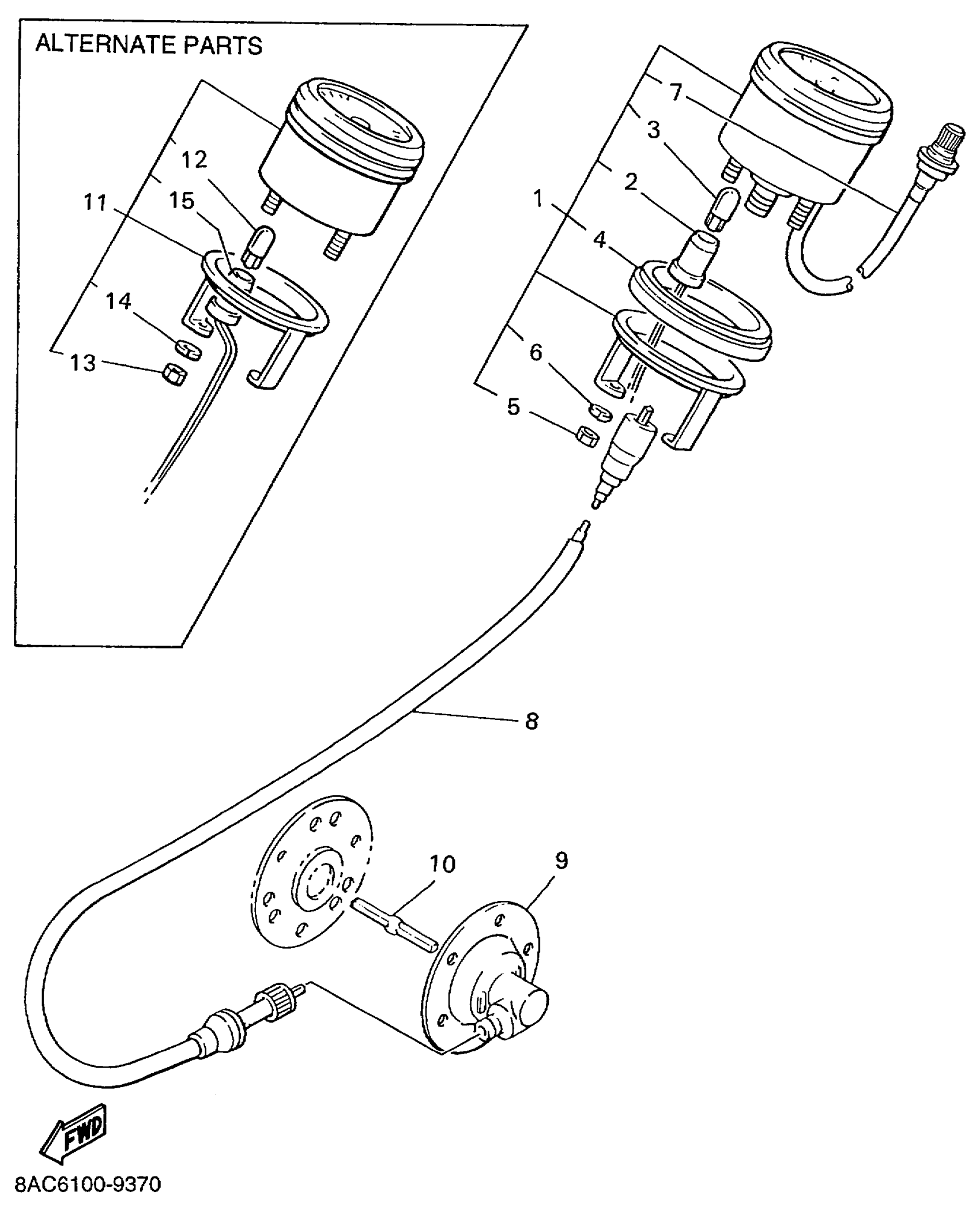

Yamaha VK540EB (VK540 II) 1998 METER Diagram

SPEEDOMETER ASSY

SOCKET CORD ASSY

BULB, MTR.12V3.4W

DAMPER, METER

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

TRIP METER CABLE ASSY

TACHOMETER CABLE ASSY

METER GEAR HOUSING COMP

JOINT

TACHOMETER ASSY

BULB, MTR.12V3.4W

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

SOCKET CORD ASSY
