1998 Yamaha VK540 II (VK540EB) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1998 Yamaha VK540 II (VK540EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

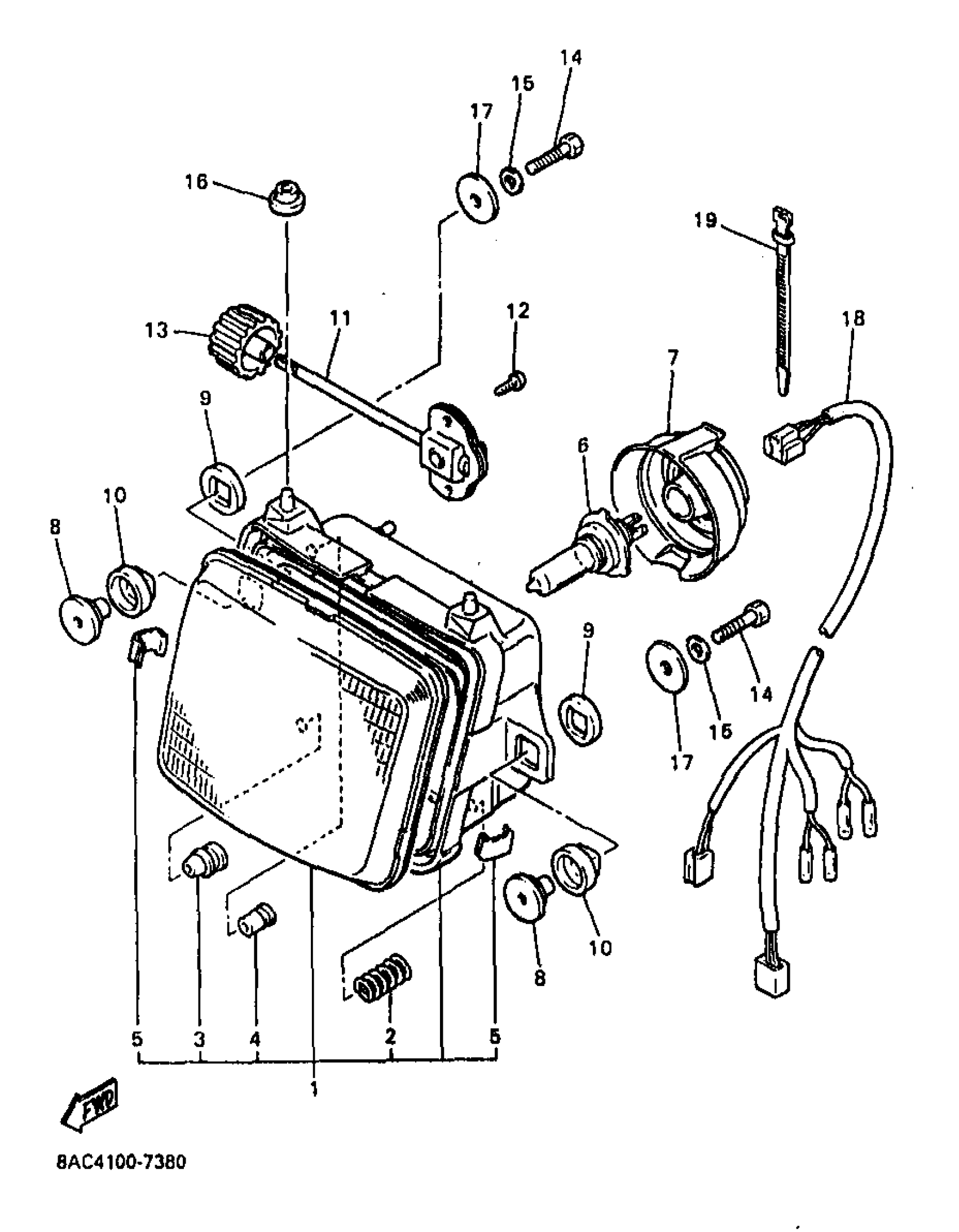

1998 Yamaha VK540 II (VK540EB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

84R-8430A-A0-00

—

$177.78

In stock

2

. SPRING, SCREW

51L-84332-00-00

1

$3.38

In stock

3

HOLDER

3AJ-8431U-00-00

1
Out of stock

4

. NUT, ADJUSTING

51L-84334-00-00

1
Out of stock

5

. SPRING, REFLECTOR

36Y-84324-00-00

1
Out of stock

6

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

7

COVER, SOCKET

36Y-84397-00-00

—
Out of stock

8

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

9

DAMPER, HEAD LAMP B

498-84164-60-00

1

$5.93

In stock

10

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

11

GEAR UNIT ASSY

83R-8430M-00-00

—

$28.00

In stock

12

SCREW, TAPPING(4HP)

97707-40616-00

1

$1.23

In stock

13

KNOB ASSY

26H-8432M-00-00

—
Out of stock

14

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

15

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

16

GROMMET

36Y-84354-00-00

—
Out of stock

17

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

18

CORD, HEADLIGHT

8AT-84359-00-00

—

$42.85

In stock

19

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
